Why Choose the ABB UZB624 UK600 Wall Box with Grips 2-Row RAL 9016?

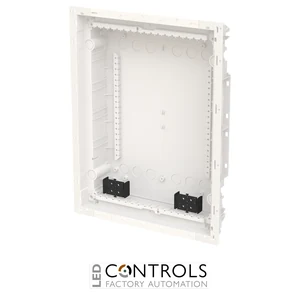

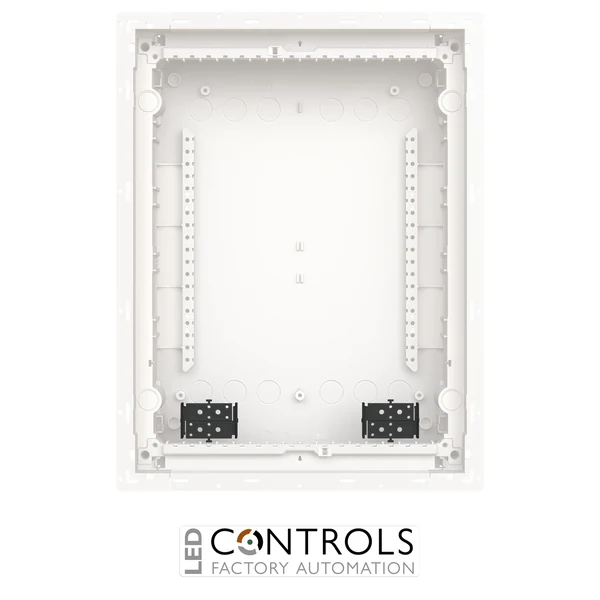

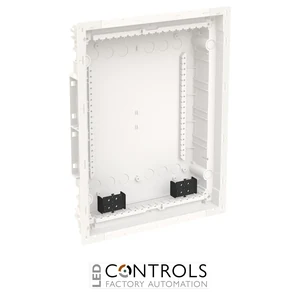

The ABB UZB624, manufacturer order code 2CPX031114R9999, is a purpose-designed two-row recessed wall box with integrated wall grips for compatible ABB UK600 electrical distribution enclosures. Developed for the ABB UK62 series, this enclosure component provides a practical foundation for flush-mounted electrical distribution boards in residential, commercial and building services installations.
Manufactured from torsion-resistant, impact-resistant, flame-retardant and low-halogen plastic, the ABB UZB624 combines structural durability with installation-friendly features. Its integrated wall grips help secure the box within suitable wall openings, while the internal cable-management provisions support neat and accessible wiring arrangements.
Designed for two-row UK600 consumer unit configurations, the UZB624 accommodates the enclosure format used for 24 modular positions when assembled with the appropriate internal components. Measuring 363 mm wide × 472 mm high × 90 mm deep, it provides generous wiring space while retaining the practical recessed mounting characteristics of the ABB UK600 system.
The wall box incorporates an integrated cable-retaining and strain-relief comb, preformed cable-entry positions and a removable cable-entry slider with terminal support. These features make the UZB624 a practical choice for professional installers seeking reliable enclosure mounting, organised cable routing and compatibility with ABB UK600 distribution board accessories.
Key Advantages
- Purpose-designed recessed wall box for ABB UK600 electrical distribution enclosures.
- Two-row configuration suitable for compatible ABB UK62 series consumer units.
- Supports 24-module distribution board arrangements when assembled with the appropriate internal components.
- Integrated wall grips assist with secure installation in suitable wall structures.
- Torsion-resistant plastic construction helps maintain enclosure stability.
- Impact-resistant material provides durability during installation and service.
- Flame-retardant, low-halogen plastic supports professional electrical enclosure applications.
- Generous internal wiring space facilitates organised conductor routing.
- Integrated cable-retaining and strain-relief comb helps manage incoming cables.
- Preformed side and rear cable-entry positions offer installation flexibility.
- Removable cable-entry slider provides convenient access during wiring.
- Integrated terminal support accommodates compatible terminal arrangements.
- Designed for use with matching ABB UK600 covers, device supports and trim frames.
- Suitable for new electrical installations and compatible enclosure refurbishment projects.
Key Features
- ABB UK600 electrical distribution enclosure system.
- UZB624 wall box with integrated wall grips.
- ABB manufacturer order code: 2CPX031114R9999.
- Compatible enclosure family: ABB UK62 series.
- Two-row mounting configuration.
- 24-module nominal enclosure arrangement.
- Plastic housing construction.
- Torsion-resistant and impact-resistant material.
- Flame-retardant, low-halogen construction.
- Integrated wall-fixing grips.
- 363 mm overall width.
- 472 mm overall height.
- 90 mm overall depth.
- Integrated cable-retaining and strain-relief comb.
- Preformed cable-entry openings at the sides and rear.
- Removable cable-entry slider for easier cable installation.
- Integrated terminal mounting provision.
- Designed for practical cable routing and convenient installation.
- Suitable for compatible flush-mounted ABB UK600 consumer unit assemblies.
- Supplied as a wall box component for completion with suitable ABB accessories.
Reliable Wall Mounting and Cable Management for Two-Row UK600 Consumer Units
A correctly installed recessed wall box provides the structural foundation for a safe and organised electrical distribution assembly. The ABB UZB624 is designed to form the housing component of compatible two-row UK62 consumer units, providing the mounting space and cable-entry arrangements required for professional electrical installation work.
The ABB UK600 enclosure system uses a modular approach, allowing suitable wall boxes, internal device supports, protective covers, terminal accessories and front assemblies to be combined according to the required installation. The UZB624 supports this approach by providing a dedicated wall box with integrated wall grips and a housing size matched to the UK62 enclosure format.
Its torsion-resistant and impact-resistant plastic construction helps the enclosure retain its intended shape during installation and normal service. The flame-retardant, low-halogen material provides characteristics suited to the requirements of electrical distribution enclosure applications.
Cable management is an important feature of the UZB624. The integrated cable-retaining and strain-relief comb helps installers arrange incoming conductors, while generous preformed cable-entry positions at the sides and rear provide flexibility when planning wiring routes. The removable cable-entry slider includes an integrated terminal mounting provision and is designed for convenient handling during installation.
The UZB624 is an enclosure housing component rather than a complete consumer unit. Compatible electrical covers, device supports, terminal arrangements, trim frames and doors must be selected as required for the finished assembly. The final degree of protection and electrical performance depend on the correctly specified and assembled distribution board.
Typical Applications
- ABB UK62 series two-row consumer unit installations.
- Compatible 24-module electrical distribution board assemblies.
- Residential flush-mounted distribution enclosures.
- Commercial building electrical distribution systems.
- Apartment and housing development electrical installations.
- Office and workplace consumer unit installations.
- Building services electrical infrastructure.
- Electrical panel building and distribution board assembly.
- Recessed wall installations requiring integrated fixing grips.
- Distribution board refurbishment and replacement projects.
- Professional electrical installation and maintenance work.
- Installations requiring practical cable-entry and internal wiring arrangements.
