Why Choose the ABB UZB636 UK600 Wall Box with Grips?

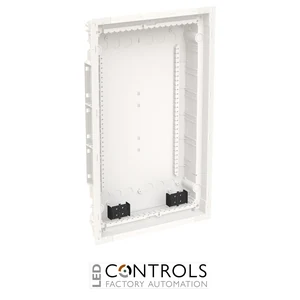

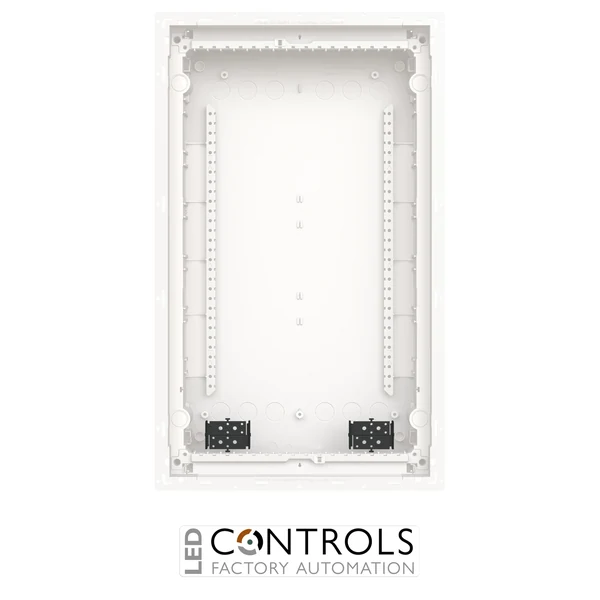

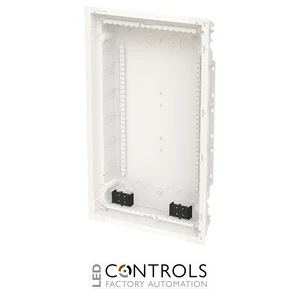

The ABB UZB636 (ABB order code 2CPX031115R9999) is a purpose-designed three-row recessed wall box with mounting grips for ABB UK600 electrical distribution enclosures. Manufactured within the ABB / STRIEBEL & JOHN enclosure range, this robust installation accessory provides the recessed housing required for compatible UK63 series distribution boards, supporting secure installation and organised electrical wiring in residential and commercial buildings.
Constructed from rigid, impact-resistant, flame-retardant and low-halogen plastic, the UZB636 is engineered to provide a durable foundation for flush-mounted electrical distribution assemblies. Its integrated wall mounting grips help secure the box within a suitable wall opening, while the spacious internal arrangement provides practical room for cable routing and the installation of compatible distribution board components.
Designed for three-row ABB UK600 configurations with a nominal capacity of 36 DIN modules, the UZB636 incorporates an integrated cable-retaining and strain-relief comb, additional preformed cable-entry positions and a removable cable-entry slider. With a nominal housing height of 597 mm, depth of 90 mm and a white finish, it offers a practical solution for new electrical installations, enclosure replacements and distribution board refurbishment projects.
Key Advantages
- Purpose-designed recessed wall box for ABB UK600 three-row electrical distribution enclosures.
- Compatible with ABB UK63 series assemblies, supporting coordinated installation using matching enclosure components.
- Integrated wall mounting grips provide a secure fixing arrangement for suitable recessed wall installations.
- 36-module nominal capacity when combined with the appropriate three-row UK600 equipment assembly.
- Rigid, break-resistant plastic construction provides a durable housing for electrical distribution applications.
- Flame-retardant, low-halogen material supports professional electrical installation requirements.
- Generous internal wiring space helps installers organise incoming and outgoing cables.
- Integrated cable-retaining and strain-relief comb supports neat cable management.
- Additional preformed cable-entry positions on the sides and rear provide flexible cable-routing options.
- Removable cable-entry slider simplifies cable access during installation.
- Integrated terminal mounting provisions support compatible ABB UK600 connection accessories.
- Suitable for new installations, replacement work and electrical distribution board refurbishment.
Key Features
- ABB UK600 enclosure system for recessed electrical distribution installations.
- UZB636 wall box with integrated mounting grips.
- Three-row configuration for compatible UK63 distribution assemblies.
- 36 nominal DIN-module positions in the completed compatible arrangement.
- Recessed / flush-mounted installation within a suitable wall opening.
- White plastic housing designed for integration with the UK600 system.
- Rigid, torsion-resistant construction for installation stability.
- Break-resistant and flame-retardant plastic material.
- Low-halogen material composition.
- Integrated wall fixing grips for secure mounting.
- Built-in cable-retaining and strain-relief comb for organised wiring.
- Preformed cable-entry locations on the sides and rear of the wall box.
- Removable cable-entry slider designed for convenient one-handed operation.
- Integrated terminal mounting ribs for compatible connection accessories.
- 90 mm nominal enclosure depth for recessed installation.
- Designed for use with separately selected ABB UK600 device supports, covers, frames and doors.
Secure Recessed Mounting and Flexible Cable Management
The ABB UZB636 UK600 wall box forms the recessed housing for compatible three-row electrical distribution assemblies. Rather than serving as a complete consumer unit on its own, it provides the structural installation space into which the appropriate ABB UK600 equipment carrier, protective cover, frame, door and electrical connection components can be fitted.
Its integrated wall mounting grips are designed to help position and secure the enclosure within a suitable wall opening. The rigid plastic construction provides stability during installation, while the internal space allows installers to organise wiring around the distribution equipment. The completed installation should follow ABB's mounting instructions and the requirements of the wall construction.
Cable management is a particular strength of the UZB636. An integrated cable-retaining and strain-relief comb supports neat cable routing, while additional preformed cable-entry positions are provided on the sides and rear. The removable cable-entry slider is designed for convenient handling, and integrated mounting ribs provide installation options for compatible terminal accessories.
The three-row UK63 configuration supports a nominal 36-module electrical distribution arrangement when the appropriate equipment support and modular components are installed. This makes the UZB636 suitable for distribution boards containing compatible miniature circuit breakers, residual current protection devices, isolators and other modular equipment, subject to the design of the completed assembly.
The ABB UZB636 is supplied as a wall box component, not as a complete distribution board. A matching frame and door, protective cover, device support, terminal equipment and circuit protection devices must be selected separately where required. Any IP protection rating for the finished installation must be determined from the correctly assembled combination of compatible components rather than from the empty wall box alone.
Typical Applications
- ABB UK63 three-row recessed electrical distribution assemblies.
- Residential consumer unit and distribution board installations.
- Commercial building electrical distribution systems.
- Flush-mounted electrical distribution boards in suitable internal walls.
- New-build residential electrical installations.
- Apartment buildings and housing developments.
- Office and workplace electrical distribution installations.
- Electrical distribution board replacement and refurbishment.
- Utility rooms and indoor electrical service areas.
- Building services and facilities management projects.
- Distribution assemblies requiring organised cable-entry provisions.
- Electrical installations using compatible ABB UK600 frames, doors and equipment supports.
- Professional electrical contracting and panel assembly projects.
- Recessed distribution boards requiring three rows of modular electrical equipment.
