Why Choose the ABB UZB648 UK600 Wall Box with Grips?

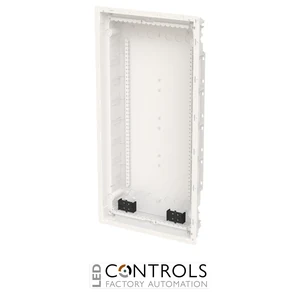

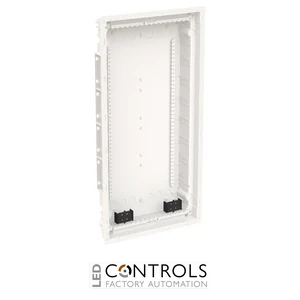

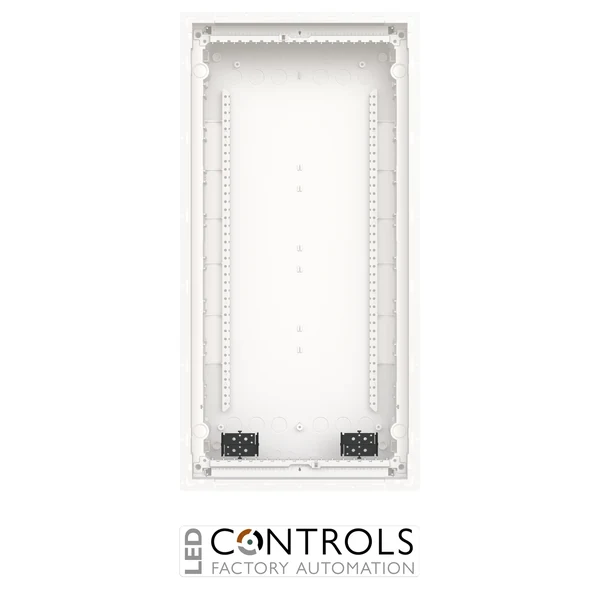

The ABB UZB648 (ABB order code 2CPX031116R9999) is a robust four-row recessed wall box with mounting grips, designed for compatible ABB UK600 electrical distribution enclosures. Manufactured within the ABB / STRIEBEL & JOHN range, this installation component provides a secure housing for building flush-mounted electrical distribution assemblies in residential and commercial properties.
Designed for ABB UK64 series distribution enclosures, the UZB648 supports a nominal 48-module, four-row configuration when combined with the appropriate equipment support and distribution board components. Its rigid, break-resistant, flame-retardant and low-halogen plastic construction provides a durable installation housing, while the integrated wall grips help secure the box within a suitable recessed wall opening.
Measuring 722 × 363 × 90 mm (H × W × D), the ABB UZB648 provides generous internal wiring space and practical cable-management features. An integrated cable-retaining and strain-relief comb, preformed side and rear cable-entry positions, and removable cable-entry sliders help installers organise incoming and outgoing conductors. Its white housing, identified by the supplied product designation as RAL 9016, forms part of the coordinated ABB UK600 enclosure system.
Key Advantages
- Purpose-designed recessed wall box for ABB UK600 four-row electrical distribution assemblies.
- Compatible with ABB UK64 series enclosures for a coordinated installation.
- 48-module nominal capacity when used with the appropriate four-row UK600 equipment assembly.
- Integrated wall mounting grips help secure the housing within a suitable wall opening.
- Rigid, torsion-resistant plastic construction provides a stable installation foundation.
- Break-resistant and flame-retardant material supports professional electrical installation requirements.
- Low-halogen plastic composition offers an additional material characteristic for specification purposes.
- Generous internal wiring space helps accommodate organised cable routing.
- Integrated cable-retaining and strain-relief comb assists with cable management.
- Preformed cable-entry positions provide flexible wiring access from the sides and rear.
- Removable cable-entry sliders simplify cable installation and handling.
- Integrated terminal mounting provisions support compatible connection accessories.
- Suitable for new-build installations, electrical refurbishment and distribution board replacement projects.
Key Features
- ABB UK600 enclosure system for recessed electrical distribution installations.
- UZB648 wall box with mounting grips.
- Four-row configuration for compatible UK64 distribution assemblies.
- Nominal 48 DIN-module capacity in the completed compatible arrangement.
- 12 nominal module positions per row when fitted with the appropriate equipment assembly.
- Flush-mounted installation within a suitable wall opening.
- White plastic housing identified as RAL 9016 in the product designation.
- Rigid, torsion-resistant and break-resistant construction.
- Flame-retardant, low-halogen plastic material.
- Integrated wall fixing grips for secure installation.
- Built-in cable-retaining and strain-relief comb.
- Preformed cable-entry positions on the sides and rear wall.
- Removable cable-entry sliders with integrated terminal mounting provisions.
- One-handed cable-entry slider operation for installation convenience.
- 90 mm nominal depth for recessed distribution board installations.
- Designed for separately selected ABB UK600 covers, device supports, frames, doors and electrical accessories.
Secure Recessed Mounting and Organised Cable Management
The ABB UZB648 UK600 wall box provides the recessed housing for compatible four-row electrical distribution assemblies. It forms the installation foundation for a modular distribution board, allowing the appropriate ABB UK600 equipment support, protective cover, frame, door and electrical accessories to be fitted according to the required configuration.
Its integrated wall mounting grips help secure the housing within a suitable wall opening. The rigid plastic construction is designed to resist twisting and breakage during normal installation handling, while the enclosure's generous wiring space supports organised routing of incoming supply and outgoing circuit cables.
The UZB648 incorporates an integrated cable-retaining and strain-relief comb to assist with cable organisation. Additional preformed cable-entry positions are located on the sides and rear of the wall box. Removable cable-entry sliders with integrated terminal mounting provisions provide further flexibility when preparing the enclosure for electrical wiring.
When combined with the appropriate ABB UK64 equipment assembly, the four-row configuration supports a nominal 48 DIN-module arrangement. This provides installation capacity for compatible miniature circuit breakers, residual current protection devices, isolators and other modular electrical equipment, subject to the layout and electrical design of the completed distribution board.
The ABB UZB648 is a wall box component rather than a complete consumer unit. The frame and door, equipment support, protective cover, DIN rails, terminal assemblies and circuit protection devices must be selected separately as required. Any ingress protection rating for the completed installation depends on the correctly assembled combination of compatible ABB UK600 components.
Typical Applications
- ABB UK64 four-row recessed electrical distribution assemblies.
- Residential consumer unit and distribution board installations.
- Commercial building electrical distribution systems.
- Flush-mounted distribution boards in suitable internal walls.
- New-build housing and residential developments.
- Apartment buildings and multi-unit residential properties.
- Office and workplace electrical distribution installations.
- Electrical distribution board replacement and refurbishment.
- Utility rooms and indoor electrical service areas.
- Building services and facilities management projects.
- Distribution assemblies requiring organised cable-entry facilities.
- Electrical installations using compatible ABB UK600 frames, doors and device supports.
- Professional electrical contracting and distribution board assembly projects.
- Recessed distribution boards requiring four rows of modular electrical equipment.
