Why Choose the ABB UZG624 DIN Rail / Device Insert 2R?
The ABB UZG624 is a durable and practical two-row DIN rail and device insert assembly designed for mounting modular electrical equipment inside compatible ABB UK600 distribution enclosures. As part of the ABB UK600 enclosure series, this device carrier provides a reliable internal mounting structure for electrical distribution components in residential, commercial and building services installations.

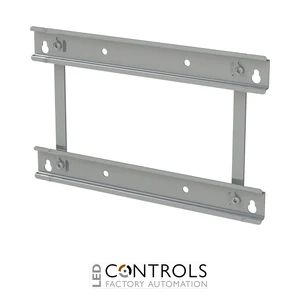

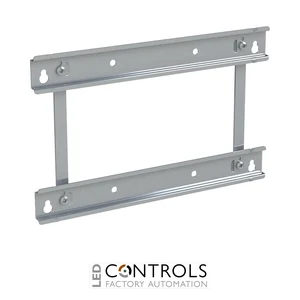

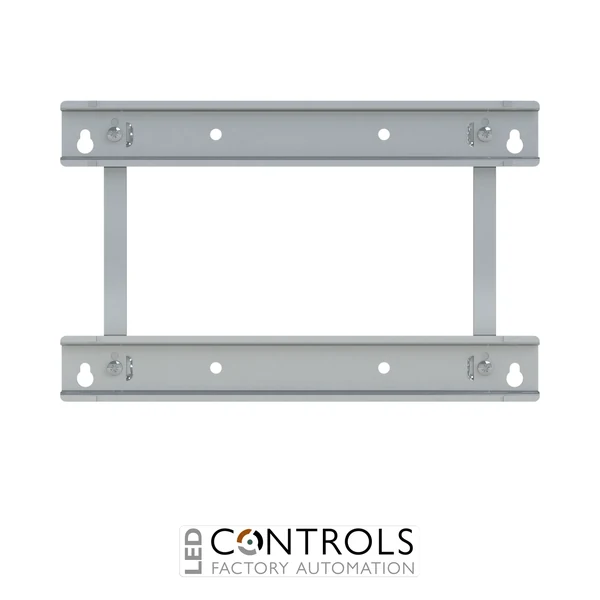

The UZG624 features a solid metal DIN rail frame with removable DIN rails, providing a convenient arrangement for installing and organising modular electrical devices. Its integrated keyhole mounting points support straightforward positioning and installation, helping reduce assembly time while maintaining a secure mounting structure within the enclosure.
Designed specifically for ABB UK62 series enclosures, the UZG624 provides two mounting rows with a total capacity of 24 DIN module positions. With compact dimensions of 160 mm high, 255 mm wide and 16 mm deep, this device insert is suitable for building organised electrical distribution assemblies where efficient use of enclosure space and convenient component installation are important.
Key Advantages
- Designed specifically for ABB UK62 series distribution enclosures.
- Two-row DIN rail arrangement provides organised mounting space for modular electrical equipment.
- 24 DIN module positions accommodate compatible modular installation devices.
- Solid metal frame construction provides a robust internal mounting structure.
- Removable DIN rails offer flexibility during electrical assembly and installation.
- Integrated keyhole mounting points support convenient positioning and fitting.
- Compact construction helps maximise usable space within compatible enclosures.
- Genuine ABB UK600 enclosure accessory designed for coordinated electrical distribution installations.
Key Features
- ABB UK600 enclosure series.
- UZG624 DIN rail / device insert.
- Two-row (2R) mounting configuration.
- 24 DIN module positions across two rows.
- Solid metal DIN rail carrier frame.
- Removable DIN rails for convenient device installation.
- Keyhole mounting arrangement for straightforward fitting.
- 255 mm overall width.
- 160 mm overall height.
- 16 mm overall depth.
- 0.26 kg net weight.
- Designed for compatible ABB UK62 enclosure configurations.
Reliable DIN Rail Mounting for Electrical Distribution Systems
DIN rail mounting systems provide a standardised method for securing modular electrical components within distribution boards and control enclosures. Devices such as miniature circuit breakers, residual current devices, terminal blocks and other compatible DIN-mounted equipment can be organised along mounting rails to create accessible and structured electrical assemblies.
The ABB UZG624 DIN rail device insert is designed to support this arrangement within the ABB UK600 enclosure system. Its two-row metal carrier frame, removable DIN rails and convenient fixing arrangement help installers assemble and maintain electrical distribution equipment efficiently. The UK600 enclosure range is developed for flexible residential and commercial installations, making the UZG624 a practical component for compatible UK62 distribution board configurations.
Typical Applications
- ABB UK62 electrical distribution enclosure assemblies.
- Residential consumer units and electrical distribution boards.
- Commercial building electrical distribution systems.
- Mounting miniature circuit breakers and compatible modular protection devices.
- Installation of DIN rail terminal blocks and electrical accessories.
- Building services electrical installations.
- Electrical distribution board assembly and refurbishment.
- Organised mounting of modular electrical equipment within compatible enclosures.
