Why Choose the ABB UZG636 DIN Rail Device Insert 3R?
The ABB UZG636 is a robust and practical three-row DIN rail device insert designed for mounting modular electrical equipment inside compatible ABB UK600 distribution enclosures. As part of the ABB UK600 enclosure series, this device carrier provides a dependable internal mounting structure for electrical distribution components in residential, commercial and building services installations.

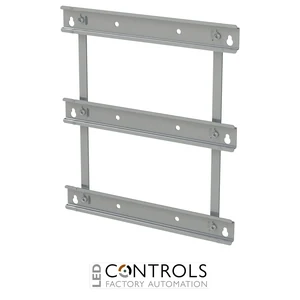

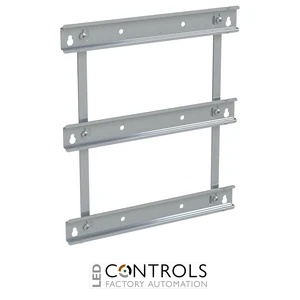

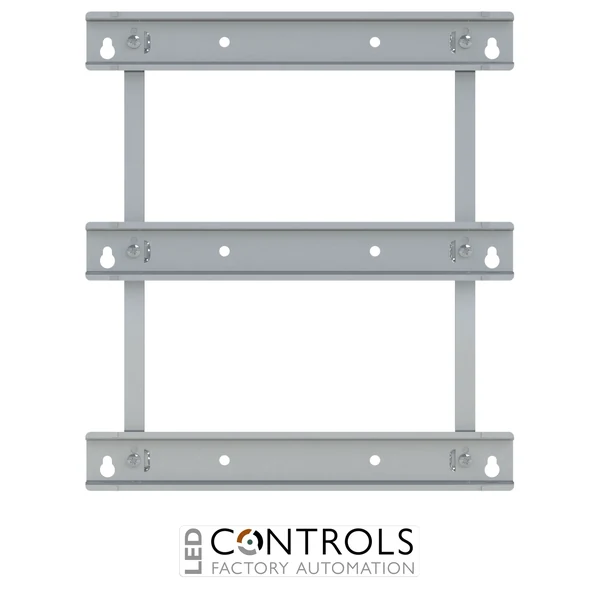

The UZG636 features a solid metal device carrier with removable DIN rails, allowing convenient installation and organisation of modular electrical devices. Its integrated keyhole mounting arrangement enables straightforward positioning and secure fitting, helping reduce installation time while providing a stable mounting structure within the enclosure.
Designed specifically for ABB UK63 series enclosures, the UZG636 provides three mounting rows with a total capacity of 36 DIN module positions. With dimensions of 285 mm high, 255 mm wide and 16 mm deep, this DIN rail insert is suitable for organised electrical distribution assemblies where efficient use of enclosure space and convenient component installation are important.
Key Advantages
- Designed specifically for ABB UK63 series distribution enclosures.
- Three-row DIN rail arrangement provides organised mounting space for modular electrical equipment.
- 36 DIN module positions accommodate compatible modular installation devices.
- Solid metal frame construction provides a robust internal mounting structure.
- Removable DIN rails offer flexibility during electrical assembly and installation.
- Integrated keyhole mounting points support quick and convenient installation.
- Compact design helps maximise usable mounting space within compatible enclosures.
- Genuine ABB UK600 enclosure accessory designed for coordinated electrical distribution installations.
Key Features
- ABB UK600 enclosure series.
- UZG636 DIN rail device insert.
- Three-row (3R) mounting configuration.
- 36 DIN module positions across three rows.
- Solid metal DIN rail carrier frame.
- Removable DIN rails for convenient device installation and assembly.
- Keyhole mounting arrangement for straightforward fitting.
- 255 mm overall width.
- 285 mm overall height.
- 16 mm overall depth.
- 0.403 kg net weight.
- Designed for compatible ABB UK63 enclosure configurations.
Reliable DIN Rail Mounting for Electrical Distribution Systems
DIN rail mounting systems provide a standardised method for securing modular electrical components within distribution boards and electrical enclosures. Devices such as miniature circuit breakers, residual current devices, terminal blocks and other compatible DIN-mounted equipment can be organised along mounting rails to create accessible and structured electrical assemblies.
The ABB UZG636 DIN rail device insert supports this arrangement within the ABB UK600 enclosure system. Its three-row steel carrier frame, removable DIN rails and convenient keyhole fixing arrangement help electrical installers assemble and maintain distribution equipment efficiently. Designed for compatible UK63 enclosures, the UZG636 provides a practical mounting solution for installations requiring up to 36 DIN module positions.
Typical Applications
- ABB UK63 electrical distribution enclosure assemblies.
- Residential consumer units and electrical distribution boards.
- Commercial building electrical distribution systems.
- Mounting miniature circuit breakers and compatible modular protection devices.
- Installation of DIN rail terminal blocks and electrical accessories.
- Building services electrical installations.
- Electrical distribution board assembly and refurbishment.
- Organised mounting of modular electrical equipment within compatible enclosures.
