Why Choose the ABB UZG660 DIN Rail / Device Insert 5R?

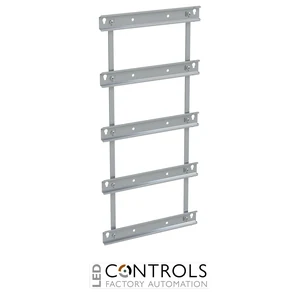

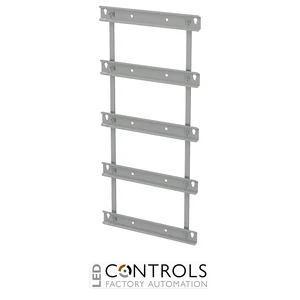

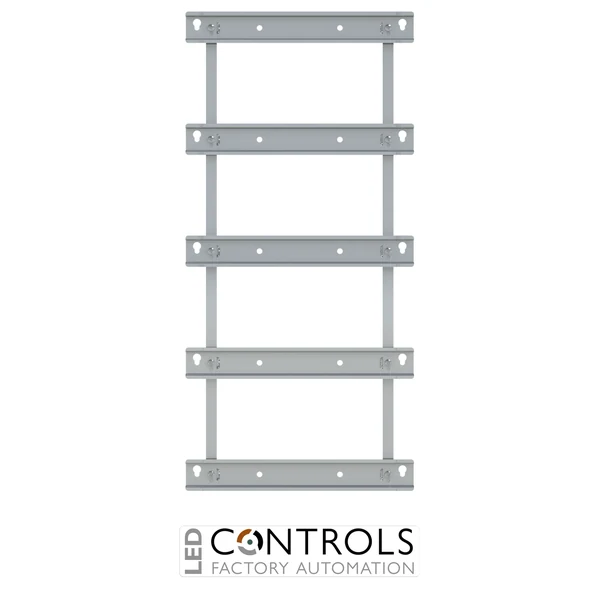

The ABB UZG660 (2CPX031122R9999) is a robust five-row DIN rail and device mounting insert designed for ABB UK600 electrical distribution enclosures. As part of the ABB UK600 enclosure accessories range, this metal device carrier provides a practical and reliable mounting solution for modular electrical equipment within compatible UK66 distribution boards.
Manufactured from durable steel, the UZG660 features a solid metal support frame with removable DIN rails, allowing electrical installers to assemble, position and maintain modular equipment efficiently. Its integrated keyhole mounting arrangement supports quick and straightforward installation within compatible enclosures, helping reduce assembly time and simplify electrical distribution board construction.
With overall dimensions of 535 mm high, 255 mm wide and 16 mm deep, the ABB UZG660 is specifically designed for compatible ABB UK66 five-row distribution enclosures. Its 60-module configuration provides mounting capacity for standard modular electrical installation devices, making it suitable for circuit protection equipment, DIN rail accessories and other compatible electrical distribution components.
Key Advantages
- Genuine ABB UK600 DIN rail and device mounting insert for electrical distribution enclosures.
- Five-row configuration designed for compatible ABB UK66 distribution boards.
- 60-module mounting capacity for modular electrical installation equipment.
- Robust steel device support frame provides a stable mounting structure.
- Removable DIN rails simplify assembly, device installation and maintenance.
- Keyhole mounting system supports quick and convenient installation.
- Compact 535 mm x 255 mm x 16 mm dimensions for integration into compatible enclosures.
- Supports organised installation of circuit protection and modular electrical equipment.
- Designed for integration with the ABB UK600 modular enclosure system.
Key Features
- ABB UK600 enclosure accessories series.
- UZG660 five-row DIN rail and device insert.
- Manufacturer order code: 2CPX031122R9999.
- Compatible with ABB UK66 enclosures.
- Five device mounting rows.
- 60 modular installation spaces.
- Durable steel mounting chassis.
- Removable top-hat DIN rails for modular electrical equipment.
- Keyhole fixing arrangement for straightforward installation.
- 535 mm overall height.
- 255 mm overall width.
- 16 mm overall depth.
- 0.685 kg net weight for convenient handling.
- Designed for internal installation within compatible UK600 electrical distribution enclosures.
- Suitable for replacement, refurbishment and new distribution board assemblies.
Reliable DIN Rail Mounting for Electrical Distribution Systems
DIN rail mounting systems provide a standardised method for installing modular electrical devices within distribution boards and control enclosures. The ABB UZG660 DIN rail and device insert provides a stable internal mounting structure for compatible UK66 enclosures, allowing miniature circuit breakers, residual current devices, modular control equipment and other suitable components to be arranged across five mounting rows. Its removable DIN rails offer additional flexibility during assembly, wiring and maintenance.
The ABB UK600 enclosure system is designed to support flexible and organised electrical distribution installations in residential and commercial buildings. The UZG660 incorporates a robust metal device carrier and practical keyhole mounting technology, helping electrical contractors and panel builders achieve efficient installation and secure positioning of modular equipment. Its dedicated five-row design provides compatibility with the corresponding UK66 enclosure format, while the removable DIN rail arrangement supports convenient servicing and replacement.
Typical Applications
- ABB UK66 five-row electrical distribution enclosures.
- Residential consumer unit and distribution board assemblies.
- Commercial building electrical distribution systems.
- DIN rail mounting of compatible miniature circuit breakers and residual current devices.
- Installation of modular electrical control and protection equipment.
- Recessed electrical distribution board construction.
- Electrical panel assembly and professional installation projects.
- Maintenance and refurbishment of ABB UK600 distribution enclosures.
- Replacement of compatible five-row DIN rail device mounting inserts.
