Why Choose the ABB UZA624 UK600 Two-Row Cover with Screws?

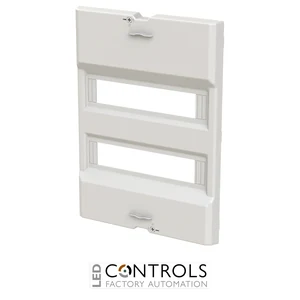

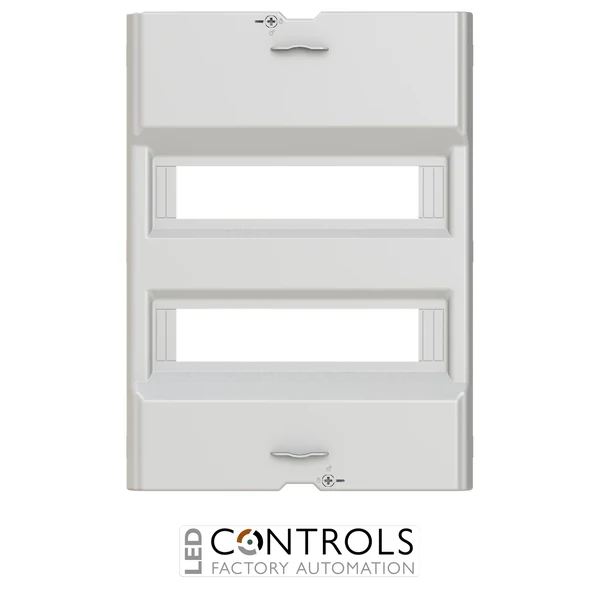

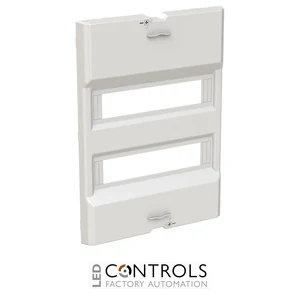

The ABB UZA624, manufacturer order code 2CPX031124R9999, is a genuine two-row internal device cover designed for compatible ABB UK600 electrical distribution enclosures. Finished in RAL 9016 white, this practical accessory provides a neat, protective front covering for modular electrical equipment installed within the UK600 enclosure system.
Designed specifically for ABB UK62 two-row enclosures, the UZA624 provides 24 standard modular positions, arranged across two rows of 12 modules. Its numbered device openings are designed for compatible modular equipment, with each opening extendable from 12 to 14 modular positions where the enclosure configuration permits. This makes the cover suitable for organising miniature circuit breakers, residual current devices, isolators and other compatible DIN rail-mounted equipment.
The ABB UZA624 uses 90° quick-action fastening screws for straightforward fitting and removal during installation or maintenance. Its sealable construction supports tamper-evident access arrangements, while the durable plastic body offers a lightweight internal covering solution. Measuring 306 mm wide, 421 mm high and 34 mm deep, the UZA624 is a purpose-designed replacement or installation accessory for professional ABB UK600 distribution assemblies.
Key Advantages
- Designed for ABB UK62 enclosures within the UK600 electrical distribution range.
- Two-row configuration provides a coordinated internal covering for modular equipment.
- 24-module standard capacity accommodates two rows of 12 modular positions.
- Expandable device openings allow up to 14 modular positions per row where suitable.
- 90° quick-action screws support convenient fitting and removal.
- Sealable cover design allows tamper-evident arrangements where required.
- Numbered device openings assist with circuit identification and organisation.
- IP2XC protection classification supports protection against contact with internal electrical parts when correctly installed.
- RAL 9016 white finish coordinates with compatible ABB UK600 components.
- Lightweight plastic construction makes the cover practical to handle during installation.
- Genuine ABB replacement accessory supports maintenance and refurbishment of compatible distribution boards.
Key Features
- ABB UK600 enclosure accessory range.
- Manufacturer model: UZA624.
- ABB order code: 2CPX031124R9999.
- Internal modular device cover for compatible UK62 enclosures.
- Two-row arrangement with 12 standard modular positions per row.
- 24 modular positions in the standard configuration.
- 45 mm-high numbered device openings.
- Expandable openings for up to 14 modular positions per row.
- 90° quick-action screw fastening for convenient access.
- Sealable as standard for suitable tamper-evident arrangements.
- Opaque plastic construction with a white finish.
- RAL 9016 colour specification.
- IP2XC protection classification.
- Non-hinged design intended as an internal equipment cover.
- Supplied as one cover accessory, not a complete electrical enclosure.
Organised Internal Protection for Two-Row UK600 Distribution Boards
A properly fitted internal device cover helps create an organised electrical distribution assembly by providing defined openings for the operating fronts of compatible modular devices while covering the wiring and components behind them. The ABB UZA624 is designed for the UK62 two-row enclosure format, offering 24 standard modular positions across two numbered device openings. Each opening can be extended from 12 to 14 positions where the enclosure and equipment arrangement allow, giving installers additional flexibility when configuring circuit protection equipment.
The cover's 90° quick-action screw fastening system makes it convenient to remove and refit during installation, inspection or maintenance. Its sealable construction also allows suitable tamper-evident arrangements where required. The UZA624 is an internal cover accessory rather than an external door or complete electrical enclosure. Its IP2XC classification applies to the cover's specified protective function and should not be confused with the ingress protection rating of the completed enclosure assembly. Installers should verify compatibility, use suitable blanking pieces for unused device openings and follow applicable electrical installation requirements.
Typical Applications
- ABB UK62 two-row electrical distribution enclosures.
- Residential consumer unit installations and upgrades.
- Commercial low-voltage distribution boards.
- Internal covering of modular circuit protection devices.
- Miniature circuit breaker and residual current device assemblies.
- Electrical panel refurbishment and replacement cover installations.
- Distribution board maintenance requiring removable internal covers.
- Installations requiring sealable device cover arrangements.
- Projects using ABB UK600 modular distribution equipment.
- Professional electrical installations requiring a coordinated RAL 9016 white finish.
