Why Choose the ABB UZS636B Cover / Device Insert / Terminal Assembly 3R RAL9016?
The ABB UZS636B (2CPX031141R9999) is a complete three-row electrical distribution enclosure installation kit designed for compatible ABB UK63 enclosures within the UK600 range. Combining a protective device cover, DIN rail device support frame and neutral and protective earth (N/PE) quick-plug terminals, this assembly provides a practical solution for installing modular electrical protection and distribution equipment.

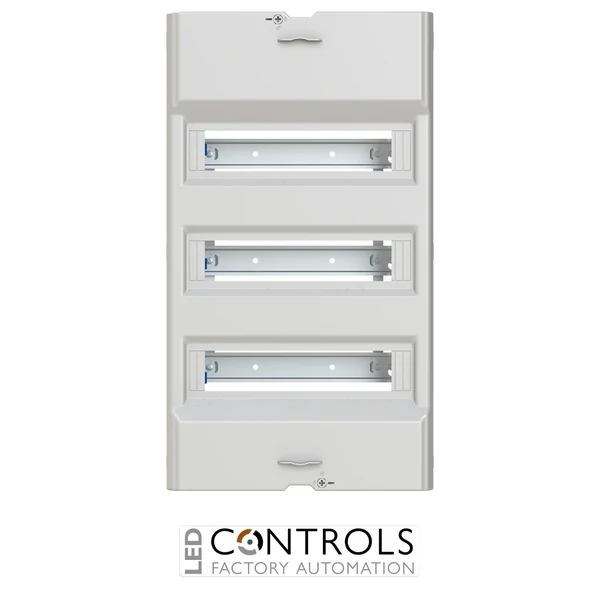

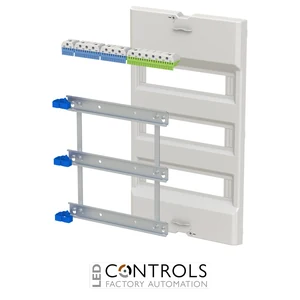

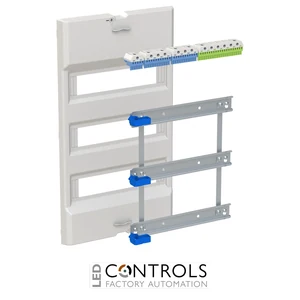

As part of the ABB UK600 enclosure accessories series, the UZS636B is designed to simplify distribution board assembly by bringing essential internal mounting and connection components together in one coordinated kit. The assembly includes a RAL 9016 white plastic device cover, a robust device support structure with removable top-hat DIN rails and modular N/PE quick-connect terminals for organised neutral and protective earth conductor termination.
With overall dimensions of 546 mm high, 306 mm wide and 34 mm deep, the ABB UZS636B is designed for compatible ABB UK63 three-row distribution enclosures. Its three DIN rails provide space for up to 36 standard 18 mm modular units, making it suitable for miniature circuit breakers, residual current devices and other compatible modular electrical installation equipment. The coordinated construction supports efficient installation, organised wiring and convenient maintenance.
Key Advantages
- Genuine ABB UK600 three-row cover, device insert and terminal assembly.
- Complete internal installation kit combining a device cover, mounting support and N/PE terminals.
- Three-row, 36-module configuration for compatible ABB UK63 distribution enclosures.
- Removable DIN rails simplify modular device installation, wiring and maintenance.
- Integrated N/PE quick-plug terminals provide convenient neutral and protective earth conductor connections.
- RAL 9016 white device cover provides a clean, professional finish.
- Protective cover with modular device cut-outs allows access to installed switching and protection devices.
- Coordinated components help simplify distribution board assembly.
- Designed for use with the ABB UK600 modular enclosure system.
Key Features
- ABB UK600 enclosure accessories series.
- UZS636B three-row cover, device support and terminal kit.
- Manufacturer order code: 2CPX031141R9999.
- Compatible with ABB UK63 electrical distribution enclosures.
- Three DIN rail mounting rows.
- 12 standard modular units per row.
- 36-module total mounting configuration.
- White plastic protective device cover with modular equipment openings.
- RAL 9016 white finish for the visible cover.
- Device support frame with removable top-hat DIN rails.
- Modular neutral and protective earth quick-plug terminals included.
- 546 mm overall height.
- 306 mm overall width.
- 34 mm overall depth.
- Designed for installation within compatible ABB UK600 recessed distribution enclosures.
- Suitable for new electrical distribution board assemblies and compatible refurbishment projects.
Reliable Device Mounting and Terminal Connections for Electrical Distribution Boards
A well-designed electrical distribution board requires secure device mounting, accessible circuit protection equipment and properly arranged neutral and protective earth connections. The ABB UZS636B cover and device support assembly combines these essential installation components into a coordinated solution for compatible UK63 enclosures. Its three removable DIN rails support the installation of modular protection devices, while the protective cover provides a professional internal finish and access to the operating elements of installed equipment.
The integrated N/PE quick-plug terminal system helps simplify conductor termination and supports organised internal wiring. As part of the ABB UK600 enclosure system, the UZS636B is particularly useful for electrical contractors and panel builders assembling distribution boards from compatible modular components. The kit is intended for use with the corresponding enclosure housing and appropriate external frame and door components, which are selected separately.
Typical Applications
- ABB UK63 three-row electrical distribution enclosures.
- Residential consumer unit and distribution board assemblies.
- Commercial building electrical distribution installations.
- DIN rail mounting of miniature circuit breakers and residual current devices.
- Modular electrical protection and switching equipment installations.
- Neutral and protective earth conductor termination within distribution boards.
- Recessed electrical distribution enclosure construction.
- Professional electrical panel assembly and installation projects.
- Refurbishment and replacement of compatible ABB UK600 internal installation components.
