Why Choose the ABB UZS648B Cover / Device Insert / Terminal Assembly 4R RAL9016?
The ABB UZS648B (2CPX031142R9999) is a complete four-row internal installation assembly designed for compatible ABB UK64 electrical distribution enclosures within the UK600 range. Combining a protective device cover, DIN rail device support and neutral and protective earth (N/PE) quick-plug terminals, this genuine ABB accessory provides a coordinated solution for assembling modular electrical distribution boards.

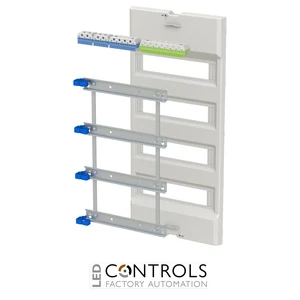

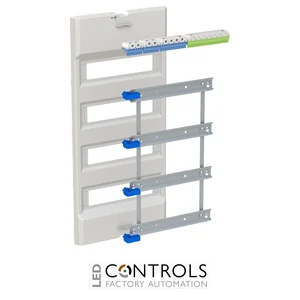

As part of the ABB UK600 enclosure accessories range, the UZS648B is supplied as an installation set comprising a plastic device cover, a device carrier with removable top-hat DIN rails and modular N/PE quick-plug terminals. This arrangement helps electrical installers organise circuit protection devices and conductor connections while simplifying installation, assembly and subsequent maintenance.

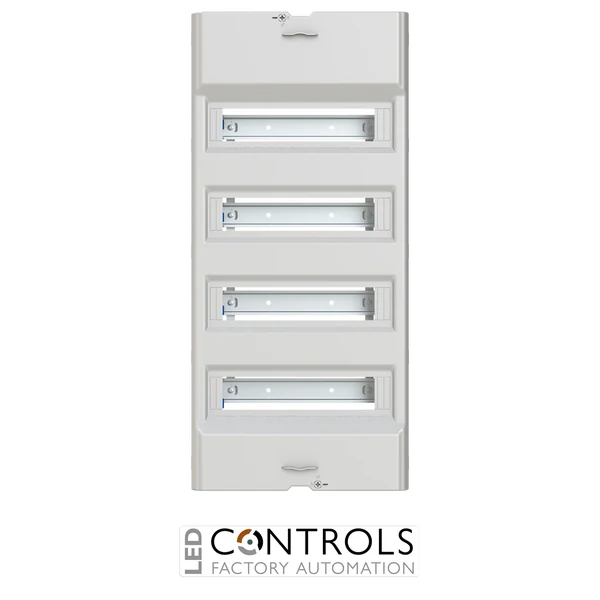

With overall dimensions of 671 mm high, 306 mm wide and 34 mm deep, the ABB UZS648B is specifically designed for ABB UK64 four-row distribution enclosures. Its 48-module configuration provides four rows of 12 modular installation spaces, making it suitable for compatible miniature circuit breakers, residual current devices and other modular electrical equipment. The RAL 9016 white cover provides a clean, professional internal finish.
Key Advantages
- Genuine ABB UK600 four-row cover, device support and terminal assembly.
- Three essential installation components in one kit: protective cover, device carrier and N/PE terminals.
- 48-module configuration with four rows of 12 standard modular installation spaces.
- Specifically designed for ABB UK64 electrical distribution enclosures.
- Removable top-hat DIN rails simplify modular device installation and servicing.
- N/PE quick-plug terminals support organised neutral and protective earth conductor connections.
- RAL 9016 white protective cover provides a neat internal appearance.
- IP2XC protection classification for the assembly in its intended configuration.
- Coordinated components help streamline electrical distribution board construction.
- Suitable for new installations, compatible enclosure upgrades and maintenance projects.
Key Features
- ABB UK600 enclosure accessories series.
- UZS648B four-row internal installation assembly.
- Manufacturer order code: 2CPX031142R9999.
- Designed for ABB UK64 enclosure compatibility.
- Four modular device mounting rows.
- 48 modular installation spaces.
- 12 modular spaces per row.
- Plastic protective device cover in RAL 9016 white.
- Device support frame with removable top-hat DIN rails.
- Modular N/PE quick-plug terminals included.
- IP2XC protection classification.
- 671 mm overall height.
- 306 mm overall width.
- 34 mm overall depth.
- 1 FB nominal enclosure width.
- Supplied as a coordinated internal assembly without the external trim frame or door.
Organised DIN Rail Mounting and N/PE Terminal Connections
A professionally assembled electrical distribution board requires secure modular device mounting, effective separation of live components and clearly organised conductor connections. The ABB UZS648B internal installation set brings together a protective device cover, four-row device support and N/PE quick-plug terminals for compatible UK64 enclosures. The removable top-hat DIN rails allow suitable modular equipment to be installed and arranged conveniently, while the cover helps provide a finished and protected internal assembly.
The modular N/PE quick-plug terminal arrangement provides dedicated connection facilities for neutral and protective earth conductors, supporting structured wiring within the distribution enclosure. Designed as part of the coordinated ABB UK600 system, the UZS648B helps electrical contractors and panel builders assemble compatible distribution boards using components developed for the same enclosure platform. The external enclosure housing, trim frame and door must be selected separately as required for the complete installation.
Typical Applications
- ABB UK64 four-row electrical distribution enclosures.
- Residential electrical distribution board installations.
- Commercial building electrical distribution systems.
- Mounting of compatible miniature circuit breakers and residual current devices.
- DIN rail installation of modular switching and protection equipment.
- Neutral and protective earth conductor termination.
- Recessed electrical distribution enclosure construction.
- Professional electrical panel assembly and installation projects.
- Replacement and refurbishment of compatible ABB UK600 internal assemblies.
