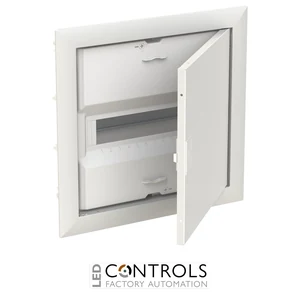

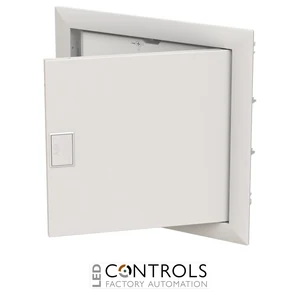

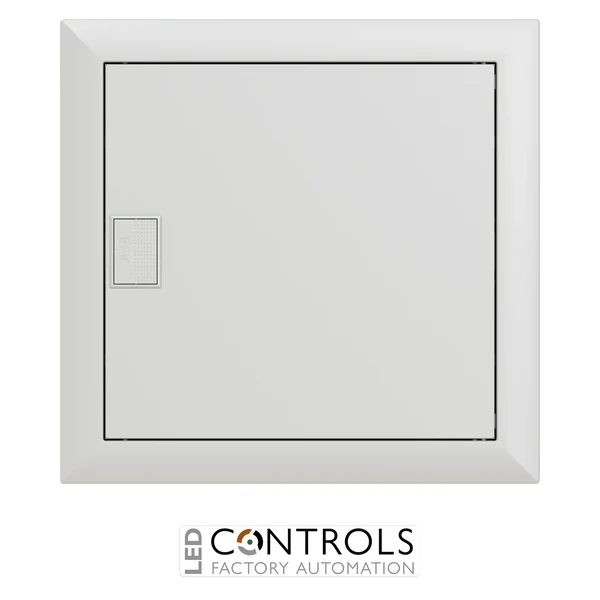

Why Choose the ABB UK612N2 UK600 Flush-Mounted Consumer Unit?
The ABB UK612N2 (ABB order code 2CPX031369R9999) is a compact 12-module flush-mounted consumer unit from the ABB UK600 electrical distribution enclosure range. Designed for recessed installation in suitable internal walls, this distribution enclosure combines a wall housing, protective door and terminal facilities in a coordinated assembly for professional residential and commercial electrical installations.
Featuring a single-row configuration with 12 DIN-module positions, the UK612N2 provides space for compatible miniature circuit breakers (MCBs), residual current devices (RCDs), residual current circuit breakers with overcurrent protection (RCBOs), isolators and other modular electrical equipment. Its IP30 protection rating and RAL 9016 traffic white finish make it a practical choice for electrical distribution boards installed in suitable dry indoor environments.
The flush-mounted design allows the main enclosure body to sit within a prepared wall recess, producing a neat appearance compared with a conventional surface-mounted distribution board. Supplied in a configuration identified by ABB as Flush CU/Dr/Ter, the UK612N2 provides an integrated consumer unit, door and terminal arrangement, helping installers create a compact and organised electrical distribution installation.
Key Advantages
- Compact 12-module consumer unit for small electrical distribution installations.
- Flush-mounted construction provides a neat recessed installation with minimal projection from the finished wall.
- Single-row arrangement supports organised mounting of compatible modular electrical equipment.
- IP30 protection rating provides protection against access by solid objects of 2.5 mm diameter or greater.
- RAL 9016 traffic white finish complements contemporary residential and commercial interiors.
- Door and terminal arrangement included as indicated by the ABB product designation.
- Coordinated UK600 enclosure system supports professional electrical distribution board assembly.
- Recessed wall housing helps protect installed modular electrical components.
- DIN-module format supports compatible circuit protection, switching and control devices.
- Dedicated terminal facilities support organised conductor connections within the enclosure.
- Suitable for new-build and refurbishment projects where a compact distribution board is required.
- ABB-manufactured electrical enclosure from the established UK600 product range.
Key Features
- ABB UK600 enclosure series.
- UK612N2 flush-mounted consumer unit.
- 12 DIN-module capacity.
- Single-row configuration.
- IP30 ingress protection rating.
- RAL 9016 traffic white finish.
- Recessed / flush-mounted installation.
- Protective door arrangement included.
- Terminal arrangement included.
- Internal modular equipment mounting provision.
- Suitable for compatible DIN-rail circuit protection devices.
- Compact distribution board format for residential and light commercial applications.
- Coordinated enclosure and door design for a professional installed appearance.
- Indoor electrical distribution application in suitable dry locations.
- ABB order code 2CPX031369R9999 for accurate product identification.
Compact Flush-Mounted Electrical Distribution for Modern Buildings
The ABB UK612N2 is designed for electrical installations where a compact, recessed distribution board is preferred. Its flush-mounted housing fits within a suitable wall opening, allowing the visible door and frame arrangement to provide a clean finish while keeping the electrical distribution equipment accessible for operation and maintenance.
With 12 standard DIN-module positions arranged in one row, the enclosure provides a practical format for small distribution systems. Installers can select compatible circuit breakers, residual current protection devices, isolators and modular control equipment according to the electrical installation design. The total number of devices that can be fitted depends on the module width of each selected component.
The IP30 protection rating indicates protection against access by solid objects of 2.5 mm diameter or greater. The enclosure does not provide a rated level of water ingress protection, so it should be installed in a suitable indoor location rather than an exposed outdoor or wet environment.
The RAL 9016 traffic white finish offers a discreet appearance for residential and commercial interiors. It is particularly appropriate for hallways, utility rooms, offices and other internal spaces where electrical distribution equipment needs to remain accessible without dominating the surrounding wall finish.
The product designation identifies the UK612N2 as a consumer unit with door and terminal facilities. This integrated arrangement helps installers prepare a coordinated distribution assembly, although the exact terminal configuration and conductor capacities should be checked against the manufacturer's technical documentation before wiring.
The ABB UK612N2 is not supplied as a fully populated electrical distribution board. Circuit breakers, residual current protection devices, isolators and other electrical equipment must be selected separately. The completed assembly must comply with the relevant installation requirements, including electrical protection, conductor sizing, heat dissipation and accessibility.
Typical Applications
- Residential flush-mounted consumer unit installations.
- Small electrical distribution boards in houses and apartments.
- Commercial premises requiring compact recessed electrical distribution.
- Office and workplace electrical installations.
- Residential refurbishment and electrical distribution upgrades.
- New-build housing developments.
- Utility rooms and internal electrical service areas.
- Dedicated distribution for selected lighting circuits.
- Small power distribution assemblies.
- Local electrical distribution for building services.
- Indoor distribution boards requiring 12 DIN-module positions.
- Electrical installations using compatible ABB modular circuit protection devices.
- Wall-recessed electrical enclosures with a white architectural finish.
- Professional electrical contracting and distribution board assembly projects.
