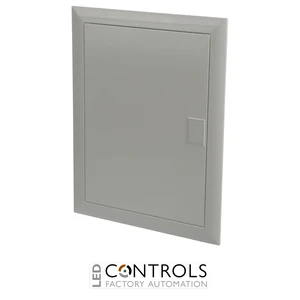

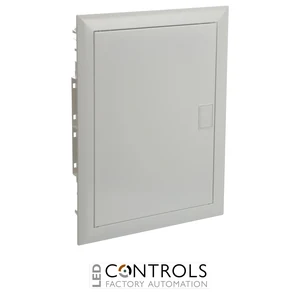

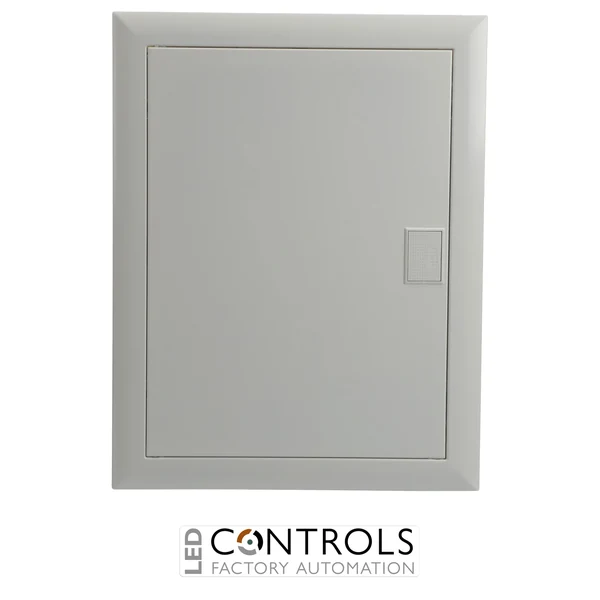

Why Choose the ABB UK624N3 UK600 24 Module Flush-Mounted Consumer Unit?
The ABB UK624N3, manufacturer order code 2CPX031370R9999, is a complete 24-module flush-mounted consumer unit from the ABB UK600 enclosure range. Designed for professional indoor electrical distribution installations, it combines a recessed thermoplastic enclosure, a powder-coated metal door and trim frame, modular device mounting provisions and neutral/protective earth (N/PE) quick-connect terminals in one coordinated assembly.
Providing 24 standard modular spaces across two rows, the ABB UK624N3 offers a practical housing for compatible miniature circuit breakers, residual current devices, isolators and other modular protection equipment. Its IP30 ingress protection, Class II double-insulated construction and IK07 impact resistance make it suitable for appropriately selected indoor installations. The closed steel door is finished in RAL 9016 white for a neat appearance in residential and commercial interiors.
The UK624N3 features a removable device support, integrated cable fastening rail and pre-punched cable entry provisions to help simplify electrical installation. Its door can be hinged on either the left or right and opens through 120° for convenient access. With overall front dimensions of 497 mm high × 384 mm wide, the enclosure is designed to integrate discreetly into suitable flush-mounted or hollow-wall applications.
Key Advantages
- 24-module capacity provides two rows for compatible modular circuit protection equipment.
- Complete consumer unit assembly includes the enclosure, door, trim frame, device support and N/PE quick-connect terminals.
- Flush-mounted design provides a discreet finish within suitable wall constructions.
- IP30 ingress protection is suitable for appropriately selected indoor environments.
- Class II double insulation supports electrical safety in the completed assembly.
- IK07 impact resistance provides a defined level of mechanical protection.
- RAL 9016 powder-coated steel door offers a durable, professional finish.
- Reversible door hinging allows left- or right-hand opening.
- 120° door opening angle provides convenient access to installed equipment.
- Integrated N/PE quick-connect terminals help organise neutral and protective earth connections.
- Removable device support facilitates equipment assembly and wiring.
- Pre-punched cable entries and an integrated cable fastening rail support orderly cable installation.
Key Features
- ABB UK600 enclosure series.
- Manufacturer model: UK624N3.
- ABB order code: 2CPX031370R9999.
- 24 standard modular spaces arranged across two rows.
- 12 standard modular positions per row.
- Flush-mounted consumer unit with hollow-wall installation provisions.
- Closed metal door and matching trim frame.
- RAL 9016 white powder-coated finish.
- Thermoplastic enclosure body.
- Class II double-insulated construction.
- IP30 ingress protection and IK07 impact resistance.
- 850 °C glow-wire resistance.
- 400 V AC, 50/60 Hz rated operational voltage.
- 63 A rated current.
- Neutral and protective earth quick-connect terminals included.
- TIP-in door closure with reversible hinges.
- Plastic internal device covers with 90° press-and-turn fastening.
- 125 mm row spacing.
- Removable device carrier and integrated cable fastening rail.
Flexible Flush-Mounted Distribution with Integrated N/PE Terminals
The ABB UK624N3 is designed to provide an organised electrical distribution point while keeping the enclosure front neatly integrated into a wall. Its two-row layout accommodates compatible DIN rail-mounted protection and switching devices, while the integrated neutral and protective earth quick-connect terminals help simplify the arrangement of outgoing circuit connections. The removable device carrier allows installers to prepare and arrange components efficiently, and the pre-punched cable entry points provide options for routing incoming and outgoing cables.
For installation planning, it is important to distinguish the enclosure's overall dimensions from its wall opening requirements. ABB specifies a flush-mounting niche of 480 × 367 × 95 mm (H × W × D), or a hollow-wall cut-out of 453 × 340 × 88 mm. The UK624N3 is supplied with a closed door, trim frame and N/PE quick-connect terminals, but circuit breakers, RCDs and other protective devices must be selected separately. The completed assembly must be designed and installed in accordance with the applicable electrical regulations, equipment ratings and manufacturer instructions.
Typical Applications
- Residential flush-mounted consumer unit installations.
- Domestic electrical distribution board replacements and upgrades.
- Commercial building circuit distribution.
- Apartment and multi-dwelling electrical installations.
- Office and retail premises distribution boards.
- Lighting and socket circuit distribution.
- Installation of compatible MCBs, RCDs, RCBOs and modular isolators.
- New-build projects requiring recessed electrical enclosures.
- Suitable hollow-wall electrical distribution installations.
- Refurbishment projects requiring a white, closed-door consumer unit.
