Why Choose the ABB UK636N3 UK600 36 Module Flush-Mounted Consumer Unit?

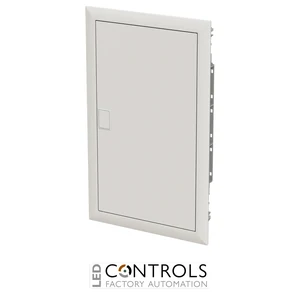

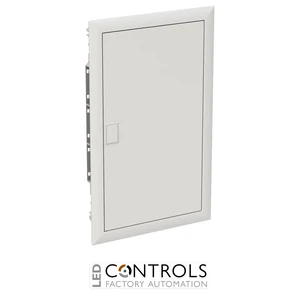

The ABB UK636N3, manufacturer order code 2CPX031371R9999, is a professional 36-module flush-mounted consumer unit from the ABB UK600 enclosure range. Designed for indoor low-voltage electrical distribution, this complete enclosure assembly includes a recessed thermoplastic housing, a closed metal door and trim frame, modular device mounting provisions and neutral/protective earth (N/PE) quick-connect terminals.
Providing 36 standard modular spaces across three rows of 12 modules, the ABB UK636N3 offers practical capacity for compatible miniature circuit breakers, residual current devices, RCBOs, isolators and other DIN rail-mounted equipment. Its IP30 ingress protection, IK07 impact resistance and Class II double-insulated construction make it suitable for appropriately selected indoor installations in residential and commercial buildings.

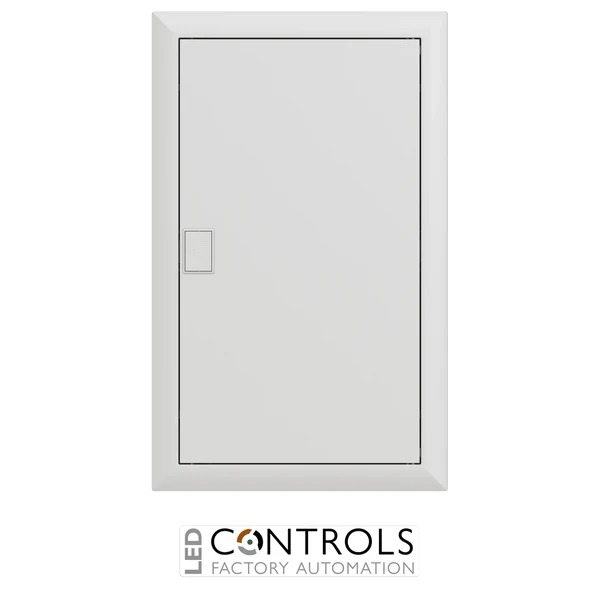

The enclosure features a RAL 9016 white powder-coated sheet steel door with a convenient TIP-in closure, reversible left- or right-hand hinging and a 120° opening angle. With overall dimensions of 622 mm high, 384 mm wide and 97 mm deep, the UK636N3 provides a neat recessed installation while offering convenient access for electrical assembly, inspection and maintenance.
Key Advantages
- 36-module capacity provides generous space for modular circuit protection and switching equipment.
- Three-row configuration offers 12 standard modular positions per row.
- Complete enclosure assembly includes the housing, door, trim frame, device support and N/PE quick-connect terminals.
- Flush-mounted design provides a discreet, professional finish in suitable wall constructions.
- IP30 protection supports use in appropriately selected indoor environments.
- Class II double insulation provides an additional electrical safety feature.
- IK07 impact resistance offers defined mechanical protection.
- RAL 9016 powder-coated steel door provides a durable and coordinated appearance.
- Reversible door hinging accommodates different installation layouts.
- 120° door opening provides convenient access to the installed equipment.
- Integrated N/PE quick-connect terminals help organise neutral and protective earth connections.
- Removable device carrier supports convenient equipment assembly and wiring.
- Pre-punched cable entries simplify cable routing from several directions.
- Integrated cable fastening rail supports orderly cable management.
Key Features
- ABB UK600 enclosure series.
- Manufacturer model: UK636N3.
- ABB order code: 2CPX031371R9999.
- 36 standard modular spaces arranged over three rows.
- 12 modular positions per row.
- Flush-mounted installation with hollow-wall mounting possible using suitable accessories.
- Closed metal door with matching trim frame.
- RAL 9016 white powder-coated finish.
- Thermoplastic enclosure body.
- Class II double-insulated construction.
- IP30 ingress protection and IK07 impact resistance.
- 850 °C glow-wire resistance.
- 400 V AC, 50/60 Hz rated operational voltage.
- 63 A rated current.
- Neutral and protective earth quick-connect terminals included.
- TIP-in door closure with reversible hinges.
- Plastic internal device covers with 90° press-and-turn fastening.
- 125 mm spacing between modular device rows.
- Removable device carrier for convenient assembly.
- Integrated cable fastening rail and pre-punched cable entry provisions.
Flexible Three-Row Distribution with Integrated N/PE Quick-Connect Terminals
The ABB UK636N3 provides an organised distribution point for installations requiring more modular circuit capacity than a standard single- or two-row enclosure. Its three-row, 36-module layout allows compatible circuit protection and switching devices to be arranged logically across separate DIN rail rows. The included N/PE quick-connect terminal arrangement supports orderly neutral and protective earth wiring, while the removable device carrier makes assembly and servicing more convenient.
Installation planning should distinguish the enclosure's overall size from the wall opening requirements. ABB specifies a 605 × 367 × 95 mm flush-mounting niche (H × W × D), while a suitable hollow-wall installation requires a 578 × 340 × 88 mm cut-out and appropriate mounting accessories. The enclosure includes the door, trim frame, device support and N/PE terminals, but MCBs, RCDs, RCBOs and other protective devices are selected separately. Installers should verify the wall construction, cable routing, thermal loading and applicable electrical regulations before completing the distribution assembly.
Typical Applications
- Residential flush-mounted consumer unit installations.
- Domestic electrical distribution board replacements and upgrades.
- Commercial building low-voltage distribution.
- Apartment and multi-dwelling electrical installations.
- Office and retail premises circuit distribution.
- Lighting and socket circuit distribution boards.
- Installation of compatible MCBs, RCDs, RCBOs and modular isolators.
- New-build electrical projects requiring recessed consumer units.
- Suitable hollow-wall distribution installations using the required accessories.
- Electrical refurbishment projects requiring a 36-module distribution enclosure.
