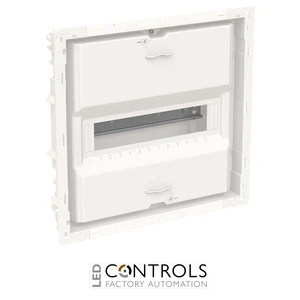

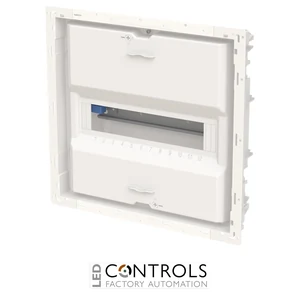

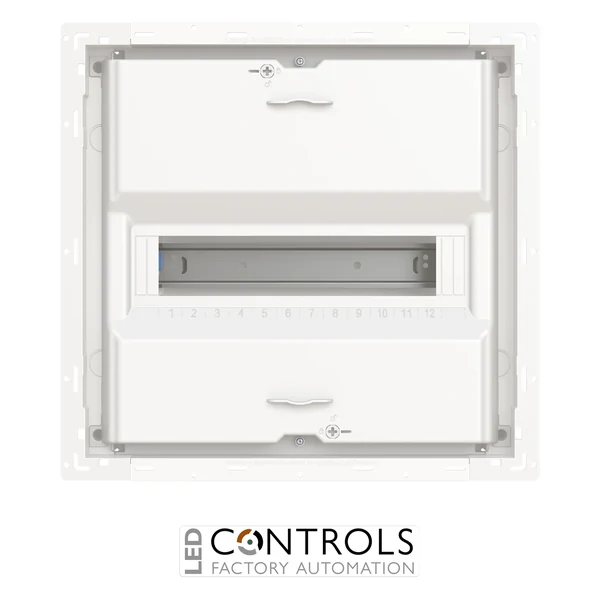

Why Choose the ABB UK612NB UK600 Flush-Mounted Consumer Unit?
The ABB UK612NB is a professional 12-module, single-row flush-mounted consumer unit from the ABB UK600 electrical distribution enclosure range. Designed for recessed installation in residential and commercial buildings, this enclosure combines a compact modular layout, integrated neutral and protective earth terminals, and robust thermoplastic construction.
Featuring IP30 ingress protection, Class II double insulation and IK07 impact resistance, the ABB UK612NB provides a dependable housing for compatible low-voltage circuit protection and switching devices. Its 63 A rated current and 400 V AC operational voltage support appropriately designed electrical distribution assemblies.
The UK612NB is supplied without an external trim frame or door, allowing the appropriate ABB UK600 front-finishing accessories to be selected separately. The enclosure includes a removable device carrier, DIN rail mounting provision, internal plastic cover, integrated cable retention and N/PE quick-connect terminals for organised installation and wiring.
Key Advantages
- 12-module capacity provides space for compact modular electrical distribution assemblies.
- Single-row design supports organised circuit protection and switching equipment.
- Flush-mounted construction allows neat integration into suitable wall openings.
- IP30 protection supports indoor electrical distribution applications.
- Class II double insulation provides additional electrical safety through the enclosure design.
- IK07 impact resistance supports mechanical durability.
- 63 A rated current and 400 V AC rated operational voltage.
- Integrated N/PE quick-connect terminals simplify neutral and protective earth conductor organisation.
- Removable device carrier assists installation, wiring and maintenance.
- 850 °C glow-wire resistance supports demanding electrical enclosure material requirements.
- RAL 9016 traffic white finish coordinates with compatible ABB UK600 accessories.
- Separate door and trim frame selection allows flexible enclosure finishing.
Key Features
- ABB UK612NB flush-mounted consumer unit.
- Part of the ABB UK600 enclosure system.
- 12 standard modular positions in one row.
- IP30 ingress protection rating.
- Class II double-insulated construction.
- IK07 mechanical impact protection.
- 63 A rated current.
- 400 V AC, 50/60 Hz rated operational voltage.
- Thermoplastic enclosure housing in RAL 9016.
- 850 °C glow-wire resistance.
- Integrated N/PE quick-connect terminals, including ABB terminal components ZK51B, ZK82B and ZK113G.
- Removable DIN rail device carrier for modular equipment installation.
- Internal plastic cover with quarter-turn press-and-turn fastening.
- Preformed cable-entry positions at the top, bottom, sides and rear.
- Integrated cable fastening rail for conductor retention.
- 347 × 362 × 97 mm enclosure dimensions.
- Supplied without external trim frame or door.
- ABB manufacturer order code 2CPX031374R9999.
Compact and Flexible Electrical Distribution with ABB UK600
The ABB UK600 enclosure system provides a modular approach to electrical distribution, allowing installers to combine suitable enclosure housings, device carriers, terminal arrangements and decorative front covers. The UK612NB offers a compact single-row solution for applications requiring up to 12 standard modular positions.
The enclosure's integrated N/PE quick-connect terminals support organised neutral and protective earth conductor termination, while the removable device carrier provides convenient access during equipment installation and wiring. Preformed cable-entry positions and an integrated cable fastening rail further support practical conductor routing within the recessed housing.
Designed for indoor installations, the UK612NB provides IP30 protection, IK07 impact resistance and Class II double insulation. Its 850 °C glow-wire resistance and compliance with EN 60670-24 contribute to its suitability for professional electrical distribution applications. The appropriate external frame and door must be selected separately where required by the installation design.
Typical Applications
- Residential flush-mounted consumer units.
- Small commercial electrical distribution boards.
- Single-row miniature circuit breaker installations.
- Residual current device and RCBO distribution assemblies.
- Indoor low-voltage electrical distribution systems.
- Building refurbishment and concealed electrical installations.
- Modular switching and circuit protection assemblies.
- Distribution boards requiring integrated N/PE terminal connections.
- ABB UK600 enclosure installations with separately selected decorative front covers.
