Why Choose the ABB UK648NB UK600 Flush-Mounted Consumer Unit?

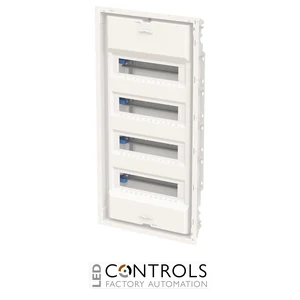

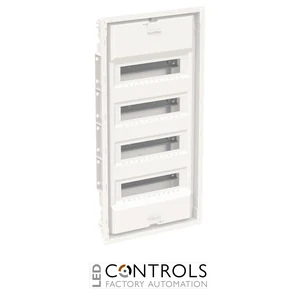

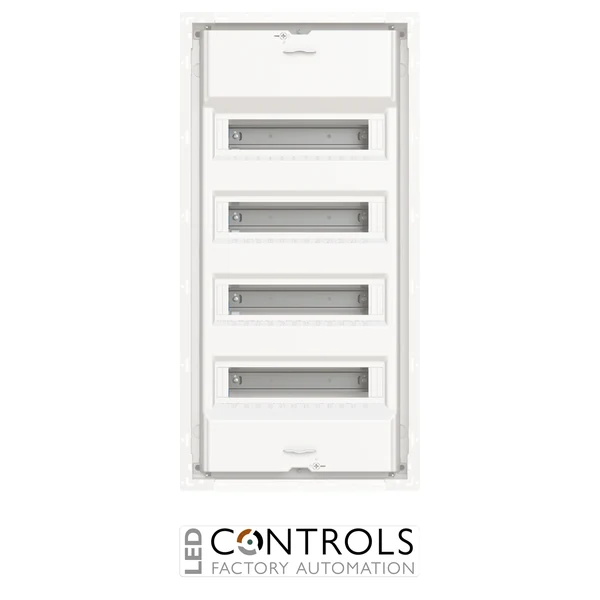

The ABB UK648NB, manufacturer order code 2CPX031377R9999, is a four-row, 48-module flush-mounted consumer unit without a door or trim frame from the ABB UK600 enclosure range. Designed for low-voltage electrical distribution, this enclosure provides a practical solution for organising modular protective and switching devices in residential, commercial and building services installations.
Featuring an IP30 protection classification, RAL 9016 traffic white finish and Class II double-insulated construction, the ABB UK648NB combines a professional appearance with practical electrical installation features. Its four-row configuration provides 48 modular positions, arranged across four rows of 12 modules, making it suitable for distribution boards requiring multiple circuits and organised device grouping.
The UK648NB is manufactured with a thermoplastic enclosure housing and incorporates a removable device carrier, integrated cable-retaining rail and N/PE quick-connect terminals. Preformed cable-entry positions support flexible wiring routes, while the flush-mounted design allows the distribution board to be recessed neatly into a suitable wall.
With overall enclosure dimensions of 722 mm high × 362 mm wide × 97 mm deep, the ABB UK648NB is designed for compatible UK600 installations where a separate front trim frame and door can be selected as required. Its coordinated construction supports efficient assembly, accessible wiring and dependable operation within the specified electrical ratings.
Key Advantages
- 48-module capacity accommodates multiple modular protective and switching devices.
- Four-row configuration provides organised distribution of electrical circuits.
- Flush-mounted design allows neat integration into suitable wall openings.
- IP30 protection classification supports appropriate indoor electrical installations.
- Class II double-insulated construction provides an additional electrical insulation characteristic.
- Rated current of 63 A for the specified enclosure assembly.
- 400 V AC operational voltage supports compatible low-voltage distribution applications.
- RAL 9016 traffic white finish complements residential and commercial interiors.
- Removable device carrier supports convenient assembly and maintenance.
- Integrated N/PE quick-connect terminals simplify neutral and protective conductor organisation.
- Integrated cable-retaining rail supports tidy cable management and strain relief.
- Preformed cable-entry positions provide flexibility for incoming wiring.
- Supplied without a door or trim frame, allowing compatible finishing accessories to be selected separately.
- Part of the coordinated ABB UK600 electrical distribution enclosure system.
Key Features
- ABB UK600 consumer unit range.
- Model: UK648NB.
- ABB order code: 2CPX031377R9999.
- Flush-mounted electrical distribution enclosure.
- Four rows with 48 modular positions.
- 12 modules per row.
- IP30 degree of protection.
- Class II double-insulated design.
- 63 A rated current.
- 400 V AC, 50/60 Hz rated operational supply.
- Thermoplastic housing construction.
- RAL 9016 traffic white colour.
- 722 mm enclosure height.
- 362 mm enclosure width.
- 97 mm enclosure depth.
- Removable internal device carrier.
- Integrated DIN-rail device mounting arrangement.
- N/PE quick-connect terminal equipment.
- Integrated cable-retaining rail and strain relief.
- Preformed cable entries at the top, bottom, sides and rear.
- 90° press-and-turn cover fastening arrangement.
- Without door and decorative trim frame.
Reliable Electrical Distribution with a Four-Row Flush-Mounted Design
The ABB UK648NB provides a structured enclosure arrangement for installations requiring up to 48 standard modular positions. Its four-row layout supports logical grouping of circuit breakers, residual current devices and other compatible modular equipment, helping electrical installers create distribution boards that are straightforward to identify, inspect and maintain.
The flush-mounted construction allows the enclosure to be recessed into a suitable wall opening. ABB specifies both flush-mounting niche dimensions and hollow-wall cut-out dimensions, helping installers plan the installation according to the wall construction and the selected mounting method.
The Class II double-insulated thermoplastic housing provides an important insulation characteristic for the enclosure assembly. Its IP30 classification provides protection against relevant solid-object access, while the IK07 impact-resistance rating indicates a defined level of resistance to mechanical impact. The IP30 rating does not provide a rated level of protection against water ingress, so the installation environment must be selected accordingly.
Practical cable-management features are integrated into the UK648NB design. Preformed openings at the top, bottom, sides and rear support alternative cable-entry routes, while the integrated cable-retaining rail and strain-relief provisions help maintain an organised wiring arrangement. The removable device carrier further supports installation and servicing of compatible modular equipment.
The UK648NB is supplied as a basic consumer unit configuration without a decorative trim frame or door. Compatible finishing accessories must be selected separately where required. The stated electrical ratings apply to the specified enclosure design and do not replace the need to verify protective device ratings, circuit loading, thermal performance and the requirements of the complete distribution assembly.
Typical Applications
- Residential electrical distribution boards.
- Four-row flush-mounted consumer unit installations.
- 48-module low-voltage distribution assemblies.
- Apartment buildings and residential developments.
- Commercial premises and office electrical distribution.
- Building services electrical infrastructure.
- Distribution boards requiring multiple groups of protective devices.
- Recessed electrical installations in suitable internal walls.
- Hollow-wall installations using the specified mounting arrangement.
- Electrical panel assembly and modular circuit organisation.
- Consumer unit upgrades and compatible refurbishment projects.
- Professional electrical installation and maintenance work.
