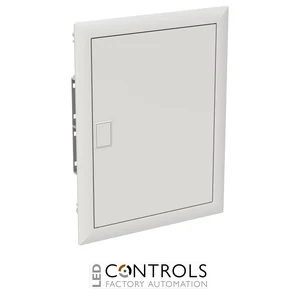

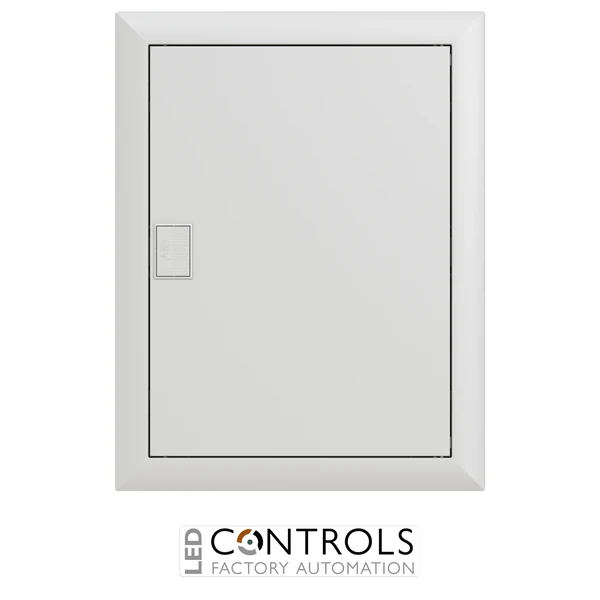

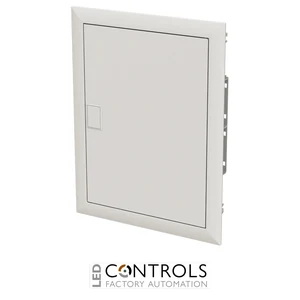

Why Choose the ABB UK624K UK600 Flush-Mounted Consumer Unit 24M IP30 RAL9016?
The ABB UK624K is a practical and reliable flush-mounted consumer unit with door and terminal facilities, designed for low-voltage electrical distribution installations in residential and commercial buildings. As part of the ABB UK600 enclosure series, this consumer unit provides a dedicated housing for modular electrical protection and distribution equipment while supporting a neat, integrated installation within the building structure.
The UK624K features a 24-module (24M) configuration, providing installation space for compatible modular electrical devices such as miniature circuit breakers, residual current devices and other DIN rail-mounted distribution components. Its flush-mounted construction allows the enclosure to be recessed into a suitable wall opening, creating a discreet and professional finish.
Finished in RAL9016 traffic white, the ABB UK624K is supplied as a flush-mounted consumer unit with door and terminal facilities. The enclosure has an IP30 protection rating and is designed for indoor electrical distribution applications. Identified by ABB order code 2CPX031380R9999, it offers a convenient solution for electrical contractors, installers and panel builders requiring a compact, organised and accessible distribution enclosure.
Key Advantages
- Flush-mounted consumer unit designed for recessed installation in suitable walls.
- 24-module capacity accommodates compatible modular electrical distribution devices.
- IP30 protection rating for suitable indoor electrical installations.
- RAL9016 traffic white finish provides a clean, professional appearance.
- Supplied with door and terminal facilities for a practical distribution board installation.
- Part of the established ABB UK600 enclosure system.
- Supports organised installation of circuit protection and electrical distribution equipment.
- Flush-mounted design reduces the visible projection of the enclosure from the finished wall surface.
- Suitable for residential, commercial and building services electrical distribution applications.
Key Features
- ABB UK600 enclosure series.
- UK624K flush-mounted consumer unit.
- 24 modular device positions.
- IP30 degree of protection.
- RAL9016 traffic white colour.
- Recessed wall installation configuration.
- Supplied with a door for access to installed electrical devices.
- Includes terminal facilities for electrical distribution wiring.
- Designed for compatible modular DIN rail electrical equipment.
- Supports structured installation and maintenance of electrical distribution circuits.
- Suitable for indoor low-voltage electrical distribution systems.
- Manufacturer order code: 2CPX031380R9999.
Technical Specifications
- Manufacturer: ABB
- Series: UK600 Enclosures
- Model: UK624K
- ABB order code: 2CPX031380R9999
- Product group: UK600 Enclosures
- Product designation: UK624K Flush CU/Dr/Term 24M IP30 RAL9016
- Product type: Flush-mounted consumer unit with door and terminals
- Mounting type: Flush / recessed wall mounting
- Module capacity: 24 modules
- Module format: Modular DIN rail equipment
- Protection rating: IP30
- Colour: Traffic white
- Colour reference: RAL9016
- Door: Included
- Terminal facilities: Included
- Application: Low-voltage electrical distribution
- Installation environment: Indoor
- Equipment category: Consumer units and electrical distribution enclosures
Reliable Electrical Distribution and Flush-Mounted Installation
Consumer units and distribution enclosures provide the physical housing required to install, organise and protect electrical distribution equipment. A correctly selected enclosure helps maintain separation between electrical components and normal user access while providing a structured arrangement for circuit protection devices, conductors and terminal connections.
The ABB UK624K combines a 24-module installation capacity with the practical benefits of flush mounting. Its recessed design is particularly suitable for building installations where a discreet electrical distribution board is preferred. The supplied door provides access to the front of the distribution assembly, while the terminal facilities support the organisation of electrical connections during installation.
As part of the ABB UK600 system, the UK624K is intended for use with compatible modular electrical distribution components. Its IP30 protection rating makes it suitable for appropriate indoor environments, subject to correct installation and the completed assembly meeting applicable electrical regulations. Circuit protection devices, electrical loading, conductor arrangements and installation clearances should be selected and verified by a competent electrical installer.
Typical Applications
- Residential consumer unit installations.
- Domestic low-voltage electrical distribution boards.
- Commercial building electrical distribution systems.
- Flush-mounted distribution boards in offices and workplaces.
- Apartment and multi-occupancy building electrical installations.
- Building refurbishment and electrical distribution upgrades.
- Installation of modular circuit breakers and residual current protection devices.
- Indoor building services and electrical infrastructure projects.
