Why Choose the ABB UK660K Flush Consumer Unit 60M IP30 RAL9016?
The ABB UK660K (2CPX031383R9999) is a professional five-row, 60-module flush-mounted consumer unit from the ABB UK600 enclosure range. Designed for recessed electrical distribution installations, it combines a durable thermoplastic enclosure housing with a protective steel door, removable device carrier and modular equipment covers. Its generous internal capacity makes it suitable for electrical distribution systems requiring multiple circuit protection and switching devices.

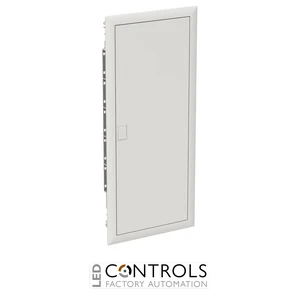

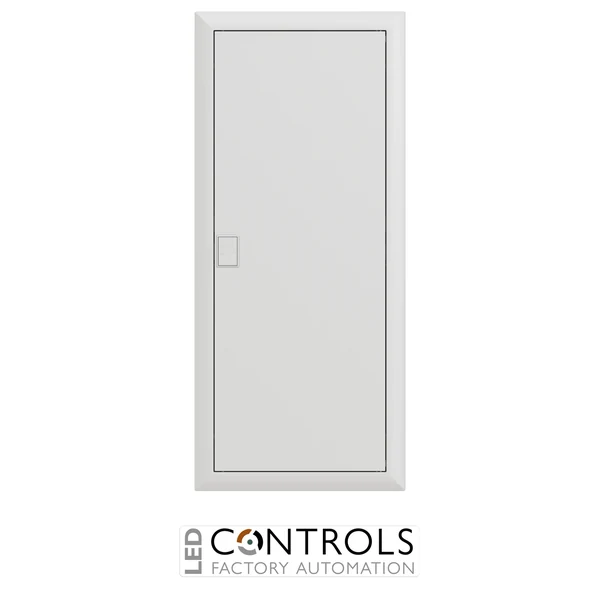

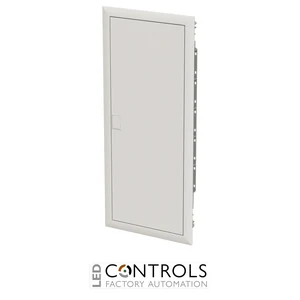

The UK660K features a powder-coated sheet steel door in RAL 9016 white, providing a clean, discreet appearance for residential and commercial interiors. Its TIP-in door closure, reversible left- or right-hand hinges and 120-degree opening angle support convenient access during installation and maintenance. The enclosure also includes integrated cable management provisions and pre-punched cable entry points to help electrical installers organise incoming and outgoing conductors.
Measuring 872 mm high, 384 mm wide and 97 mm deep, the ABB UK660K accommodates 60 standard modular installation units across five rows. It offers IP30 protection, Class II double insulation and IK07 mechanical impact resistance, with a rated current of 63 A and rated operational voltage of 400 V AC. This version is supplied without neutral and protective earth (N/PE) terminals, allowing compatible terminal accessories to be selected separately for the intended installation.
Key Advantages
- Genuine ABB UK600 five-row flush-mounted consumer unit for professional electrical distribution.
- 60-module capacity arranged across five rows of 12 standard modular spaces.
- IP30 protection rating for suitable indoor electrical installations.
- Class II double-insulated construction for enhanced electrical safety.
- IK07 impact resistance provides mechanical protection against everyday installation environments.
- RAL 9016 white steel door creates a clean and professional appearance.
- Reversible door hinges allow left- or right-hand opening.
- 120-degree door opening supports convenient equipment access.
- Removable device carrier simplifies assembly, wiring and maintenance.
- Pre-punched cable entry points and integrated cable fastening rail support organised wiring.
- Flush-mounted construction integrates neatly into suitable wall recesses.
- Separate N/PE terminal selection allows the installer to configure compatible terminal accessories to suit the application.
Key Features
- ABB UK600 enclosure series.
- UK660K five-row flush consumer unit.
- Manufacturer order code: 2CPX031383R9999.
- 60 modular installation spaces.
- Five device mounting rows with 125 mm row spacing.
- Thermoplastic enclosure housing.
- Powder-coated sheet steel protective door.
- RAL 9016 white finish.
- IP30 degree of protection.
- Class II double-insulated design.
- IK07 mechanical impact resistance.
- TIP-in door closure mechanism.
- Reversible door hinges for left- or right-hand opening.
- 120-degree door opening angle.
- Removable device carrier with DIN rail mounting provision.
- Plastic modular device covers with quarter-turn closures.
- Pre-punched cable entries at the top, bottom, sides and rear.
- Integrated cable fastening rail for cable management.
- Supplied without N/PE terminals.
- 872 mm x 384 mm x 97 mm overall dimensions.
Professional Flush-Mounted Distribution with Reliable Enclosure Protection
The ABB UK660K flush-mounted distribution enclosure is designed to provide a practical combination of modular device capacity, electrical insulation and professional appearance. Its five-row arrangement offers ample space for compatible circuit breakers, residual current devices and modular switching equipment. The removable device carrier supports efficient installation and wiring, while integrated cable management features help maintain an organised internal layout.
The enclosure's Class II double insulation, IP30 rating and IK07 impact resistance support its use in appropriately specified indoor installations. The RAL 9016 white steel door provides a discreet finish and can be hinged on either side to suit the installation. IP30 does not provide rated water ingress protection, and the UK660K is supplied without N/PE terminals; suitable terminal accessories and electrical devices must therefore be selected separately as required. All installation work should follow ABB instructions and applicable electrical regulations.
Typical Applications
- Residential flush-mounted electrical distribution boards.
- Apartment buildings and multi-circuit domestic installations.
- Commercial building electrical distribution systems.
- Recessed consumer unit installations in suitable indoor locations.
- Distribution boards with up to 60 standard modular installation spaces.
- Mounting of compatible miniature circuit breakers and residual current devices.
- Modular switching, protection and electrical control equipment.
- Electrical distribution upgrades and refurbishment projects.
- Professional electrical panel assembly and installation work.
- ABB UK600 enclosure installations requiring a five-row layout.
