Why Choose the ABB UK636MW UK600 Flush-Mounted Wi-Fi Multimedia Unit?
The ABB UK636MW (ABB order code 2CPX031387R9999) is a professional three-row flush-mounted Wi-Fi multimedia distribution enclosure from the ABB UK600 range. Designed for residential networking, structured data cabling and telecommunications installations, this recessed media unit provides a central location for compatible routers, network switches, patch connections and associated communication equipment.

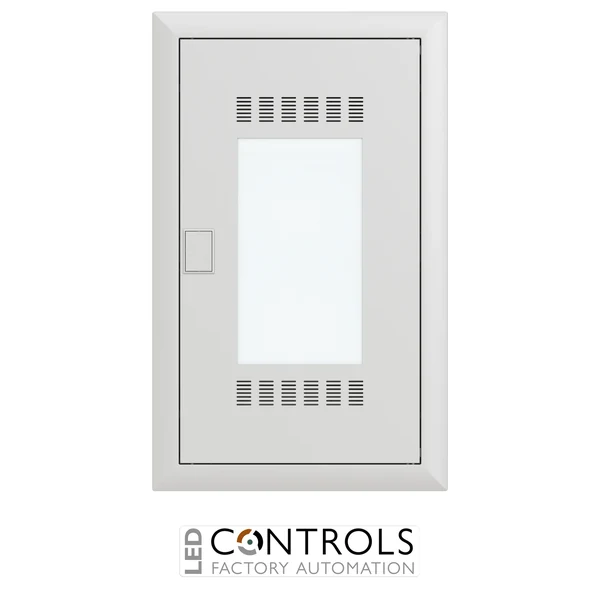

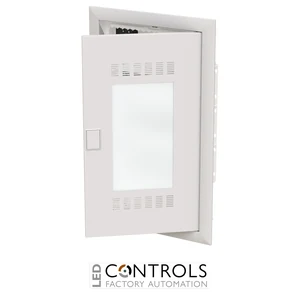

A defining feature of the UK636MW is its ventilated Wi-Fi-friendly door, combining a powder-coated sheet steel construction with a white plastic insert designed to improve wireless signal transmission. This arrangement helps reduce the shielding effect associated with fully metal enclosure doors while providing ventilation openings for installed electronic equipment. The enclosure is finished in RAL 9016 traffic white for a neat appearance in modern interiors.
With three rows, 36 nominal modular positions and overall dimensions of 622 × 384 × 97 mm (H × W × D), the UK636MW offers practical installation space for multimedia equipment. Its IP30 protection rating, IK07 mechanical impact resistance and Class II double-insulated construction make it a coordinated solution for suitable indoor communication installations.
Key Advantages
- Purpose-designed multimedia enclosure for networking, telecommunications and structured cabling installations.
- Wi-Fi-friendly door with plastic insert helps improve wireless signal transmission compared with a fully metal door.
- Ventilated door construction supports airflow around compatible electronic equipment.
- Three-row enclosure configuration provides organised installation space.
- 36 nominal modular positions identify the size of the enclosure system.
- Flush-mounted design creates a neat recessed appearance in suitable internal walls.
- RAL 9016 traffic white finish complements residential and commercial interiors.
- IP30 ingress protection provides protection against access by solid objects of 2.5 mm diameter or greater.
- IK07 mechanical impact resistance supports durable everyday use.
- Class II double-insulated construction provides a defined electrical protection arrangement.
- Two perforated sheet steel mounting plates support flexible installation of compatible multimedia devices.
- Patch panel for up to 12 compatible keystone modules helps organise structured data connections.
- Rotatable triple socket outlet provides convenient power connection facilities.
- Integrated cable-retaining rail supports tidy cable management.
- Reversible door hinging and 120° opening angle improve access during installation and servicing.
Key Features
- ABB UK600 multimedia enclosure series.
- UK636MW three-row Wi-Fi media unit.
- Flush-mounted / recessed installation.
- Ventilated Wi-Fi-friendly sheet steel door.
- White plastic door insert for improved wireless signal transmission.
- RAL 9016 traffic white finish.
- Thermoplastic enclosure housing.
- Matching trim frame and door included.
- Three rows and 36 nominal modular positions.
- Two modular perforated sheet steel mounting plates.
- Removable DIN rail for compatible equipment mounting.
- Patch panel accommodating up to 12 compatible keystone modules.
- Rotatable triple socket outlet for multimedia equipment power connections.
- Integrated cable-retaining rail.
- Preformed cable-entry positions at the top, bottom, sides and rear.
- TIP-in door closure.
- Right-hand or left-hand door hinging.
- 120° door opening angle.
- IP30 ingress protection rating.
- IK07 mechanical impact resistance.
- Class II double-insulated construction.
- 850 °C glow-wire resistance.
- Suitable for compatible routers, network switches and telecommunications equipment.
The ABB UK636MW multimedia enclosure provides a dedicated installation location for communication equipment used in connected homes and commercial premises. It is particularly suitable for installations where broadband equipment, network switching, structured cabling and associated power connections need to be organised within a single recessed cabinet.
Unlike conventional metal-fronted distribution enclosures, the UK636MW features a ventilated door incorporating a white plastic Wi-Fi insert. This design is intended to reduce the attenuation of wireless signals caused by a fully metallic door, making the enclosure a useful option where a wireless router or access point is installed inside. Actual Wi-Fi coverage will depend on the connected equipment, wall construction, frequency band and surrounding environment.

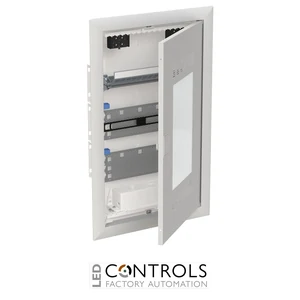

The included two modular perforated sheet steel mounting plates provide flexible fixing positions for compatible routers, switches, fibre termination equipment and other communication devices. A removable DIN rail provides an additional mounting option, while the available internal space allows installers to consider cable routing, device dimensions and ventilation clearances.
The integrated patch panel accommodates up to 12 compatible keystone modules, allowing structured data cabling to terminate at an organised connection point. The supplied rotatable triple socket outlet provides convenient power connection facilities for compatible active networking equipment, subject to correct electrical installation and protection.
The ventilation openings help promote airflow around equipment that generates heat during normal operation. However, installers must still check the thermal requirements of individual devices and avoid obstructing ventilation paths. The enclosure's IP30 rating does not provide water ingress protection, so the UK636MW is intended for suitable dry indoor environments.
With IK07 impact resistance, Class II double insulation and an 850 °C glow-wire resistance specification, the UK636MW provides a defined enclosure performance level. Its rated electrical characteristics describe the manufacturer's enclosure specification and should not be interpreted as ratings for every networking device or accessory installed inside.
The flush-mounted housing produces a discreet appearance, while the RAL 9016 white trim frame and door suit contemporary interiors. For installation planning, ABB's UK600 brochure identifies a nominal wall niche of 578 × 340 × 88 mm. Installers should check the current dimensional drawing and mounting instructions before preparing the wall opening.
Typical Applications
- Residential Wi-Fi router and home networking installations.
- Structured Ethernet cabling distribution.
- Broadband and fibre-optic termination points.
- Centralised network switch installations.
- Smart home communication equipment.
- Apartment and multi-dwelling telecommunications distribution.
- Office and small commercial networking installations.
- Home automation and building communication systems.
- Low-voltage data and multimedia distribution.
- Network equipment consolidation during refurbishment projects.
- Flush-mounted communications cabinets in new-build housing.
- Indoor networking installations requiring a Wi-Fi-friendly door.
- Patch panel and keystone data connection installations.
- Professional electrical and structured cabling projects.
