Why Choose the ABB UK648MW Flush-Mounted WiFi Media Enclosure 4R RAL9016?
The ABB UK648MW is a versatile flush-mounted multimedia distribution enclosure designed to accommodate networking, communication and multimedia equipment within residential and commercial buildings. As part of the ABB UK600 Media enclosure series, this unit provides an organised installation space for structured cabling, network distribution components and associated electrical accessories.

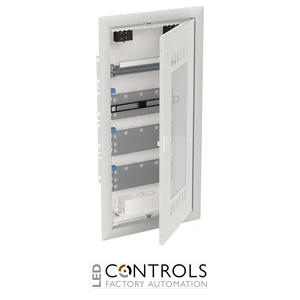

The UK648MW features a four-row configuration with 48 modular space units, incorporating perforated sheet steel mounting plates, a patch panel for up to 12 keystone modules and a rotatable triple socket outlet. Its integrated cable fastening rail and removable DIN rail arrangement support flexible equipment positioning and organised cable management, making it suitable for modern building communication infrastructure.

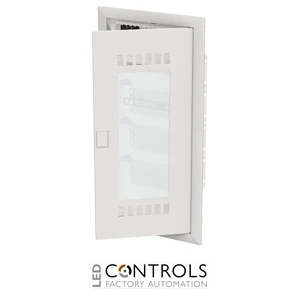

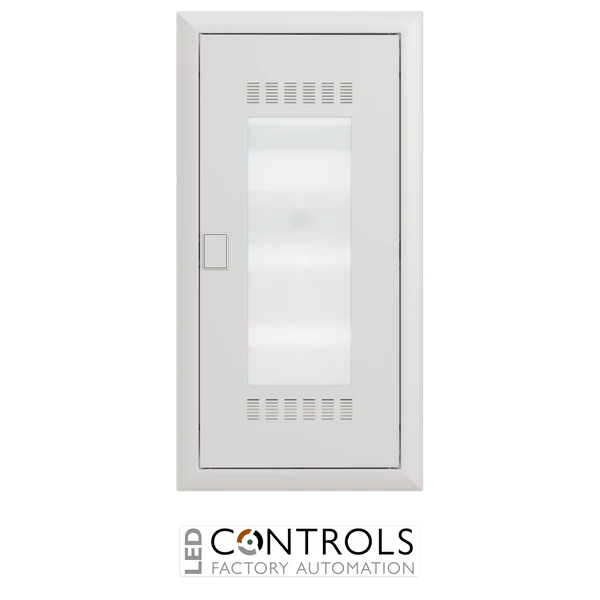

Featuring a ventilated WiFi-friendly door with a semi-transparent plastic insert, the UK648MW is designed to support wireless signal transmission while providing an enclosed installation for compatible networking equipment. The enclosure has an IP30 protection rating, RAL9016 alpine white finish and overall dimensions of 747 mm high, 384 mm wide and 97 mm deep. Its flush-mounted design enables discreet integration into suitable wall recesses, making it a practical choice for structured cabling and multimedia distribution installations.
Key Advantages
- Flush-mounted multimedia enclosure designed for organised networking and communication installations.
- Four-row configuration with 48 modular space units provides flexible equipment mounting capacity.
- WiFi-friendly ventilated door incorporates a semi-transparent plastic insert to support wireless signal transmission.
- Perforated sheet steel mounting plates provide flexible mounting positions for compatible multimedia equipment.
- Patch panel for up to 12 keystone modules supports structured network cabling connections.
- Rotatable triple socket outlet provides convenient power connections for compatible installed equipment.
- IP30 protection and Class II double insulation support appropriately selected indoor installations.
- RAL9016 alpine white finish provides a clean, coordinated appearance for modern building interiors.
Key Features
- ABB UK600 Media enclosure series.
- UK648MW flush-mounted multimedia distribution unit.
- Four-row (4R) configuration.
- 48 modular space units.
- IP30 degree of protection.
- IK07 mechanical impact resistance.
- Class II double-insulated construction.
- RAL9016 alpine white finish.
- Thermoplastic enclosure body with powder-coated sheet steel door.
- Ventilated WiFi door with approximately 30% transparent plastic insert.
- TIP-in door closure for convenient access.
- 120° door opening angle with reversible left- or right-hand hinging.
- Three perforated sheet steel mounting plates for multimedia equipment.
- Patch panel supporting up to 12 keystone modules.
- Rotatable triple socket outlet for equipment power connections.
- Integrated cable fastening rail and prepared cable entry points.
- 400 V AC rated operational voltage at 50/60 Hz.
- 63 A rated current for the specified enclosure assembly.
- 850 °C glow-wire resistance.
Reliable Multimedia Distribution for Modern Connected Buildings
Multimedia distribution enclosures provide a central location for organising structured network cabling, communication equipment and associated power connections. By bringing network termination points and compatible multimedia devices together within a dedicated enclosure, installers can create accessible and manageable communication infrastructure for residential and commercial buildings.
The ABB UK648MW multimedia enclosure is designed for these applications, combining flexible equipment mounting with dedicated cable management and network termination provisions. Its perforated mounting plates support the installation of compatible networking devices, while the 12-position keystone patch panel facilitates structured cabling connections. The integrated rotatable triple socket outlet provides convenient power distribution for suitable equipment installed within the enclosure.
Unlike conventional all-metal enclosure doors, the UK648MW WiFi-friendly door incorporates a semi-transparent plastic insert intended to improve wireless signal transmission. Ventilation openings support airflow around installed equipment, while the recessed mounting format helps maintain a tidy appearance. The enclosure is rated IP30 and is intended for suitable indoor locations without exposure to water ingress.
Typical Applications
- Residential structured cabling and home networking installations.
- Centralised broadband router and network switch installations.
- WiFi access point and wireless networking equipment housing.
- Commercial office data and communication distribution systems.
- Ethernet patch panels and keystone network connections.
- Smart home and building automation communication equipment.
- Multimedia and telecommunications distribution installations.
- Flush-mounted networking enclosures in modern residential and commercial buildings.
