Why Choose the ABB UK660MW Flush-Mounted WiFi Media Enclosure 5R RAL9016?
The ABB UK660MW is a spacious and versatile five-row flush-mounted multimedia distribution enclosure designed for organising networking, communication and structured cabling equipment in residential and commercial buildings. As part of the ABB UK600 Media enclosure series, this unit provides a dedicated installation space for network components, multimedia connections and associated power distribution accessories.
The UK660MW features a five-row configuration with 60 modular space units, incorporating perforated sheet steel mounting plates, a patch panel for up to 12 keystone modules and a rotatable triple socket outlet. Its integrated cable fastening rail, removable DIN rail arrangement and prepared cable entry points support flexible equipment installation and organised cable management, making it suitable for modern building communication infrastructure.

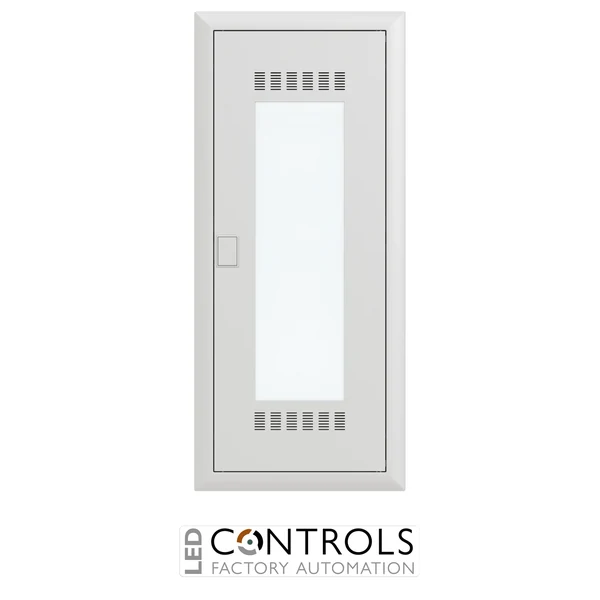

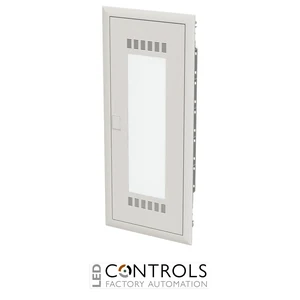

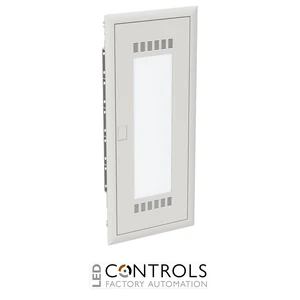

Featuring a ventilated WiFi-friendly door with a semi-transparent plastic insert, the UK660MW is designed to improve wireless signal transmission compared with conventional fully metal enclosure doors. The enclosure provides IP30 protection, IK07 impact resistance and a professional RAL9016 alpine white finish. With overall dimensions of 872 mm high, 384 mm wide and 97 mm deep, its flush-mounted construction enables discreet integration into suitable wall recesses while providing generous space for multimedia distribution equipment.
Key Advantages
- Flush-mounted multimedia enclosure designed for organised networking and communication installations.
- Five-row configuration with 60 modular space units provides generous mounting capacity for compatible multimedia equipment.
- WiFi-friendly ventilated door incorporates a semi-transparent plastic insert to improve wireless signal transmission.
- Perforated sheet steel mounting plates provide flexible installation positions for networking and multimedia devices.
- Patch panel for up to 12 keystone modules supports structured cabling and network termination.
- Rotatable triple socket outlet provides convenient power connections for compatible installed equipment.
- Integrated cable fastening rail supports organised cable routing and installation.
- IP30 protection, IK07 impact resistance and Class II double insulation support appropriately selected indoor installations.
- RAL9016 alpine white finish provides a clean and professional appearance for modern building interiors.
Key Features
- ABB UK600 Media enclosure series.
- UK660MW flush-mounted multimedia distribution unit.
- Five-row (5R) configuration.
- 60 modular space units.
- IP30 degree of protection.
- IK07 mechanical impact resistance.
- Class II double-insulated construction.
- RAL9016 alpine white finish.
- Thermoplastic enclosure body with powder-coated sheet steel door.
- Ventilated WiFi-friendly door with approximately 30% transparent plastic insert.
- TIP-in door closure for convenient access.
- 120° door opening angle with reversible left- or right-hand hinging.
- Perforated sheet steel mounting plates for multimedia equipment.
- Patch panel supporting up to 12 keystone modules.
- Rotatable triple socket outlet for equipment power connections.
- Integrated cable fastening rail and prepared cable entry points.
- Removable DIN rail arrangement for flexible equipment installation.
- 400 V AC rated operational voltage at 50/60 Hz.
- 63 A rated current for the specified enclosure assembly.
- 850 °C glow-wire resistance.
Reliable Multimedia Distribution for Modern Connected Buildings
Multimedia distribution enclosures provide a central location for organising structured network cabling, communication equipment and associated power connections. By bringing network termination points, routers, switches and compatible multimedia devices together within a dedicated enclosure, installers can create accessible and manageable communication infrastructure for residential and commercial buildings.
The ABB UK660MW multimedia enclosure is designed for these applications, combining generous five-row mounting capacity with flexible equipment installation and cable management. Its perforated mounting plates support the positioning of compatible networking devices, while the 12-position keystone patch panel facilitates structured Ethernet and communication cabling connections. The integrated rotatable triple socket outlet provides convenient power connections for suitable equipment installed within the enclosure.
Unlike conventional fully metal enclosure doors, the UK660MW WiFi-friendly door incorporates a semi-transparent plastic insert intended to improve wireless signal transmission. Ventilation openings support airflow around installed equipment, while the flush-mounted construction provides a tidy appearance. The IP30 enclosure rating provides protection against access to hazardous parts and solid objects of 2.5 mm diameter and greater, but does not provide rated protection against water ingress. The enclosure should therefore be installed in a suitable indoor environment.
Typical Applications
- Residential structured cabling and home networking installations.
- Centralised broadband router and network switch installations.
- WiFi access point and wireless networking equipment housing.
- Commercial office data and communication distribution systems.
- Ethernet patch panels and keystone network connections.
- Smart home and building automation communication equipment.
- Multimedia and telecommunications distribution installations.
- Flush-mounted networking enclosures requiring additional equipment capacity.
