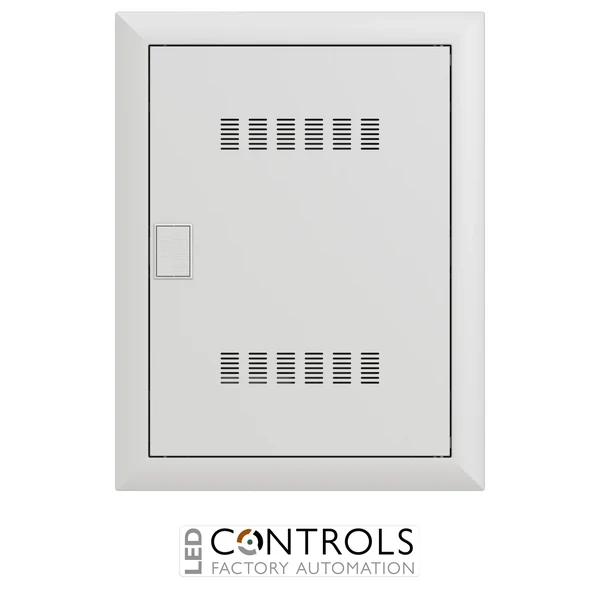

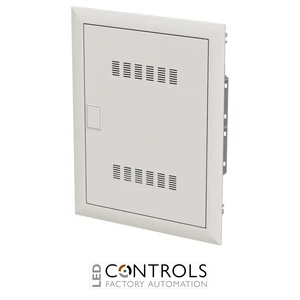

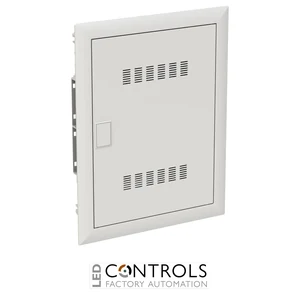

Why Choose the ABB UK620MV UK600 Flush-Mounted Ventilated Media Unit?
The ABB UK620MV is a professional two-row flush-mounted multimedia distribution enclosure from the ABB UK600 range, designed to accommodate networking, telecommunications and multimedia equipment in residential and commercial buildings. Combining a recessed thermoplastic housing with a ventilated sheet steel door finished in RAL 9016 traffic white, it provides a discreet and organised installation solution for modern building communications infrastructure.
Designed with 24 modular positions across two rows, the UK620MV includes two perforated sheet steel mounting plates, a removable DIN rail, a rotatable double socket outlet and cable management provisions. These features allow installers to arrange compatible routers, network switches, distribution accessories and communications equipment within a dedicated enclosure.
The ABB UK620MV measures 497 mm high × 384 mm wide × 97 mm deep and provides IP30 ingress protection, IK07 impact resistance and Class II double insulation. Its ventilated metal door helps facilitate air circulation around installed equipment, while the integrated front frame provides a neat finish for flush-mounted installations.
Key Advantages
- Dedicated multimedia enclosure for networking, telecommunications and home connectivity installations.
- Two-row, 24-module configuration offers flexible equipment mounting space.
- Ventilated sheet steel door promotes passive air circulation around installed electronic equipment.
- Flush-mounted construction allows discreet integration into suitable wall openings.
- Two perforated metal mounting plates support adaptable multimedia device positioning.
- Removable DIN rail accommodates compatible rail-mounted equipment.
- Rotatable double socket outlet provides a convenient power connection point for compatible devices.
- IP30 protection supports indoor electrical and communications installations.
- Class II double insulation and IK07 impact resistance provide electrical and mechanical protection.
- RAL 9016 traffic white finish coordinates with modern building interiors.
- Integrated cable fastening rail helps organise incoming and outgoing cables.
- Reversible door hinging provides flexibility when planning enclosure access.
Key Features
- ABB UK620MV flush-mounted multimedia distribution unit.
- Part of the ABB UK600 Media enclosure range.
- Two-row configuration with 24 modular positions.
- Single-field enclosure with 12 modular positions per row.
- Ventilated sheet steel door with integrated ventilation openings.
- Powder-coated RAL 9016 traffic white frame and door.
- Thermoplastic recessed enclosure housing.
- Two perforated sheet steel mounting plates for multimedia equipment.
- Removable DIN rail for compatible modular accessories.
- Rotatable double socket outlet with mounting arrangement.
- Device mounting straps for convenient equipment installation.
- Integrated cable fastening rail for cable retention.
- Preformed cable-entry positions for organised wiring.
- TIP-in door closure for convenient access.
- 120° door opening angle.
- Left- or right-hand door hinging.
- IP30 ingress protection and IK07 impact resistance.
- Class II double-insulated construction.
- 850 °C glow-wire resistance.
- 497 × 384 × 97 mm overall dimensions.
- ABB manufacturer order code 2CPX031390R9999.
The ABB UK600 Media enclosure system provides a dedicated installation space for building communications and multimedia equipment. The UK620MV combines a recessed enclosure with two perforated steel mounting plates, allowing installers to position suitable networking and telecommunications devices while maintaining an organised internal arrangement.
The included rotatable double socket outlet provides a convenient power connection point for compatible electronic equipment, while the removable DIN rail supports suitable rail-mounted accessories. Integrated cable retention and preformed cable-entry positions help manage power and data cables within the enclosure. The separation and routing of different cable types must follow applicable installation requirements.
The ventilated RAL 9016 steel door provides a professional external finish while helping passive air circulation around installed equipment. The reversible hinge arrangement and 120° opening angle improve access for installation and maintenance. The installer must ensure that equipment heat dissipation, electrical loading, ventilation and enclosure suitability are appropriate for the completed assembly.
Typical Applications
- Residential home networking distribution points.
- Structured data cabling installations.
- Broadband router and network switch enclosures.
- Telecommunications and fibre network termination areas.
- Smart home communication and control equipment.
- Commercial building communications distribution.
- Multimedia and home entertainment infrastructure.
- Compact DIN rail-mounted communications accessories.
- Building refurbishment projects requiring recessed media equipment housing.
