Why Choose the ABB UK630MV UK600 Flush-Mounted Ventilated Media Unit?

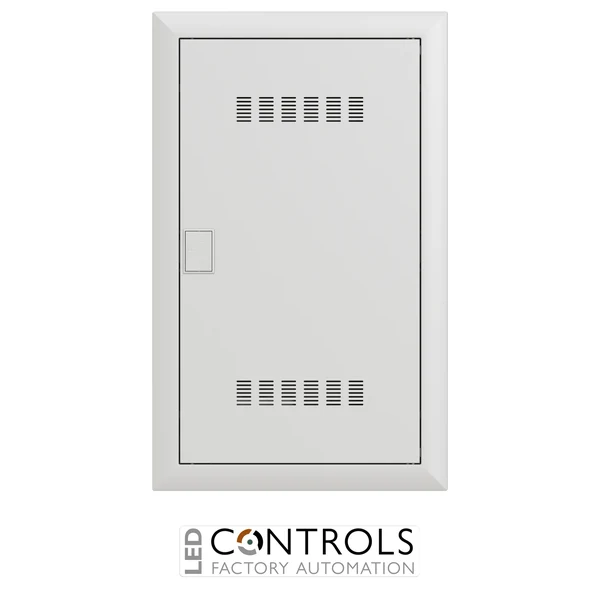

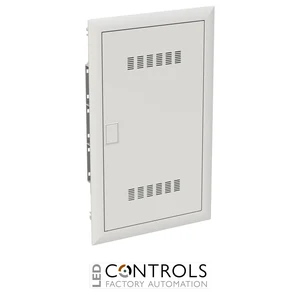

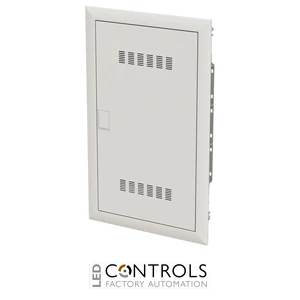

The ABB UK630MV is a professional three-row flush-mounted multimedia distribution enclosure from the ABB UK600 Media range. Designed for residential and commercial communications installations, it provides a dedicated housing for compatible networking, telecommunications, multimedia and smart building equipment. Its ventilated steel door and RAL 9016 traffic white finish combine practical equipment access with a clean, discreet appearance.
Featuring 36 modular positions across three rows, the UK630MV offers flexible internal mounting space for suitable multimedia devices and accessories. The enclosure includes perforated sheet steel mounting plates, a removable DIN rail, a rotatable double socket outlet and cable management provisions, helping installers create organised communications distribution points.
With overall dimensions of 622 mm high × 384 mm wide × 97 mm deep, the ABB UK630MV provides IP30 ingress protection, IK07 impact resistance and Class II double insulation. Its recessed construction, ventilated door and integrated mounting components make it a practical choice for modern building connectivity installations.
Key Advantages
- Dedicated multimedia enclosure for data networking, telecommunications and communications equipment.
- Three-row configuration with 36 modular positions for flexible equipment arrangement.
- Ventilated sheet steel door helps promote passive airflow around installed electronics.
- Flush-mounted design provides a neat installation within suitable wall openings.
- Perforated steel mounting plates support adaptable positioning of compatible multimedia devices.
- Removable DIN rail accommodates suitable rail-mounted communications accessories.
- Rotatable double socket outlet provides a convenient power connection point for compatible equipment.
- Integrated cable fastening rail supports organised conductor and data cable routing.
- IP30 protection supports indoor installation environments.
- IK07 impact resistance provides mechanical durability.
- Class II double-insulated construction supports electrical safety.
- RAL 9016 traffic white finish complements contemporary building interiors.
- Reversible door hinging offers installation flexibility.
Key Features
- ABB UK630MV flush-mounted multimedia distribution enclosure.
- Part of the ABB UK600 Media enclosure system.
- Three-row configuration with 36 modular positions.
- 12 modular positions per row.
- Ventilated sheet steel door with integrated ventilation openings.
- Powder-coated steel front frame and door in RAL 9016.
- Thermoplastic recessed enclosure housing.
- Perforated sheet steel mounting plates for multimedia equipment.
- Removable DIN rail for compatible modular devices.
- Rotatable double socket outlet with mounting bracket.
- Device mounting straps for convenient equipment positioning.
- Integrated cable fastening rail for cable retention.
- Preformed cable-entry positions at the top, bottom, sides and rear.
- TIP-in door closure for convenient access.
- 120° door opening angle.
- Reversible left- or right-hand door hinging.
- IP30 ingress protection and IK07 mechanical impact resistance.
- Class II double insulation.
- 850 °C glow-wire resistance.
- 622 × 384 × 97 mm overall dimensions.
- ABB manufacturer order code 2CPX031391R9999.
The ABB UK600 Media enclosure system provides dedicated mounting space for building communications and multimedia infrastructure. The UK630MV combines a three-row recessed enclosure with perforated sheet steel mounting plates, allowing installers to position compatible networking equipment, telecommunications devices and associated accessories within an organised housing.
The included rotatable double socket outlet provides a convenient connection point for compatible powered equipment, while the removable DIN rail supports suitable rail-mounted accessories. Integrated cable retention and preformed cable-entry positions help organise incoming power and data cables. Installers must maintain the required separation between circuits and follow applicable electrical installation regulations.
The ventilated RAL 9016 steel door provides a durable external finish while supporting passive air circulation. Its reversible hinge arrangement and 120° opening angle improve access for equipment installation and maintenance. The completed assembly must be assessed for equipment dimensions, electrical loading, ventilation requirements and heat dissipation.
Typical Applications
- Residential home networking distribution points.
- Structured data cabling installations.
- Broadband router and network switch enclosures.
- Telecommunications and fibre network termination areas.
- Smart home communication and control equipment.
- Commercial building communications distribution.
- Multimedia and home entertainment infrastructure.
- DIN rail-mounted communications and networking accessories.
- Building refurbishment projects requiring recessed multimedia equipment housing.
