Why Choose the ABB UK640MV Flush-Mounted Ventilated Multimedia Unit 4R RAL9016?

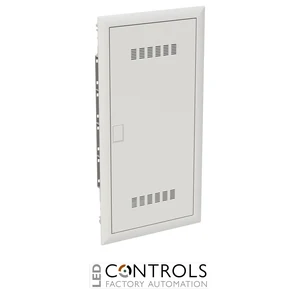

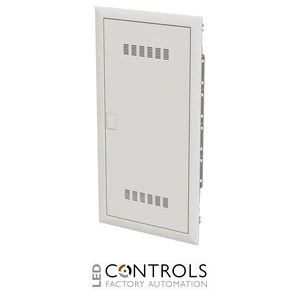

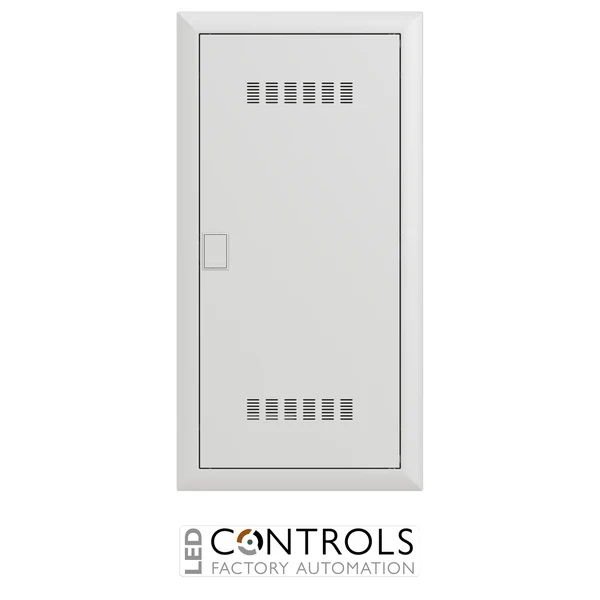

The ABB UK640MV (2CPX031392R9999) is a professional four-row flush-mounted multimedia distribution enclosure from the ABB UK600 range. Designed for residential and commercial communications installations, this enclosure provides an organised space for networking, structured cabling and multimedia equipment. Its integrated ventilated steel door helps promote airflow around suitable internal devices while providing a neat, concealed installation.
The UK640MV combines a durable thermoplastic enclosure housing with a powder-coated sheet steel door and trim frame in RAL 9016 white. Inside, a modular perforated sheet steel mounting plate, DIN rail and rotatable double socket outlet support flexible installation of suitable networking and communications equipment. Integrated cable management provisions help installers route and secure cables neatly within the cabinet.
Measuring 747 mm high, 384 mm wide and 97 mm deep, the ABB UK640MV features a four-row configuration with a nominal capacity of 48 modular spaces. It provides IP30 protection, Class II double insulation and IK07 impact resistance, together with a 63 A rated current and 400 V AC rated operational voltage. Its flush-mounted construction makes it particularly suitable for modern building projects requiring discreet, accessible multimedia distribution.
Key Advantages
- Genuine ABB UK600 flush-mounted multimedia enclosure.
- Four-row configuration with 48 nominal modular spaces.
- Ventilated sheet steel door helps support airflow around suitable internal equipment.
- Perforated steel mounting plate provides flexible mounting positions for multimedia devices.
- Integrated DIN rail supports compatible rail-mounted components.
- Rotatable double socket outlet provides a practical power connection arrangement for suitable equipment.
- IP30 degree of protection for appropriate indoor installations.
- Class II double-insulated construction supports electrical safety.
- IK07 impact resistance provides mechanical protection.
- RAL 9016 white finish complements modern interiors.
- Reversible door hinges support left- or right-hand opening.
- 120-degree door opening improves access during installation and servicing.
- Pre-punched cable entry points and integrated cable fastening rail simplify cable management.
Key Features
- ABB UK600 multimedia enclosure series.
- UK640MV four-row ventilated multimedia unit.
- Manufacturer order code: 2CPX031392R9999.
- Flush-mounted installation for suitable wall recesses.
- Four internal mounting rows.
- 48 nominal modular spaces.
- Thermoplastic enclosure housing.
- Powder-coated sheet steel door with ventilation openings.
- RAL 9016 white door and frame finish.
- Perforated sheet steel mounting plate.
- DIN rail mounting provision.
- Rotatable double socket outlet.
- Integrated cable fastening rail.
- Pre-punched cable entry provisions at the top, bottom, sides and rear.
- TIP-in door closure mechanism.
- Reversible left- or right-hand door hinges.
- 120-degree door opening angle.
- IP30 protection rating.
- Class II double insulation.
- IK07 mechanical impact resistance.
- 747 mm x 384 mm x 97 mm overall dimensions.
Modern residential and commercial buildings increasingly require dedicated spaces for routers, network switches, patching equipment and communications accessories. The ABB UK640MV multimedia enclosure provides a coordinated installation platform with a perforated mounting plate, DIN rail and double socket outlet. These components help installers position compatible devices and organise network and power cabling within a single recessed cabinet.
The ventilated steel door provides airflow openings that can help reduce heat accumulation around suitable internal equipment, although actual cooling performance depends on device heat output, cabinet loading and installation conditions. Unlike ABB's dedicated WiFi-door variants, the UK640MV uses a ventilated metal door rather than a plastic wireless signal insert. Where reliable wireless transmission from inside the cabinet is required, device placement and signal performance should be assessed separately. The IP30 rating provides no rated protection against water ingress, so the enclosure should be installed in a suitable indoor environment.
Typical Applications
- Residential structured cabling and home networking installations.
- Flush-mounted multimedia distribution cabinets.
- Network router and Ethernet switch installations.
- Communications and data distribution equipment.
- Smart home control and building automation infrastructure.
- Apartment and residential development multimedia cabinets.
- Commercial office communications distribution systems.
- Patch panel and network termination arrangements using compatible accessories.
- Recessed equipment cabinets requiring a ventilated protective door.
- Professional electrical and data cabling installation projects.
