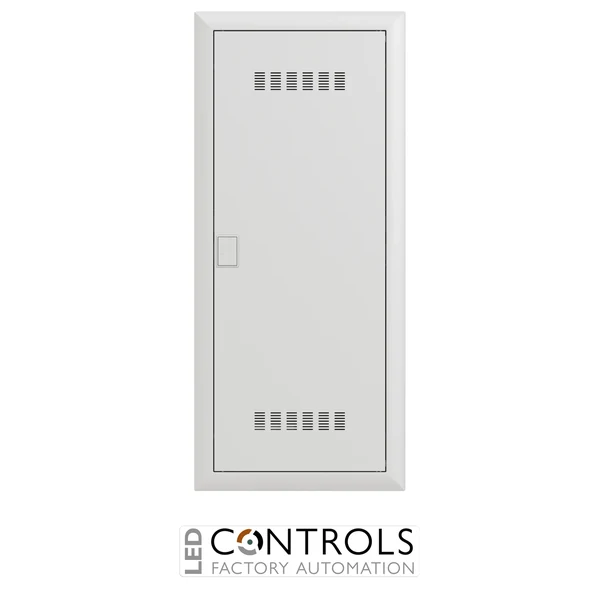

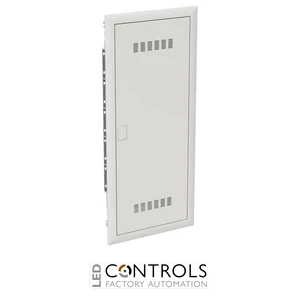

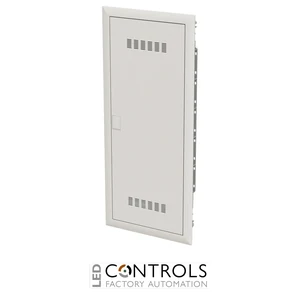

Why Choose the ABB UK650MV Flush-Mounted Ventilated Multimedia Unit 5R RAL9016?
The ABB UK650MV (2CPX031393R9999) is a professional five-row, flush-mounted multimedia enclosure from the ABB UK600 range. Designed for structured cabling, home networking and building communications installations, this spacious enclosure provides a dedicated location for compatible multimedia and data distribution equipment. Its ventilated sheet steel door helps promote airflow while maintaining a neat, concealed appearance.
The UK650MV combines a durable thermoplastic enclosure housing with a RAL 9016 white powder-coated steel door and trim frame. Inside, modular perforated sheet steel mounting plates and DIN rail mounting provisions support flexible equipment installation. An integrated cable fastening rail, pre-punched cable entries and a rotatable double socket outlet provide practical facilities for organising and connecting suitable networking and multimedia devices.
With overall dimensions of 872 mm high, 384 mm wide and 97 mm deep, the ABB UK650MV offers a five-row configuration with 60 nominal modular spaces. It features IP30 protection, Class II double insulation and IK07 mechanical impact resistance. The enclosure is specified for 63 A and 400 V AC at 50/60 Hz, subject to the electrical requirements of the completed installation.
Key Advantages
- Genuine ABB UK600 five-row multimedia enclosure for professional communications installations.
- 60 nominal modular spaces provide a generous internal arrangement for compatible equipment.
- Flush-mounted design integrates neatly into suitable wall recesses.
- Ventilated sheet steel door helps support airflow around installed devices.
- Perforated steel mounting plates provide flexible mounting positions for networking and multimedia equipment.
- DIN rail mounting provision supports compatible rail-mounted accessories.
- Rotatable double socket outlet provides a convenient power connection arrangement.
- Integrated cable fastening rail helps maintain organised internal wiring.
- IP30 protection for suitable indoor environments.
- Class II double-insulated construction and IK07 impact resistance.
- RAL 9016 white finish provides a discreet, professional appearance.
- Reversible door hinges allow left- or right-hand opening.
- 120-degree door opening supports convenient installation and servicing.
Key Features
- ABB UK600 multimedia enclosure series.
- UK650MV five-row ventilated multimedia unit.
- Manufacturer order code: 2CPX031393R9999.
- Flush-mounted or suitable hollow-wall installation.
- Five internal mounting rows.
- 60 nominal modular spaces.
- Thermoplastic enclosure housing.
- Powder-coated sheet steel ventilated door.
- RAL 9016 white door and frame.
- Modular perforated sheet steel mounting plates.
- DIN rail mounting provision.
- Rotatable double socket outlet.
- Integrated cable fastening rail.
- Pre-punched cable entries at the top, bottom, sides and rear.
- TIP-in door closure.
- Reversible left- or right-hand door hinges.
- 120-degree door opening angle.
- IP30 degree of protection.
- Class II double insulation.
- IK07 mechanical impact resistance.
- 872 mm x 384 mm x 97 mm overall dimensions.
- Supplied without N/PE terminal blocks.
Modern homes and commercial buildings increasingly rely on structured cabling, Ethernet networks, communication gateways and connected building technology. The ABB UK650MV multimedia enclosure provides a dedicated five-row installation space for suitable networking and communications equipment. Its perforated steel mounting plates allow flexible positioning of compatible components, while the DIN rail and double socket outlet support practical equipment installation.
The ventilated RAL 9016 steel door helps promote passive airflow around installed equipment. Actual thermal performance depends on equipment loading, heat output, airflow clearance and surrounding conditions, so the installation must be assessed accordingly. The UK650MV is a ventilated metal-door enclosure, not a dedicated wireless signal-transmitting door model. Where WiFi equipment is installed inside the cabinet, wireless coverage and signal attenuation should be considered during system design.
Flexible Recessed Installation and Organised Cable Management
The ABB UK650MV is designed for flush-mounted installation within a suitable wall recess, with a specified niche size of 855 x 367 x 95 mm. For compatible hollow-wall installations, the specified cut-out dimensions are 828 x 340 x 88 mm. Installers should verify the wall construction, mounting accessories and installation clearances against ABB's instructions before preparing the opening.
Pre-punched cable entries on the top, bottom, sides and rear provide flexible cable routing options, while the integrated cable fastening rail helps secure and organise conductors. The enclosure features Class II double insulation, IP30 protection and IK07 impact resistance. As IP30 provides no rated protection against water ingress, the UK650MV should be installed only in suitable indoor environments. Compatible electrical accessories must be selected and installed in accordance with the applicable regulations.
Typical Applications
- Residential structured cabling and home networking installations.
- Five-row flush-mounted multimedia distribution cabinets.
- Ethernet network switches and compatible router installations.
- Building communications and data distribution equipment.
- Smart home gateways and building automation infrastructure.
- Apartment buildings and residential development multimedia cabinets.
- Commercial office communications distribution systems.
- Patch panels and structured cabling termination arrangements using compatible accessories.
- Recessed networking equipment cabinets requiring a ventilated protective door.
- Professional electrical, networking and data cabling installations.
