Why Choose the ABB UK624MB UK600 Flush-Mounted Media Distribution Unit?

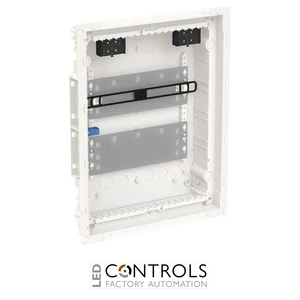

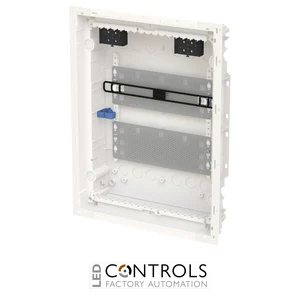

The ABB UK624MB, manufacturer order code 2CPX031394R9999, is a two-row flush-mounted multimedia distribution enclosure from the ABB UK600 range. Designed for structured cabling, communication equipment and home networking installations, this media unit provides a practical housing for routers, network switches, data distribution components and other compatible multimedia devices.

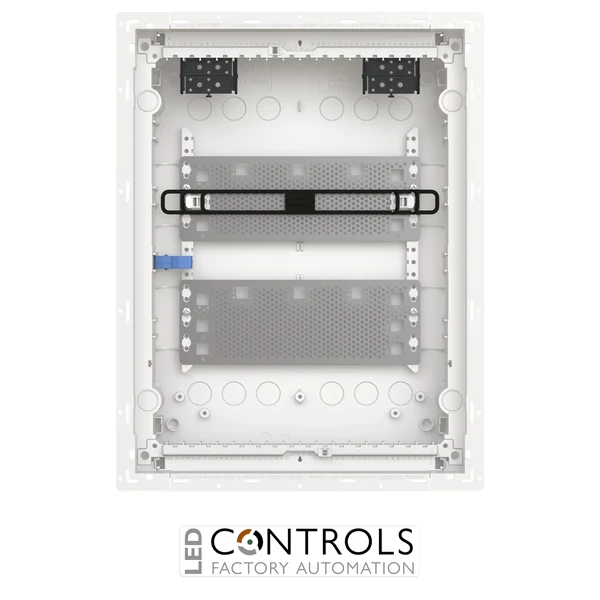

Unlike a conventional consumer unit primarily intended for circuit protection devices, the ABB UK624MB media enclosure is designed to accommodate communications and multimedia equipment. It incorporates modular perforated sheet steel mounting plates and a removable DIN rail, allowing installers to arrange compatible equipment according to the requirements of the installation.
Manufactured from thermoplastic, the UK624MB features Class II double-insulated construction, an IP30 degree of protection and IK07 impact resistance. Its RAL 9016 traffic white finish provides a clean appearance suitable for residential and commercial interiors.
With overall dimensions of 472 mm high × 362 mm wide × 97 mm deep, the enclosure is designed for recessed installation in suitable wall structures. The UK624MB is supplied as a basic media enclosure without a decorative trim frame or door, allowing compatible finishing components to be selected separately.
Key Advantages
- Dedicated multimedia distribution enclosure for structured cabling and communication equipment.
- Two-row configuration provides an organised internal mounting arrangement.
- Flush-mounted design supports discreet installation within suitable walls.
- Modular perforated sheet steel mounting plates provide flexible equipment fixing positions.
- Removable DIN rail supports installation of compatible rail-mounted accessories.
- Integrated cable-retaining rail assists with organised cable routing and strain relief.
- Preformed cable-entry positions simplify routing cables into the enclosure.
- Class II double insulation provides an additional electrical insulation characteristic.
- IP30 protection classification supports use in suitable indoor environments.
- IK07 impact resistance provides a defined level of mechanical protection.
- Thermoplastic construction offers a practical housing for multimedia installations.
- RAL 9016 traffic white finish complements contemporary building interiors.
- Supplied without a door or trim frame for flexible selection of compatible front accessories.
- Part of the coordinated ABB UK600 enclosure system.
Key Features
- ABB UK600 multimedia enclosure range.
- Manufacturer model: UK624MB.
- ABB order code: 2CPX031394R9999.
- Product configuration: Flush-mounted media unit, basic version.
- Number of rows: 2.
- Enclosure height: 472 mm.
- Enclosure width: 362 mm.
- Enclosure depth: 97 mm.
- Housing material: Thermoplastic.
- Colour: RAL 9016 traffic white.
- Degree of protection: IP30.
- Mechanical impact resistance: IK07.
- Protection class: Class II, double insulated.
- Rated current: 63 A.
- Rated operational voltage: 400 V AC, 50/60 Hz.
- Glow-wire resistance: 850 °C.
- Perforated sheet steel mounting plates for compatible multimedia equipment.
- Removable DIN rail for compatible rail-mounted components.
- Integrated cable-retaining rail.
- Preformed cable-entry openings at the top, bottom, sides and rear.
- Supplied without a door or decorative trim frame.
Modern buildings increasingly require dedicated locations for networking and communications equipment. The ABB UK624MB multimedia enclosure provides a practical solution for consolidating compatible equipment within a recessed wall installation, helping reduce exposed wiring and improve the organisation of building communications infrastructure.
The enclosure's modular perforated sheet steel mounting plates allow suitable equipment to be secured using appropriate fixing methods. This is particularly useful for multimedia components that do not follow the standard modular format used by conventional circuit protection devices. The removable DIN rail provides an additional mounting option for compatible accessories.
Cable management is supported by an integrated cable-retaining rail and preformed cable-entry openings. These features help installers plan cable routes and arrange incoming communications wiring while reducing unnecessary cable movement. Appropriate separation between power and data circuits must be maintained according to the equipment specifications and applicable installation requirements.
The Class II double-insulated thermoplastic housing is designed for professional electrical enclosure applications. Its IP30 rating provides protection against access by solid objects of the specified size but does not provide a rated level of protection against water ingress. The enclosure should therefore be installed in an environment suitable for its protection classification.
The UK624MB is supplied without a decorative trim frame or door. Compatible ABB UK600 front accessories can be selected according to the completed installation. Where routers, network switches or other heat-producing equipment are installed, the enclosure arrangement must provide suitable ventilation and sufficient space for the devices and their connections.
The UK624MB is a media distribution enclosure rather than a complete networking system or pre-equipped consumer unit. Network devices, communications modules, sockets and other installation-specific equipment must be selected separately unless expressly included in the chosen assembly.
Typical Applications
- Residential multimedia distribution systems.
- Home networking and structured cabling installations.
- Flush-mounted communications equipment enclosures.
- Broadband router and network switch installations.
- Data and telecommunications distribution points.
- Apartment and residential development networking infrastructure.
- Smart home communication systems.
- Building automation communications equipment.
- Commercial office data distribution.
- Low-voltage multimedia equipment mounting.
- Compatible DIN-rail communications accessories.
- Electrical and data installation refurbishment projects.
- Professional structured cabling and multimedia system installations.
