Why Choose the ABB UK636MB UK600 Flush-Mounted Multimedia Distribution Unit?

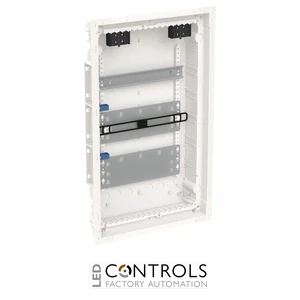

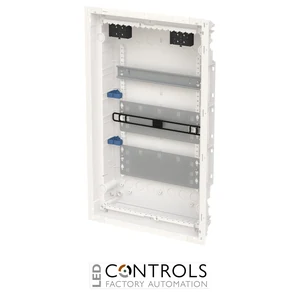

The ABB UK636MB, manufacturer order code 2CPX031395R9999, is a three-row, 36-module flush-mounted multimedia distribution enclosure without a door from the ABB UK600 Media range. Designed for structured cabling, home networking and communications installations, this enclosure provides an organised housing for compatible multimedia devices, network components and data distribution equipment.
Featuring a thermoplastic housing in RAL 9016 traffic white, the UK636MB combines practical recessed installation with a professional appearance. Its IP30 degree of protection, IK07 impact resistance and Class II double-insulated construction make it suitable for appropriately specified indoor installations.

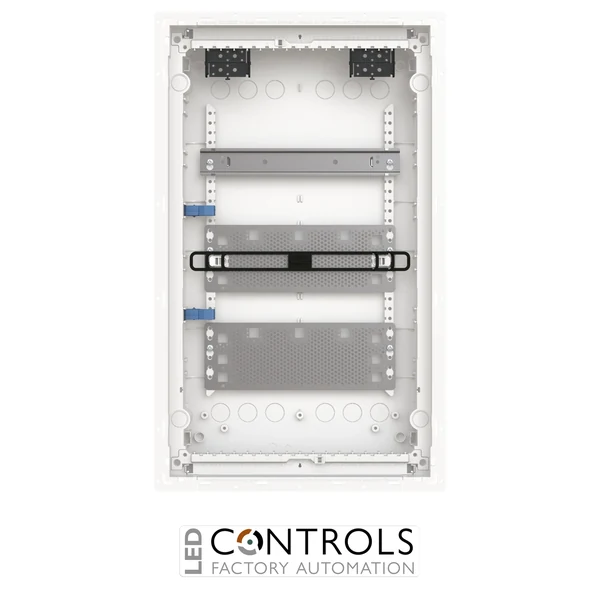

The enclosure is supplied with modular perforated sheet steel mounting plates and a removable DIN rail, providing flexible mounting arrangements for compatible multimedia equipment. An integrated cable-fastening rail and preformed cable-entry openings help installers route and organise communication cables within the enclosure.
Measuring 597 mm high × 362 mm wide × 97 mm deep, the ABB UK636MB supports flush-mounted and suitable hollow-wall installations. Its basic configuration is supplied without a decorative trim frame or door, allowing compatible finishing accessories to be selected separately according to the installation requirements.
Key Advantages
- Dedicated multimedia enclosure for networking, telecommunications and structured cabling applications.
- Three-row, 36-module format provides additional installation space compared with smaller UK600 media enclosures.
- Flush-mounted construction supports discreet installation within suitable walls.
- Modular perforated steel mounting plates accommodate compatible multimedia equipment.
- Removable DIN rail provides an additional mounting option for suitable accessories.
- Integrated cable-fastening rail supports organised cable routing and retention.
- Preformed cable-entry positions offer flexibility when planning cable routes.
- IP30 protection supports installation in appropriate indoor environments.
- IK07 impact resistance provides a defined level of mechanical protection.
- Class II double insulation supports the enclosure's electrical insulation design.
- RAL 9016 traffic white finish complements modern residential and commercial interiors.
- Doorless basic configuration allows compatible front accessories to be selected separately.
- Lateral and bottom expansion options support compatible UK600 system configurations.
- Part of the coordinated ABB UK600 electrical and multimedia enclosure family.
Key Features
- ABB UK600 Media enclosure system.
- Model: UK636MB.
- ABB order code: 2CPX031395R9999.
- Product type: Flush-mounted multimedia distribution unit.
- Three-row configuration.
- 36 nominal modular positions.
- 12 modular positions per row.
- 597 mm overall height.
- 362 mm overall width.
- 97 mm overall depth.
- IP30 degree of protection.
- IK07 impact resistance.
- Class II double-insulated construction.
- Thermoplastic enclosure housing.
- RAL 9016 traffic white colour.
- Modular perforated sheet steel mounting plates.
- Removable DIN rail.
- Integrated cable-fastening rail.
- Preformed cable entries at the top, bottom, sides and rear.
- Flush-mounted and hollow-wall installation arrangements.
- Supplied without door or decorative trim frame.
- Suitable for compatible lateral and bottom expansion arrangements.
Modern residential and commercial buildings increasingly depend on reliable communications infrastructure. The ABB UK636MB multimedia enclosure provides a dedicated location for organising compatible networking equipment, structured cabling connections and communications accessories, helping reduce exposed wiring and improve accessibility for future maintenance.
Unlike conventional modular consumer units designed primarily for circuit protection equipment, the UK636MB incorporates perforated sheet steel mounting plates suited to multimedia devices that may require alternative fixing arrangements. The removable DIN rail further expands the available mounting options for compatible rail-mounted equipment.
The three-row format provides additional installation space for structured cabling arrangements. This makes the UK636MB useful where a smaller two-row enclosure may not provide sufficient room for the required equipment, connectors and cable routing. Actual usable space depends on the dimensions, ventilation requirements and mounting arrangements of the selected devices.
Preformed cable-entry positions at the top, bottom, sides and rear help installers plan cable routes according to the building layout. The integrated cable-fastening rail supports cable retention and organised wiring, while the enclosure's recessed mounting arrangement allows communications infrastructure to be integrated neatly into suitable walls.
The Class II thermoplastic housing provides double-insulated construction, while the IP30 and IK07 classifications define the enclosure's protection against solid-object access and mechanical impact. IP30 does not provide rated protection against water ingress, so the UK636MB should be installed in a suitable indoor environment.
The UK636MB is supplied without a door or decorative trim frame. Suitable ABB UK600 finishing components must be selected separately where required. When installing routers, switches, power supplies or other active equipment, installers must also consider ventilation, heat dissipation, power connections and appropriate separation of electrical and data cabling.
The UK636MB is an empty multimedia distribution enclosure with mounting provisions, not a pre-equipped networking system. Communications devices, patch panels, sockets and other installation-specific accessories must be selected separately unless explicitly supplied as part of another assembly.
Typical Applications
- Residential structured cabling installations.
- Home networking and broadband distribution.
- Flush-mounted multimedia distribution systems.
- Router and network switch installations.
- Ethernet and data cable distribution points.
- Telecommunications equipment housing.
- Smart home communications infrastructure.
- Building automation and control network installations.
- Apartment and residential development networking.
- Commercial office communications systems.
- Low-voltage multimedia equipment mounting.
- Compatible DIN-rail communications accessories.
- Networking and structured cabling refurbishment projects.
- Professional electrical and data installation work.
