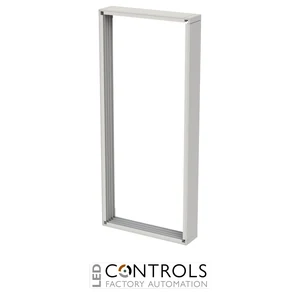

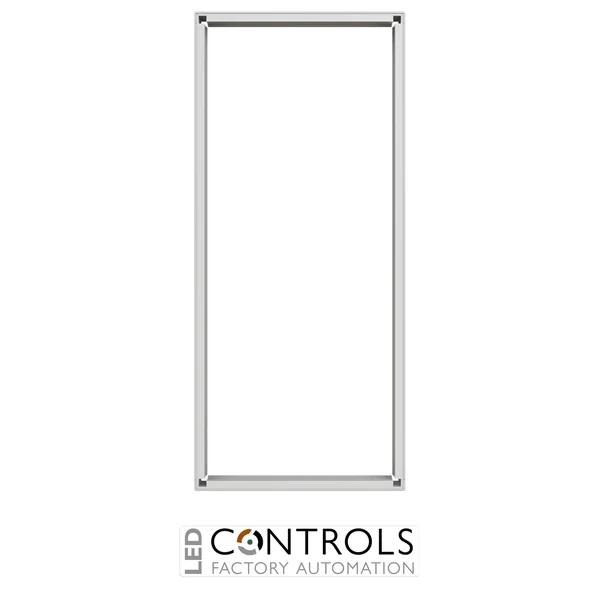

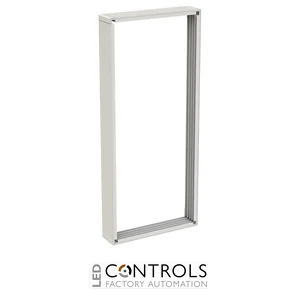

Why Choose the ABB AP660 UK600 Surface Mounting Kit?
The ABB AP660 is a purpose-designed five-row surface mounting kit for compatible ABB UK600 electrical distribution enclosures. Designed for the UK66-series, this genuine ABB accessory allows suitable flush-mounted distribution enclosures to be adapted for surface-mounted or partially recessed installation using an extension frame.
Manufactured from durable plastic and specified in RAL 9016 traffic white, the AP660 provides a coordinated mounting solution for five-row UK600 consumer units with an associated capacity of 60 modular positions. Its design incorporates predetermined break-out points to support the required installation arrangement.
Measuring 384 mm wide × 872 mm high × 90 mm deep, the ABB AP660 is intended for use with compatible UK600 enclosures fitted with a standard door. It is particularly useful for electrical installation projects where fully recessed mounting is impractical or where an existing installation needs to be converted to a surface-mounted or partially recessed arrangement.
Key Advantages
- Surface mounting conversion allows compatible UK600 enclosures to be installed on the wall surface.
- Partially recessed installation provides additional mounting flexibility.
- Designed for ABB UK66-series enclosures to support correct system compatibility.
- Five-row configuration matches UK600 distribution assemblies with 60 modular positions.
- Predetermined break-out points help accommodate different installation requirements.
- Durable plastic construction provides a practical extension frame.
- RAL 9016 traffic white finish coordinates with compatible UK600 enclosure accessories.
- 90 mm depth supports the surface mounting conversion arrangement.
- Suitable for refurbishment projects where the original recessed installation method needs to change.
- Genuine ABB accessory designed for integration with the UK600 enclosure system.
Key Features
- ABB AP660 surface mounting and extension frame kit.
- Part of the ABB UK600 electrical enclosure range.
- Designed for UK66-series five-row enclosures.
- 60-module associated enclosure capacity.
- Suitable for surface-mounted installation.
- Suitable for partially recessed installation.
- Supports conversion from compatible flush-mounted enclosure arrangements.
- Predetermined break-out points for installation adaptation.
- Plastic construction.
- RAL 9016 traffic white colour designation.
- 384 × 872 × 90 mm overall dimensions.
- Standard-door compatibility; not intended for alternative door configurations unless separately confirmed.
- Designed as a mounting accessory rather than a complete electrical enclosure.
- Supplied as one surface mounting kit.
- ABB manufacturer order code 2CPX031406R9999.
Flexible Surface and Partially Recessed Mounting with ABB UK600
The ABB UK600 enclosure system provides installation flexibility through compatible wall boxes, internal equipment carriers, front covers and mounting accessories. The AP660 extends this flexibility by allowing suitable five-row UK66 distribution enclosures to be installed in surface-mounted or partially recessed configurations instead of requiring a fully recessed wall opening.
The AP660 extension frame incorporates predetermined break-out points that support adaptation to the selected mounting arrangement. This can be particularly useful in refurbishment projects, building alterations and electrical distribution upgrades where wall construction, available recess depth or installation constraints make conventional flush mounting less practical.
The AP660 is specifically intended for compatible UK600 enclosures with standard doors. It does not replace the enclosure housing, internal device carrier, front door or electrical protection equipment. Installers should verify the exact enclosure and door configuration before assembly and follow ABB installation instructions to maintain the required mechanical protection and suitability of the completed distribution board.
Typical Applications
- ABB UK66 five-row distribution enclosure installations.
- Surface-mounted electrical consumer units.
- Partially recessed electrical distribution boards.
- Residential electrical distribution upgrades.
- Commercial building electrical installations.
- Electrical refurbishment projects with limited wall recess depth.
- Conversion of compatible UK600 flush-mounted assemblies.
- Building services distribution board installations.
- Professional electrical enclosure assembly and maintenance.
