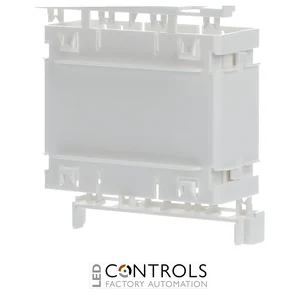

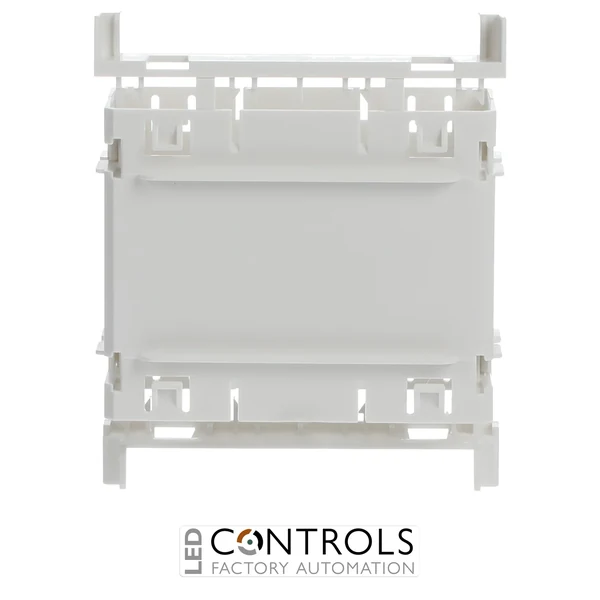

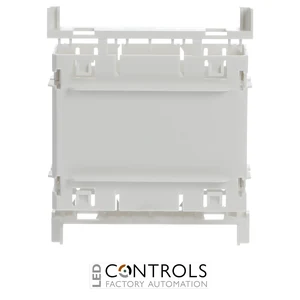

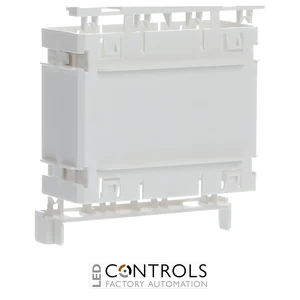

Why Choose the ABB UZB2 Connecting Channel for UK600 Enclosures?
The ABB UZB2 Connecting Channel (2CPX031408R9999) is a genuine ABB UK600 enclosure accessory designed to connect adjacent electrical distribution enclosures. Also described as a UK600 coupler set, it enables compatible consumer units to be arranged horizontally or vertically while providing a connection route for cross-wiring between enclosure sections.
Part of the ABB UK600 Enclosures range, the UZB2 is suitable for compatible distribution enclosures with one to five rows. Its flexible connection arrangement allows electrical installers and panel builders to create combined enclosure layouts where a single distribution board may not provide the required installation space.
Manufactured from plastic, the connecting channel measures 109 mm wide, 109 mm high and 36 mm deep. The compact accessory is designed to support modular enclosure combinations without requiring a completely different distribution system. It is particularly useful where adjacent UK600 enclosures need to accommodate related circuits or equipment while maintaining an organised route for interconnecting conductors.
Key Advantages
- Genuine ABB UK600 connecting channel and coupler set.
- Allows compatible UK600 consumer units to be combined horizontally or vertically.
- Provides a practical connection route for cross-wiring between adjacent enclosures.
- Suitable for compatible one- to five-row UK600 distribution enclosures.
- Supports flexible electrical distribution board layouts and enclosure expansion.
- Compact 109 x 109 x 36 mm dimensions for integration into the UK600 enclosure system.
- Plastic construction designed for the intended enclosure accessory application.
- Helps installers organise connections between neighbouring distribution sections.
- Suitable for residential, commercial and professional electrical installation projects.
- Genuine ABB accessory with manufacturer order code 2CPX031408R9999.
Key Features
- ABB UK600 enclosure accessory.
- Model: UZB2.
- Manufacturer order code: 2CPX031408R9999.
- Accessory type: Connecting channel / coupler set.
- Horizontal enclosure connection supported.
- Vertical enclosure connection supported.
- Cross-wiring between adjacent consumer units supported.
- Compatible with suitable UK600 enclosures from one to five rows.
- Plastic material.
- RAL 9016 colour designation.
- 109 mm overall width.
- 109 mm overall height.
- 36 mm overall depth.
- Approximately 0.133 kg net weight.
- One connecting channel set per sales unit.
- Designed for professional installation as part of the ABB UK600 enclosure system.
Flexible Horizontal and Vertical UK600 Enclosure Connections
The ABB UZB2 connecting channel is designed for installations where two compatible UK600 consumer units need to be positioned next to one another. Whether enclosures are arranged side by side or one above the other, the connecting channel provides a dedicated interface for the intended enclosure combination.
This flexibility is useful when planning larger electrical distribution systems, separating groups of circuits or combining compatible enclosure sections into a coordinated installation. The UZB2 supports both horizontal and vertical enclosure arrangements, helping electrical contractors work with the modular layout possibilities of the ABB UK600 range.
Practical Cross-Wiring Between Adjacent Distribution Enclosures
Electrical installations involving multiple distribution enclosures may require conductors to pass between neighbouring sections. The ABB UZB2 UK600 coupler set is specifically intended to facilitate cross-wiring between connected consumer units, providing a purpose-designed alternative to improvised enclosure connections.
Using an accessory developed for the UK600 system helps maintain compatibility with the intended enclosure arrangement. The connecting channel does not replace the need for correct conductor sizing, circuit protection, cable segregation or appropriate mechanical installation. Installers should follow ABB's assembly instructions and verify that the completed enclosure combination meets the relevant electrical and protection requirements.
Installation and Compatibility Considerations
The ABB UZB2 is intended for use with compatible ABB UK600 enclosures featuring one to five rows. Before installation, the enclosure models, mounting orientation and available connection positions should be checked against ABB documentation. The accessory is designed for the connection of adjacent enclosure sections rather than as a standalone wiring enclosure.
The UZB2 does not have a separately established IP rating for independent use. The degree of protection of the completed installation depends on the connected enclosures, their configuration and correct assembly. Installation should be carried out by a competent electrical professional in accordance with the manufacturer's instructions and applicable regulations.
Typical Applications
- Horizontal connection of compatible ABB UK600 consumer units.
- Vertical connection of compatible UK600 electrical distribution enclosures.
- Cross-wiring between adjacent distribution board sections.
- Residential electrical distribution installations requiring multiple enclosures.
- Commercial electrical distribution board assemblies.
- Modular consumer unit expansion projects.
- Combined distribution enclosure installations with separate circuit groups.
- Professional electrical panel assembly and enclosure integration.
- Refurbishment and extension of compatible ABB UK600 distribution systems.
- Electrical installation projects requiring organised inter-enclosure conductor routing.
