Why Choose the ABB UZB3 Horizontal Partition for UK600 Enclosures?

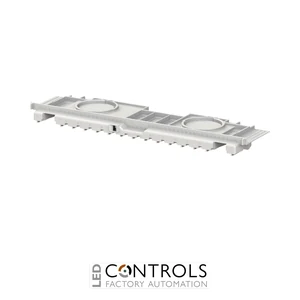

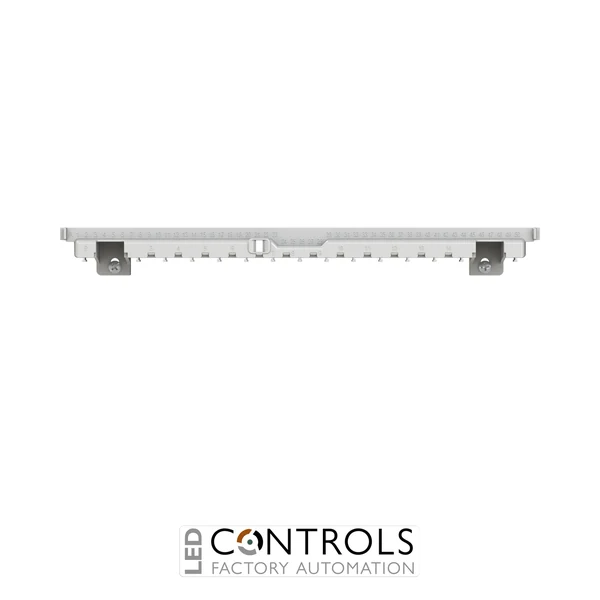

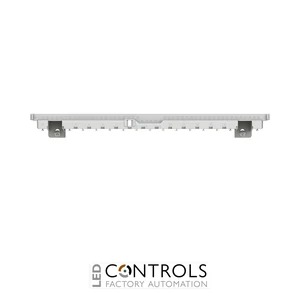

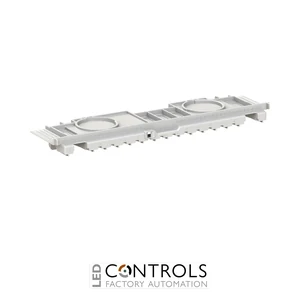

The ABB UZB3 Horizontal Partition (2CPX031409R9999) is a genuine ABB enclosure accessory designed for the UK600 electrical distribution enclosure system. It provides a practical horizontal separation between installation rows while incorporating an integrated terminal carrier and provisions for compatible socket outlets and communications modules.
Designed to support organised electrical distribution and multimedia installations, the UZB3 allows installers to create defined sections within a compatible UK600 enclosure. This is particularly useful where different equipment groups or circuit functions need to be arranged separately within the same cabinet.
The partition measures 294 mm wide and 68 mm high and is manufactured from plastic. Its integrated terminal mounting arrangement and preformed knock-out positions support flexible enclosure configurations, including provision for two ZE224-type socket outlets and five communications module positions.
Key Advantages
- Genuine ABB UK600 horizontal partition for compatible distribution enclosures.
- Provides horizontal separation between enclosure rows to support organised equipment layouts.
- Integrated terminal carrier allows compatible terminal components to be mounted within the enclosure.
- Two socket outlet knock-out positions for compatible ZE224-type socket arrangements.
- Five communications module knock-out positions for suitable multimedia and data connection accessories.
- Supports combined electrical distribution and communications installations within compatible enclosure configurations.
- 294 mm width and 68 mm height for integration into the UK600 system.
- Plastic construction suited to the intended internal partition application.
- Preformed openings allow installers to configure the partition according to project requirements.
- Purpose-designed ABB accessory helps maintain a coordinated enclosure installation.
Key Features
- ABB UK600 enclosure accessory.
- Model: UZB3.
- Manufacturer order code: 2CPX031409R9999.
- Horizontal partition design for compatible UK600 enclosures.
- Integrated terminal carrier.
- Provision for two ZE224-type socket outlets.
- Five knock-out positions for communications modules.
- Potential separation between enclosure rows when installed in an appropriate configuration.
- Plastic material.
- Untreated surface finish.
- 294 mm overall width.
- 68 mm overall height.
- RAL 9016 traffic white colour designation.
- One partition per sales unit.
- Designed for professional electrical and communications enclosure installations.
Organised Horizontal Separation and Integrated Terminal Mounting
Electrical distribution enclosures often contain equipment with different installation functions, including protective devices, terminal connections and communications accessories. The ABB UZB3 horizontal partition provides a dedicated separation element between rows, helping installers establish an organised internal arrangement.
The integrated terminal carrier provides a convenient mounting location for compatible terminal components. This can simplify internal equipment positioning and help maintain a structured wiring layout. The partition itself does not include a complete terminal block assembly, so any required terminal components should be selected separately according to the installation design.
Flexible Socket Outlet and Communications Module Integration
One of the distinguishing features of the ABB UZB3 is its combination of horizontal separation with preformed mounting provisions for power and communications accessories. The partition includes knock-out positions for two compatible ZE224-type socket outlets, together with five positions for communications modules.
These features are useful in compatible UK600 multimedia and combined distribution installations where power outlets, data connections and related accessories need to be accommodated in an organised arrangement. The socket and communications module positions are preparation features rather than pre-installed equipment. The relevant accessories must be selected separately, and any unused knock-outs should remain intact unless required for the installation.
Installation and Compatibility Considerations
The ABB UZB3 2CPX031409R9999 is designed for the UK600 enclosure system. Before installation, the specific enclosure model, available internal mounting positions and intended socket or communications accessories should be checked against the manufacturer's instructions.
The UZB3 is an internal partition and should not be treated as a standalone electrical enclosure or as an independently rated protective barrier. The protection rating, electrical separation and overall compliance of the completed assembly depend on the selected enclosure, installed components and correct assembly. Installation should be carried out by a competent electrical professional in accordance with applicable regulations.
Typical Applications
- Horizontal separation within compatible ABB UK600 distribution enclosures.
- Organised electrical distribution board assemblies.
- Combined electrical and multimedia enclosure installations.
- Internal terminal mounting arrangements.
- Installation of compatible ZE224-type socket outlets.
- Integration of compatible keystone communications modules.
- Residential structured cabling and electrical distribution projects.
- Commercial building electrical and communications installations.
- Smart home and building automation enclosure configurations.
- Professional panel assembly, refurbishment and enclosure customisation.
