Why Choose the ABB UZD650 Image Insert for UK600 Design Frames?
The ABB UZD650 Image Insert (2CPX031780R9999) is a genuine ABB decorative enclosure accessory from the UK600 Enclosures range. Designed for compatible five-row UK600 distribution enclosures, it transforms a conventional electrical cabinet front into a personalised picture-frame display while retaining convenient access to the equipment behind it.

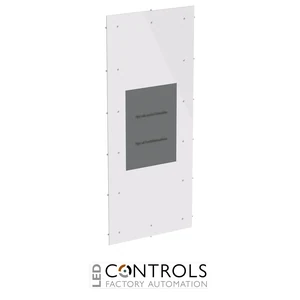

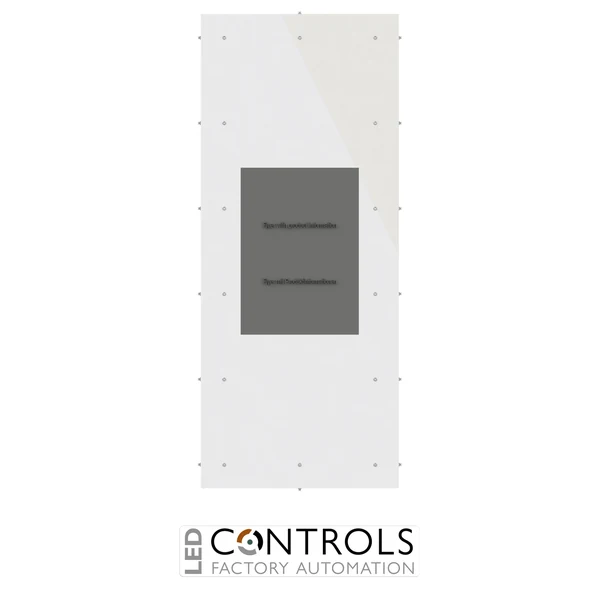

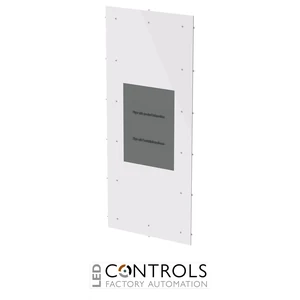

The UZD650 is specifically designed for the ABB BL650D interchangeable design frame, providing a coordinated solution for five-row UK600 installations. Its picture-frame construction incorporates a backing plate and protective glass pane, allowing installers or property owners to display their own photographs, artwork or decorative images.
Measuring 469 mm wide, 844 mm high and 6 mm deep, the ABB UZD650 offers a discreet decorative solution for residential and commercial interiors. It is associated with the IP30 protection classification of the specified design-frame arrangement and is intended for use as part of a correctly assembled ABB UK600 enclosure system.
Key Advantages
- Genuine ABB UK600 decorative image insert.
- Designed specifically for the BL650D interchangeable design frame.
- Suitable for compatible five-row UK600 enclosure configurations.
- Picture-frame design allows personalised photographs, artwork or decorative images to be displayed.
- Protective glass pane provides a finished presentation surface.
- Integrated backing plate supports the picture-frame arrangement.
- Helps electrical distribution enclosures blend into modern residential and commercial interiors.
- 469 x 844 x 6 mm dimensions for the designated five-row frame configuration.
- Compatible with the ABB UK600 interchangeable design-frame concept.
- Suitable for new installations, refurbishment projects and decorative enclosure upgrades.
- Genuine manufacturer accessory identified by 2CPX031780R9999.
Key Features
- ABB UK600 enclosure accessory.
- Model: UZD650.
- ABB order code: 2CPX031780R9999.
- Product designation: UZD650 Image Insert for Design Frame 5R.
- Accessory type: Decorative picture-frame insert.
- Compatible design frame: ABB BL650D.
- Intended enclosure configuration: Five rows.
- Compatible enclosure size family: UK66..
- Picture-frame construction for user-selected images.
- Backing plate included.
- Protective glass pane included.
- 469 mm width.
- 844 mm height.
- 6 mm depth.
- IP30 classification when used in the specified enclosure arrangement.
- Approximately 3.94 kg net weight.
- One insert per sales unit.
Transform an Electrical Enclosure into a Personalised Picture Display
The ABB UZD650 picture-frame insert provides a decorative alternative to a conventional electrical distribution enclosure front. When combined with the compatible BL650D design frame, it allows a user-selected image to become part of the enclosure's visible appearance.
This approach is particularly useful in living rooms, hallways, apartments and other interior spaces where an electrical distribution board needs to remain accessible without becoming a prominent visual feature. Photographs, artwork or other suitable decorative prints can be displayed behind the protective glass pane, helping the enclosure complement the surrounding interior design.
The backing plate and glass pane form part of the picture-frame insert assembly. The selected image and the compatible BL650D design frame should be provided separately as required.
Designed for the ABB BL650D Five-Row Design Frame
The UZD650 is intended for use with the ABB BL650D interchangeable design frame, manufacturer order code 2CPX031797R9999. This frame is designed for compatible five-row UK600 enclosure arrangements, commonly identified by the UK66.. enclosure family.
ABB offers other design inserts for the same five-row frame concept, including pinboard, mirror, stainless steel-effect, LED panel and wood-effect versions. The UZD650 is the image or picture-frame variant, intended specifically for displaying a personalised picture.
The UZD650 should not be assumed to fit smaller two-, three- or four-row design frames. Matching insert sizes are available within the wider ABB UZD range, and the correct frame and enclosure combination should be confirmed before ordering.
Installation, Access and Enclosure Protection
The ABB UZD650 is a decorative design-frame insert, not a complete consumer unit or standalone electrical enclosure. It must be installed using the specified ABB frame and compatible UK600 enclosure components.
The product is associated with an IP30 protection classification in the intended assembly. The actual protection and electrical performance of the completed installation depend on the enclosure, frame, insert and correct installation. Electrical ratings associated with the UK600 system should not be interpreted as independent ratings for the decorative picture insert.
Installers should follow ABB's fitting instructions, ensure that the enclosure remains accessible for inspection and maintenance, and avoid modifications that could compromise the completed assembly.
