Why Choose the ABB UK612E2 Flush-Mounted Consumer Unit with Door and N/PE Terminals?

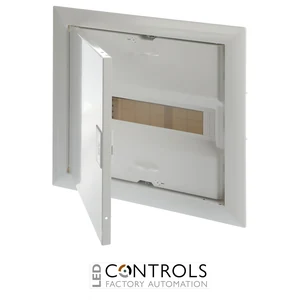

The ABB UK612E2 Flush-Mounted Consumer Unit (2CPX077840R9999) is a complete, single-row electrical distribution enclosure from the ABB UK600 Enclosures range. Designed to accommodate 12 modular devices, it combines a robust thermoplastic enclosure, removable DIN rail device support, protective internal cover, integrated neutral and protective earth screw terminals, and a powder-coated steel door in RAL 9016 traffic white.
Engineered for professional residential and commercial electrical installations, the UK612E2 provides a compact and organised solution for housing compatible modular circuit protection and control devices. The enclosure offers IP30 protection, Class II double insulation and IK07 mechanical impact resistance, with a rated current of 63 A and rated operational voltage of 400 V AC, 50/60 Hz.
With overall dimensions of 372 mm high, 384 mm wide and 97 mm deep, the ABB UK612E2 is suitable for flush-mounted installation where a neat, low-profile distribution board is required. Its reversible steel door, convenient TIP-in closure, pre-punched cable entry provisions and included N/PE terminal arrangement make it a practical choice for electricians seeking a complete ABB UK600 consumer unit rather than an empty enclosure.
Key Advantages
- Genuine ABB UK600 flush-mounted consumer unit with door and terminal equipment.
- 12 modular spaces arranged in one DIN rail row.
- N/PE screw terminal blocks included for neutral and protective earth connections.
- IP30 protection for suitable indoor electrical distribution installations.
- Class II double-insulated construction for the specified enclosure assembly.
- IK07 impact resistance for enhanced mechanical durability.
- 63 A rated current and 400 V AC operational voltage.
- RAL 9016 traffic white steel door with powder-coated finish.
- TIP-in door closure for convenient access.
- Reversible door hinges for left- or right-hand opening.
- 120° door opening angle for practical access to installed devices.
- Removable DIN rail device support for convenient assembly.
- Pre-punched cable entry provisions on multiple enclosure surfaces.
- Integrated cable fastening rail to assist internal wiring organisation.
- 850°C glow-wire resistance and conformity with EN 60670-24.
Key Features
- Manufacturer: ABB.
- Model: UK612E2.
- ABB order code: 2CPX077840R9999.
- Product series: UK600.
- Enclosure type: Flush-mounted consumer unit.
- Number of rows: 1.
- Nominal modular capacity: 12 modules.
- DIN rail row spacing: 125 mm.
- Door type: Single, solid sheet steel door.
- Door colour: RAL 9016 traffic white.
- Door finish: Powder-coated.
- Door closure: TIP-in mechanism.
- Door opening angle: 120°.
- Door handing: Left or right, reversible.
- Housing material: Thermoplastic.
- Protection class: Class II, double insulated.
- Ingress protection: IP30.
- Mechanical impact protection: IK07.
- Rated current: 63 A.
- Rated operational voltage: 400 V AC.
- Rated frequency: 50/60 Hz.
- Neutral and protective earth terminals: Included.
- Internal cover: Plastic with 90° press-and-turn fasteners.
- Device carrier: Included, with removable device support.
- Cable fastening rail: Integrated.
Complete Consumer Unit with Neutral and Protective Earth Terminals
Unlike an empty distribution enclosure, the ABB UK612E2 is supplied with a coordinated set of enclosure components, including the trim frame, solid steel door, internal cover, device carrier and N/PE screw terminal equipment. ABB identifies the included terminal components as ZK507, ZKS6B and ZKS16G.
The included terminal arrangement provides dedicated locations for connecting neutral and protective earth conductors, supporting organised wiring within the distribution board. This makes the UK612E2 especially convenient for projects where a complete enclosure assembly is preferred over purchasing the housing and terminal accessories individually.
The enclosure is designed to accommodate compatible modular protective and control devices, but the 12-module capacity does not mean that circuit breakers, RCDs or other protective devices are supplied. These must be selected separately according to the electrical design and applicable installation requirements.
Flush-Mounted Installation with Hollow-Wall Conversion Option
The UK612E2 is primarily designed for flush mounting in masonry walls, helping create a neat and unobtrusive electrical distribution installation. The overall front dimensions are 372 x 384 mm, while ABB specifies a 355 x 367 x 95 mm flush-mounting niche.
For suitable hollow-wall installations, the UK600 system can be adapted using the appropriate ABB UZ91P4 mounting kit. The published hollow-wall cut-out dimensions for this enclosure are 328 x 340 x 88 mm. Installers should distinguish these dimensions from the larger flush-mounting niche dimensions and confirm the required mounting method before cutting the wall opening.
The enclosure also incorporates pre-punched cable entry provisions at the top, bottom, sides and rear, providing flexibility when routing incoming and outgoing cables. An integrated cable fastening rail helps organise conductors and support suitable cable retention arrangements.

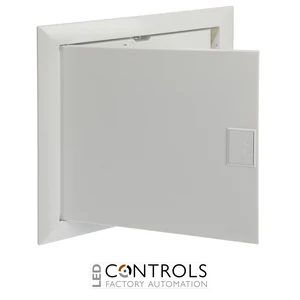

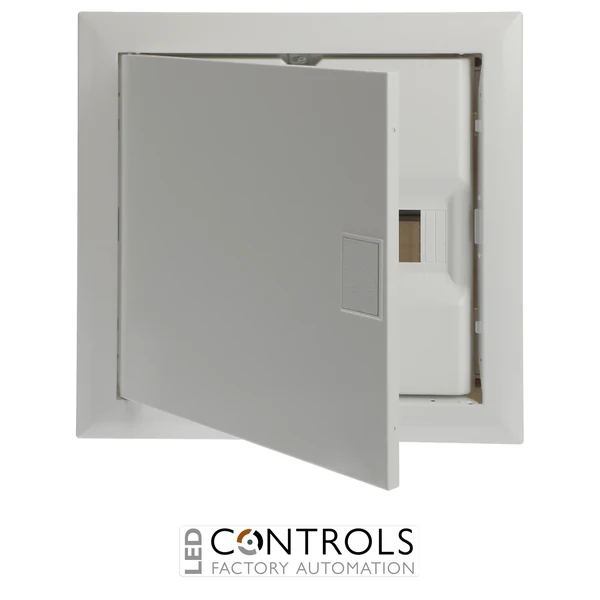

Reversible RAL 9016 Steel Door and Convenient Access
The solid sheet steel door features a powder-coated RAL 9016 traffic white finish, providing a clean appearance suitable for domestic and commercial interiors. The door is fitted with ABB's TIP-in closure mechanism and can be configured for left- or right-hand opening to suit the installation location.
With a 120° opening angle, the door provides practical access to the distribution board during normal operation and maintenance. Behind the door, the plastic internal cover uses 90° press-and-turn fasteners, allowing access by an appropriately qualified person when inspection or installation work is required.
The reversible door arrangement is particularly useful in confined locations, including cupboards, hallways and utility spaces where the preferred opening direction may depend on adjacent walls or fittings.
Electrical Protection, Durability and Compliance
The ABB UK612E2 is designed for indoor electrical distribution applications and provides IP30 protection against access and solid objects within the scope of that classification. It is not intended to provide protection against water ingress and should not be installed in wet or exposed locations without a suitable additional protective arrangement.
The enclosure features Class II double insulation, IK07 mechanical impact resistance and a specified 850°C glow-wire resistance. It is designed in accordance with EN 60670-24, the standard applicable to enclosures for housing protective devices and other power-dissipating electrical equipment.
Its specified 63 A rated current and 400 V AC, 50/60 Hz rated operational voltage relate to the enclosure system. The completed distribution board must still be designed and assembled using correctly rated protective devices, conductors, terminals and circuit arrangements.
Typical Applications
- Residential flush-mounted consumer unit installations.
- Compact electrical distribution boards with up to 12 modular device spaces.
- Domestic lighting and socket circuit distribution.
- Apartment and residential development electrical installations.
- Hallway and utility room distribution boards.
- Small commercial electrical distribution installations.
- Electrical distribution board replacements and upgrades.
- Refurbishment projects requiring a white steel-door enclosure.
- Hollow-wall installations using the specified ABB conversion accessories.
- Professional installations requiring included N/PE screw terminal equipment.
- Modular circuit protection assemblies using compatible DIN rail devices.
- Indoor electrical distribution projects requiring IP30 and Class II protection.
