Why Choose the ABB UK624E3 Flush-Mounted Consumer Unit?

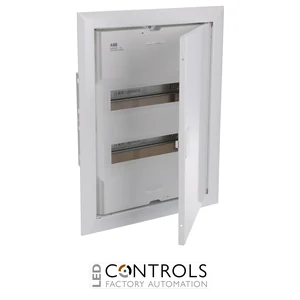

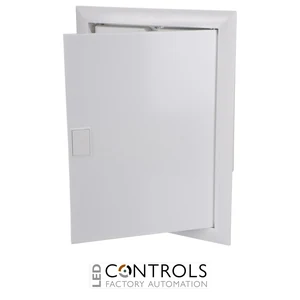

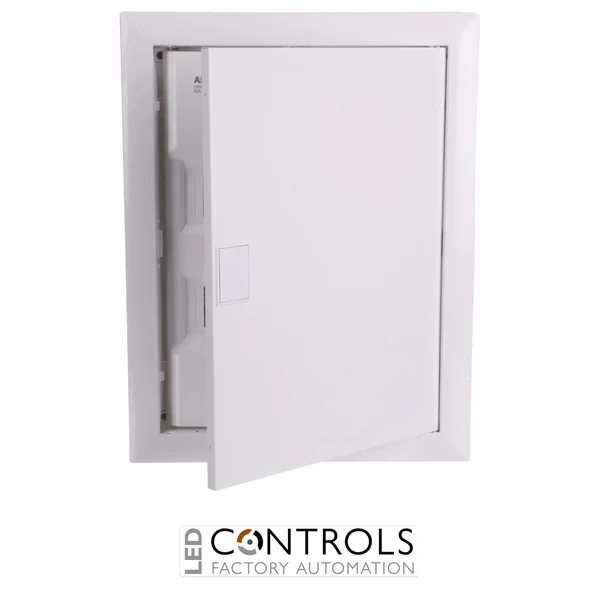

The ABB UK624E3 is a 24-module flush-mounted consumer unit enclosure from the ABB UK600 electrical distribution range. Identified by ABB order code 2CPX077841R9999, this enclosure is designed for recessed installation in compatible wall constructions, providing a dedicated housing for modular electrical distribution and circuit protection equipment.
Featuring a two-row, 24-module configuration, the UK624E3 provides organised mounting space for compatible modular electrical devices. Its IP30 protection rating and RAL9016 alpine white finish make it suitable for appropriately specified indoor electrical distribution installations where a neat, integrated appearance is required.
The UK624E3 is specified as a flush-mounted consumer unit with door and terminals, offering an enclosure arrangement for professional electrical distribution board assembly. It is suitable for residential and commercial applications where installers require a compact, recessed distribution enclosure with provision for modular protective devices and conductor termination.
Key Advantages
- 24-module capacity: Provides installation space for compatible modular electrical distribution equipment.
- Two-row arrangement: Supports organised positioning of electrical devices across two modular rows.
- Flush-mounted installation: Designed for recessed fitting to provide a neat and integrated wall finish.
- IP30 protection: Provides the specified enclosure protection classification when correctly installed in its approved configuration.
- RAL9016 alpine white finish: Complements modern residential and commercial interiors.
- Door and terminal arrangement: Includes the enclosure features identified in the manufacturer's product designation.
- ABB UK600 system: Part of ABB's electrical distribution enclosure product range.
- Professional installation flexibility: Suitable for compatible modular circuit protection and electrical distribution configurations.
Key Features
- ABB UK600 flush-mounted consumer unit enclosure.
- UK624E3 model designation.
- 24 modular positions.
- Two-row enclosure format.
- Recessed installation arrangement.
- IP30 ingress protection rating.
- RAL9016 alpine white finish.
- Door arrangement included in the product specification.
- Terminal arrangement included in the product specification.
- Designed to house compatible modular electrical distribution equipment.
- Suitable for appropriately specified indoor installations.
- Part of the ABB UK600 enclosure and accessory system.
- ABB order code: 2CPX077841R9999.
Flush-Mounted Electrical Distribution for Residential and Commercial Buildings
Modern electrical distribution systems require enclosures that provide suitable space for protective devices, organised wiring and safe access for inspection and maintenance. Flush-mounted consumer units are particularly useful where the electrical distribution board must be integrated into the wall rather than projecting into the surrounding space.
The ABB UK624E3 provides 24 modular positions across two rows, supporting the assembly of compatible electrical distribution configurations. Depending on the installation design, these positions may accommodate appropriately selected miniature circuit breakers, residual current devices, RCBOs and other compatible modular equipment.
The enclosure's IP30 rating and RAL9016 finish support indoor installation in suitable environments. Its door and terminal arrangement provides the basis for a professional distribution board assembly, while the flush-mounted format helps achieve a clean architectural finish.
The UK624E3 is an enclosure assembly rather than a complete populated consumer unit. Protective devices, switching equipment and any additional accessories must be selected according to the electrical installation requirements. Installers should verify the exact supplied configuration, compatible equipment, mounting dimensions and terminal specifications against ABB's technical documentation before installation.
Typical Applications
- Residential flush-mounted consumer unit installations.
- Domestic electrical distribution board upgrades.
- Apartment and housing development electrical systems.
- Commercial building distribution boards.
- Indoor modular circuit protection assemblies.
- Building refurbishment and electrical installation projects.
- Recessed electrical distribution installations in suitable walls.
- Projects requiring a 24-module enclosure with an alpine white finish.
