Why Choose the ABB UK636E3 Flush-Mounted Consumer Unit?

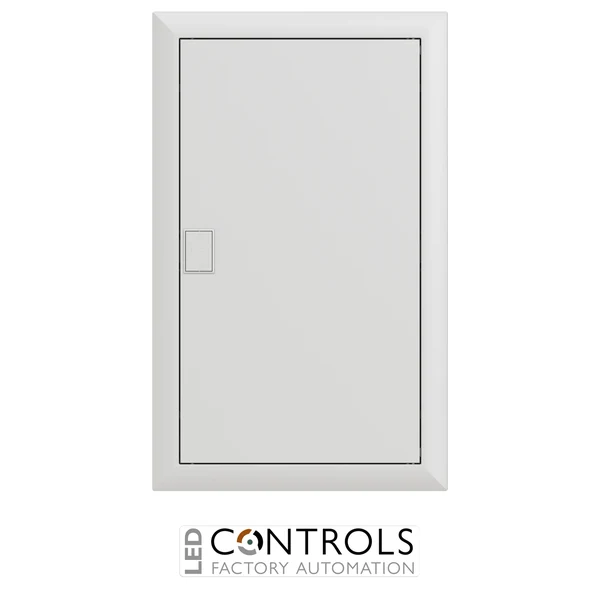

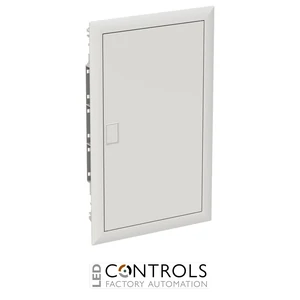

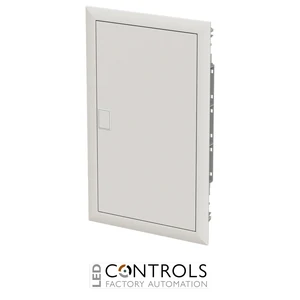

The ABB UK636E3 is a 36-module flush-mounted consumer unit enclosure from the ABB UK600 electrical distribution range, featuring an IP30 protection rating, RAL9016 alpine white finish and a door and terminal arrangement for professional electrical installations.
Identified by ABB order code 2CPX077842R9999, the UK636E3 provides a practical enclosure solution for housing compatible modular circuit protection and electrical distribution equipment. Its 36-module capacity offers space for organising multiple electrical circuits within a single distribution assembly.
Designed for recessed wall installation, the UK636E3 supports a neat, integrated appearance in residential and commercial buildings. The enclosure belongs to ABB's UK600 range and is suitable for installations requiring a flush-mounted distribution board with a coordinated white finish.
Key Advantages
- 36-module capacity: Provides space for multiple compatible modular electrical protection and distribution devices.
- Three-row configuration: Offers an organised arrangement of 12 modular positions per row.
- Flush-mounted construction: Designed for recessed installation to create a neat wall-mounted appearance.
- IP30 protection rating: Provides the specified degree of enclosure protection when correctly assembled and installed.
- RAL9016 alpine white finish: Complements a wide range of residential and commercial interiors.
- Door and terminal arrangement: Supplied in the enclosure configuration identified by ABB's product designation.
- ABB UK600 system integration: Part of ABB's established electrical distribution enclosure range.
- Professional distribution board assembly: Supports the installation of compatible modular protective devices and associated wiring.
- Genuine ABB product: Manufacturer order code 2CPX077842R9999 enables accurate identification and procurement.
Key Features
- ABB UK636E3 flush-mounted consumer unit enclosure.
- Part of the ABB UK600 Enclosures product group.
- 36 modular positions.
- Three-row modular configuration.
- 12 modules per row.
- Designed for recessed wall installation.
- IP30 ingress protection rating.
- RAL9016 alpine white finish.
- Door included in the specified enclosure arrangement.
- Terminal arrangement included in the product designation.
- Suitable for compatible modular electrical distribution equipment.
- Intended for appropriately specified indoor installations.
- Supports residential and commercial distribution board applications.
- ABB manufacturer order code: 2CPX077842R9999.
Organised Electrical Distribution with a 36-Module Flush-Mounted Enclosure
Electrical distribution boards provide a central location for circuit protection, switching and electrical distribution equipment. In installations with multiple circuits, selecting an enclosure with sufficient modular capacity helps achieve an organised equipment layout and provides access for inspection and maintenance.
The ABB UK636E3 offers 36 modular positions arranged across three rows, making it suitable for compatible electrical distribution configurations that require more installation space than smaller consumer unit enclosures. Depending on the electrical system design, the enclosure may accommodate appropriately selected miniature circuit breakers, residual current devices, RCBOs and other compatible modular components.
Its flush-mounted design allows the enclosure to be recessed into a suitable wall construction, helping minimise projection into the surrounding room. The RAL9016 alpine white finish supports a clean appearance, while the specified door and terminal arrangement contributes to the overall enclosure assembly.
The IP30 protection rating must be considered when selecting the installation environment. IP30 identifies protection against access by solid objects of the specified size but does not provide a rated level of protection against water ingress. The enclosure should therefore be installed only where its protection characteristics are appropriate.
The UK636E3 is an electrical distribution enclosure rather than a fully populated consumer unit. Protective devices and any additional accessories must be selected according to the installation design. Installers should confirm the exact supplied terminal configuration, compatible devices, installation dimensions and mounting requirements using ABB's technical documentation.
Typical Applications
- Residential flush-mounted consumer unit installations.
- Domestic electrical distribution board upgrades.
- Apartment and multi-circuit residential electrical systems.
- Commercial building electrical distribution installations.
- Indoor modular circuit protection assemblies.
- Building refurbishment and electrical installation projects.
- Recessed electrical distribution boards in suitable wall constructions.
- Installations requiring a 36-module enclosure with three modular rows.
- Projects specifying an IP30 enclosure with a RAL9016 alpine white finish.
