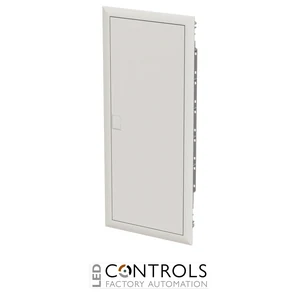

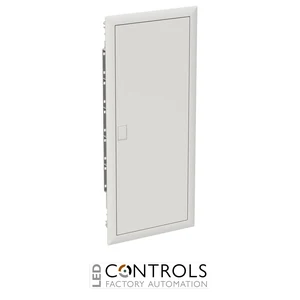

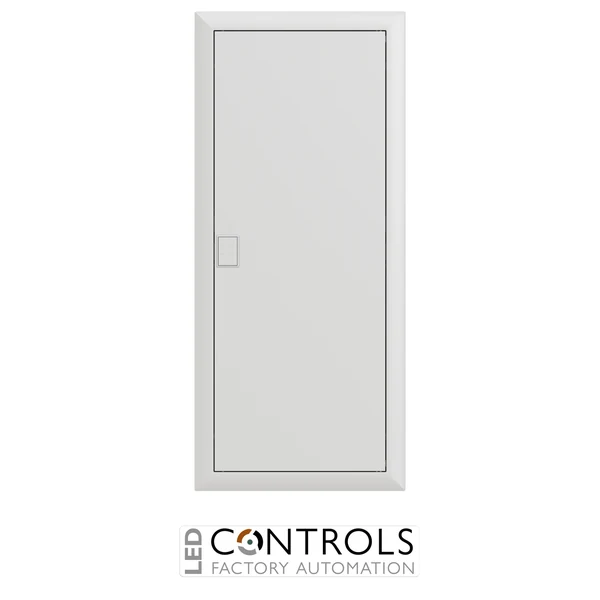

Why Choose the ABB UK660E3 Flush-Mounted Consumer Unit?
The ABB UK660E3 is a high-quality 60-module flush-mounted electrical distribution enclosure designed for housing modular circuit protection and control equipment in residential and commercial electrical installations. As part of the ABB UK600 consumer unit series, it combines a spacious five-row configuration, robust construction and convenient installation features to support reliable indoor electrical distribution.
The UK660E3 provides 60 DIN modular units across five rows, with 12 standard modules per row. It is supplied as a complete enclosure assembly with a sheet steel door, trim frame, removable device carrier and neutral/protective earth (N/PE) screw terminals. Its durable thermoplastic enclosure body and powder-coated metal door provide a practical combination of electrical insulation, mechanical strength and professional appearance.
With a 63 A rated current, 400 V AC rated operational voltage, IP30 protection rating and RAL 9016 traffic white finish, the ABB UK660E3 is suitable for indoor distribution board installations. Its overall dimensions of 872 × 384 × 97 mm and recessed mounting arrangement make it a practical solution for electrical installations requiring substantial modular capacity and a neat wall finish.
Key Advantages
- Spacious 60-module electrical distribution enclosure for residential and commercial applications.
- Five-row configuration with 12 standard DIN modular units per row.
- 63 A rated current for compatible electrical distribution assemblies.
- 400 V AC rated operational voltage at 50/60 Hz.
- IP30 protection rating for suitable indoor environments.
- Class II double-insulated construction for electrical enclosure safety.
- IK07 mechanical impact resistance for dependable enclosure protection.
- Supplied with sheet steel door, trim frame and N/PE screw terminals.
- RAL 9016 traffic white finish complements modern interior installations.
- Reversible door hinges allow left-hand or right-hand opening.
- Integrated cable management features simplify wiring organisation.
- Compatible with ABB UK600 installation accessories and hollow wall mounting conversion components.
Key Features
- ABB UK600 electrical distribution enclosure series.
- UK660E3 flush-mounted consumer unit.
- 60 DIN modular units of standard installation capacity.
- Five horizontal rows with 125 mm DIN rail spacing.
- 63 A rated current.
- 400 V AC, 50/60 Hz rated operational voltage.
- IP30 ingress protection and IK07 impact resistance.
- Class II double-insulated enclosure design.
- Durable thermoplastic enclosure body.
- Powder-coated sheet steel door in RAL 9016 traffic white.
- TIP-in magnetic-free push closure mechanism for convenient door operation.
- 120° door opening angle with reversible left or right hinges.
- Integrated N/PE screw terminal assemblies.
- Removable device carrier for convenient electrical assembly.
- Pre-punched cable entry arrangements on the top, bottom, sides and rear.
- Integrated cable fastening rail for organised wiring.
- 850 °C glow-wire resistance according to the enclosure specification.
- Compatible with the ABB UZ91P4 hollow wall mounting set for suitable cavity wall installations.
- ABB manufacturer order code 2CPX077844R9999.
Reliable Electrical Distribution with the ABB UK600 System
Modern electrical installations require distribution enclosures that combine adequate modular capacity, dependable electrical insulation and convenient access for installation and maintenance. The ABB UK660E3 flush-mounted consumer unit provides a comprehensive enclosure solution for these requirements, offering a spacious five-row arrangement within the established ABB UK600 system.
The enclosure accommodates 60 standard DIN modular units, allowing compatible miniature circuit breakers, residual current devices, RCBOs and other modular electrical components to be arranged according to the installation design. The 125 mm spacing between DIN rails provides working space for wiring and device connections, while the removable device carrier supports convenient assembly.
The UK660E3 is supplied with neutral and protective earth screw terminals, including the ABB ZK507 terminal carrier and associated ZKS terminal assemblies. These components support organised conductor termination and help simplify distribution board wiring. The integrated cable fastening rail and pre-punched cable entry points provide additional flexibility when routing incoming and outgoing conductors.
Its Class II double-insulated construction, IP30 protection rating and IK07 impact resistance provide a dependable enclosure platform for suitable indoor installations. The thermoplastic body is designed for electrical insulation and mechanical durability, while the sheet steel door provides a robust external finish.
The RAL 9016 traffic white door and trim frame allow the enclosure to integrate neatly into residential and commercial interiors. Its reversible door hinges and 120° opening angle provide flexible access, while the TIP-in push closure enables convenient opening and closing without a conventional projecting handle.
For installation in suitable hollow wall constructions, the UK660E3 can be adapted using the separately available ABB UZ91P4 hollow wall mounting set. All protective devices, wiring and accessories must be selected according to the electrical installation requirements and fitted in accordance with ABB instructions and applicable regulations.
Typical Applications
- Residential electrical consumer unit installations.
- Flush-mounted distribution boards in houses and apartments.
- Commercial building electrical distribution systems.
- Office and workplace electrical installations.
- Multi-circuit electrical distribution boards requiring 60 modular positions.
- Installation of miniature circuit breakers, RCDs and RCBOs.
- Building refurbishment and consumer unit replacement projects.
- Recessed electrical distribution installations in suitable masonry walls.
- Hollow wall electrical enclosure installations with the appropriate mounting accessory.
- Professional electrical installation and building services projects.
