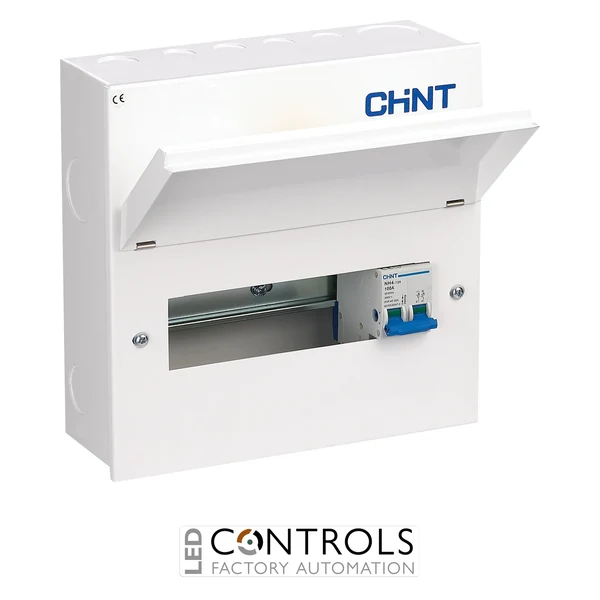

Chint NX3-10MS 8 way main switch consumer unit with 100 A mains switch, 10 module steel enclosure, fixed busbar, DIN rail and insulated neutral bar for residential and light commercial electrical installations.
£87.41
The Chint NX3-10MS is a robust and practical 8 way main switch consumer unit designed for reliable circuit distribution in residential and light commercial electrical installations. As part of the Chint NX3 metal consumer unit series, it provides a strong enclosure for modular DIN rail protection devices and includes a 100 A main switch for incoming isolation.
This part-populated consumer unit is designed to support neat, secure and compliant electrical installations. The NX3-10MS features a metal enclosure, fixed busbar, DIN rail, insulated neutral bar and flexible cable entry points, giving electricians a dependable board for new installations, rewires and upgrade work.
With a 10 module enclosure and 8 usable ways, the NX3-10MS is suitable for managing multiple outgoing circuits from a compact distribution board. Its 100 A mains switch and IP30 enclosure rating make it well suited to standard low voltage circuit protection applications.
Main switch consumer units such as the Chint NX3-10MS provide a central enclosure for organising outgoing circuit protection and isolating the incoming supply. By housing modular protective devices on a DIN rail, the board supports safe circuit management, fault protection and straightforward inspection.
The NX3-10MS is suitable for electricians and contractors who need a compact metal consumer unit with a factory-fitted 100 A main switch. Its part-populated format allows installers to select suitable outgoing MCBs, RCBOs or other compatible modular devices according to the requirements of the installation.
| Current | 100 A |
|---|---|
| Manufacturer | Chint |
| Series | NX3 |
| Model | NX3-10MS |
| Product type | Main switch consumer unit |
| Consumer unit type | Part-populated main switch board |
| Number of modules | 10 modules |
| Number of usable ways | 8 ways |
| Main switch rating | 100 A |
| Rated current | 100 A |
| Rated voltage | 230 V AC |
| Busbar type | Fixed busbar |
| DIN rail | Supplied |
| Neutral bar | Insulated neutral bar |
| MCBs supplied | No MCBs supplied |
| IP rating | IP30 |
| Construction material | Steel |
| Cable entry points | Top, bottom, left, right and rear |
The Chint NX3-10MS is used as an 8 way main switch consumer unit for housing modular circuit protection devices in residential and light commercial electrical installations.
Yes, the NX3-10MS is supplied with a 100 A main switch for incoming isolation.
The NX3-10MS provides 8 usable ways within a 10 module enclosure.
No, the NX3-10MS is part-populated with the main switch but does not include outgoing MCBs.
The NX3-10MS uses a steel enclosure, making it suitable for modern consumer unit installations.
Chint NX3 consumer units are trusted by electricians and contractors for dependable circuit distribution, robust metal construction and practical installation features in residential and commercial electrical systems.
