Why Choose the ABB M1175 German Schuko Socket?

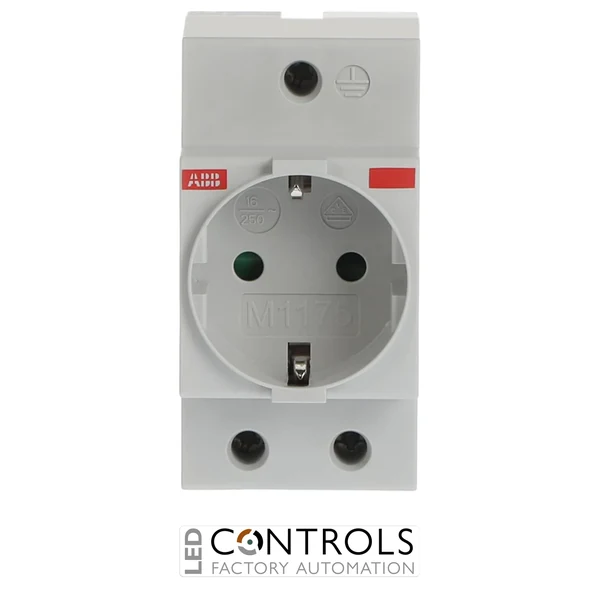

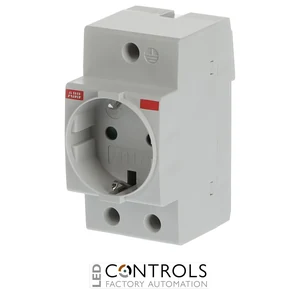

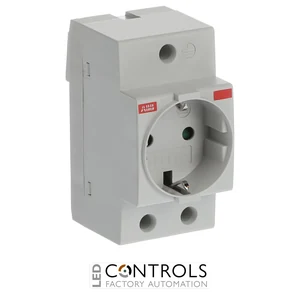

The ABB M1175 is a compact German Schuko standard modular socket outlet designed to provide a convenient mains connection inside civil and industrial electrical switchboards. Part of ABB's modular installation range, it allows tools, test equipment and other electrical or electronic devices to be powered directly from a DIN-rail distribution or control assembly.
Rated at 16 A and 250 V AC, the M1175 uses the familiar protective-contact Schuko configuration and incorporates safety shutters for enhanced contact protection. Its grey enclosure and compact modular construction make it suitable for permanent integration alongside other DIN-rail equipment.
The M1175 occupies 2.5 modular spacings and has a built-in depth of approximately 60 mm. With an IP20 protection rating, 50/60 Hz operating frequency and terminals accepting conductors from 2.5–16 mm², it provides a practical service socket for indoor switchboards, automation panels and electrical distribution equipment.
Key Advantages
- Convenient German Schuko socket outlet for DIN-rail installations.
- 16 A rated current for connecting tools and electrical equipment.
- 250 V AC rated voltage for low-voltage mains applications.
- Integrated safety shutters provide enhanced contact protection.
- Compact 2.5-module format for efficient use of switchboard space.
- DIN-rail construction simplifies installation in distribution and control panels.
- Accepts conductors from 2.5–16 mm² for flexible wiring.
- Grey finish integrates neatly with modular electrical equipment.
Key Features
- ABB M1175 modular socket outlet.
- German Schuko standard protective-contact socket.
- 16 A rated current.
- 250 V AC rated voltage.
- 50/60 Hz rated frequency.
- Safety shutters included.
- IP20 degree of protection.
- 2.5 modular spacings wide.
- DIN-rail mounting for switchboard installation.
- Grey enclosure for modular electrical assemblies.
- Terminal tightening torque of 1.2 N·m.
- Suitable cable cross-section of 2.5–16 mm².
Convenient Power Access for Electrical Switchboards
Modular socket outlets provide an accessible mains connection directly inside an electrical distribution or control assembly. The ABB M1175 allows maintenance equipment, test instruments, tools and other compatible devices to be connected without requiring a separate external socket, making servicing and commissioning more convenient.
Its DIN-rail format allows the socket to be installed alongside other modular devices, while the 16 A, 250 V AC rating supports common Schuko-connected equipment. Integrated safety shutters provide additional protection against accidental contact, making the M1175 a practical addition to indoor industrial and commercial electrical panels.
Typical Applications
- Industrial electrical control panels.
- Distribution boards and switchboards.
- Automation and machinery cabinets.
- Maintenance and service power connections.
- Powering electrical test and commissioning equipment.
- Commercial building electrical panels.
