Why Choose the ABB M1175L M1175-L German Schuko Modular Socket?

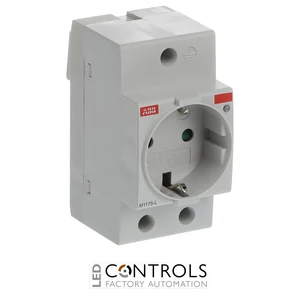

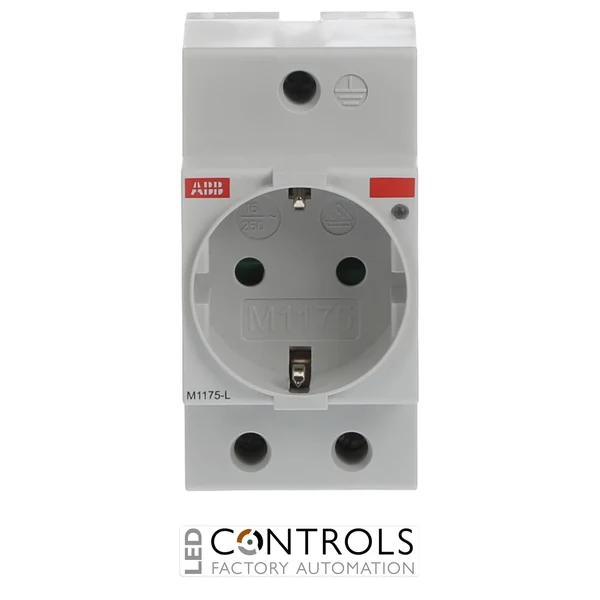

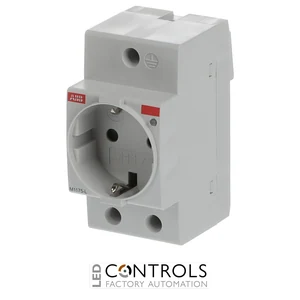

The ABB M1175L (M1175-L) is a compact German Schuko standard modular socket with integrated voltage indicator light designed to provide a convenient power outlet within electrical distribution boards, control panels and industrial enclosures. As part of ABB’s modular command and signalling portfolio, it provides a practical DIN-rail power connection for maintenance equipment, test instruments and other compatible electrical devices.
The M1175-L combines a German Schuko socket outlet with an integrated indicator light that clearly shows when supply voltage is present. This visual status indication makes it easier for installers, operators and maintenance personnel to confirm that the socket is energised without requiring separate indication equipment.
Designed for modular electrical installations, the M1175-L is suitable for mounting alongside other DIN-rail equipment in switchboards and control assemblies. Its RAL 7035 grey finish provides a professional appearance consistent with modern electrical panel equipment, while the Schuko interface supports compatible German and European plug-connected equipment.
Key Advantages
- Compact German Schuko standard modular socket for electrical panels and distribution boards.
- Integrated voltage indicator light clearly shows when supply voltage is present.
- DIN-rail format enables straightforward integration with modular electrical equipment.
- Provides a convenient local power outlet for maintenance and service equipment.
- RAL 7035 grey finish complements professional switchboard installations.
- ABB modular construction provides dependable performance in commercial and industrial electrical systems.
Key Features
- ABB M1175 modular socket range.
- German Schuko standard socket.
- Integrated voltage indicator light.
- Indicator provides visual confirmation that supply voltage is present.
- Modular design for electrical distribution boards and control panels.
- Suitable for DIN-rail installations.
- RAL 7035 grey finish.
- Designed for convenient auxiliary power access within electrical assemblies.
Convenient Power Access for Electrical Panels
Modular sockets provide an accessible mains power connection directly within an electrical distribution board or control enclosure. This can be particularly useful during commissioning, inspection and maintenance, allowing compatible test instruments, service tools and auxiliary equipment to be powered without requiring a separate external socket near the installation.
The ABB M1175-L adds an integrated voltage indicator to the standard M1175 Schuko socket design. The indicator clearly identifies whether supply voltage is available at the modular socket, providing useful visual feedback for operators and maintenance personnel working with electrical control and distribution equipment.
Typical Applications
- Electrical distribution boards and switchboards.
- Industrial machinery control panels.
- Automation and production equipment.
- Maintenance and service power outlets.
- Powering compatible electrical test instruments.
- Commercial and industrial electrical enclosures.
- OEM machinery and electrical control assemblies.
