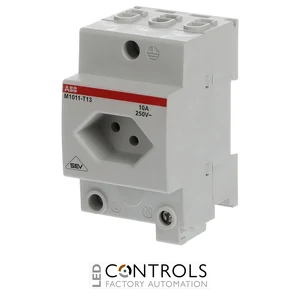

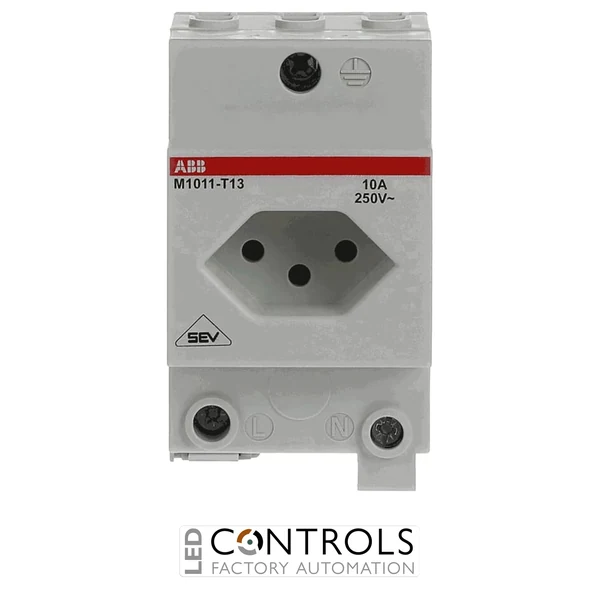

Why Choose the ABB M1011-T13 Swiss Standard Modular Socket?
The ABB M1011-T13 is a compact and reliable Swiss standard Type 13 modular socket outlet designed for connecting electrical devices, tools and non-modular electronic equipment within civil and industrial switchboards. As part of the ABB M1011 modular socket series, it provides a convenient power connection point directly within electrical distribution and automation panels.
This socket is configured for single-phase operation at 10 A and accepts Swiss standard Type 13 plugs. The M1011 series carries SEV certification and includes single- and three-phase socket versions for Swiss standard plugs, making it suitable for professional electrical installations requiring country-specific socket compatibility.
The M1011-T13 features a grey modular housing measuring approximately 54 × 85 × 44 mm. It can be mounted on a standard DIN rail or compatible Smissline rail without a supply connection to the rail system, providing flexible installation in distribution boards and industrial control cabinets.
Key Advantages
- Swiss standard Type 13 modular socket outlet for panel installations.
- Single-phase 10 A rating for compatible electrical equipment.
- SEV-certified M1011 series designed for Swiss standard plugs.
- Suitable for connecting tools, instruments and non-modular electrical equipment.
- Mounts on DIN rail or Smissline rail for flexible panel integration.
- Compact three-module format helps optimise space inside electrical assemblies.
Key Features
- ABB M1011 modular socket series.
- Swiss standard Type 13 socket.
- Single-phase configuration.
- 10 A rated current.
- Grey housing for professional electrical installations.
- SEV certification.
- DIN-rail and Smissline-rail mounting capability.
- Three-module width for modular distribution boards.
- Designed for civil and industrial electrical switchboards.
Convenient Power Access Inside Electrical Panels
Modular socket outlets provide a convenient local power connection for electrical devices, tools, electronic equipment and measuring instruments used around distribution and automation boards. The ABB M1011-T13 integrates this functionality into a compact modular format suitable for professional panel installations.
The ABB M1011 range is designed for Swiss standard plugs and includes both single- and three-phase variants with ratings of 10 A or 16 A. The M1011-T13 provides the single-phase 10 A Type 13 configuration and can be installed on DIN or Smissline rails without relying on a rail-mounted supply connection.
Typical Applications
- Industrial electrical control panels.
- Distribution boards and switchboards.
- Automation control cabinets.
- Power connection for electrical test and measuring instruments.
- Maintenance and service equipment connections.
- Civil and industrial electrical installations using Swiss standard plugs.
