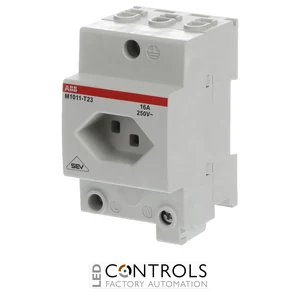

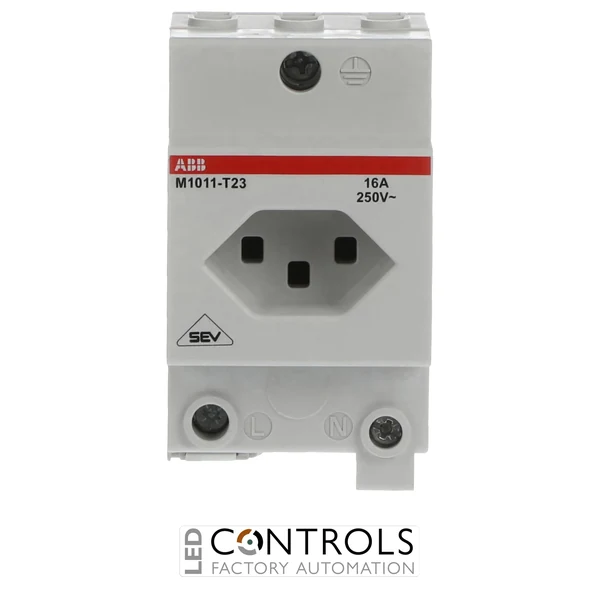

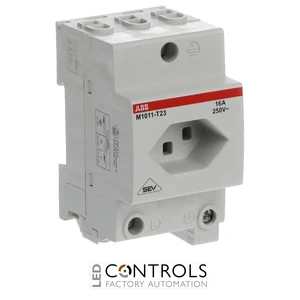

Why Choose the ABB M1011-T23 Swiss Standard Modular Socket?
The ABB M1011-T23 is a compact and reliable Swiss standard Type 23 modular socket outlet designed for connecting electrical devices, tools and non-modular electrical or electronic equipment within civil and industrial switchboards. As part of the ABB M1011 modular socket series, it provides a convenient power connection directly within electrical distribution and automation panels.
This socket features a single-phase 16 A configuration and a rated voltage of 250 V AC. The M1011 series is SEV certified and supports Swiss standard plugs, with single- and three-phase variants available for professional electrical installations.
The M1011-T23 features a grey modular housing and occupies three modular spacings. It can be installed on DIN rail or Smissline rail without a supply connection to the rail system, providing flexible integration into distribution boards, machinery and industrial control cabinets.
Key Advantages
- Swiss standard Type 23 modular socket outlet for panel installations.
- Single-phase 16 A rating for compatible electrical equipment.
- 250 V AC rated voltage for standard single-phase applications.
- SEV-certified M1011 series for Swiss standard plug connections.
- Suitable for DIN rail or Smissline rail mounting.
- Compact three-module format helps optimise switchboard and control-panel space.
Key Features
- ABB M1011 modular socket series.
- Swiss Type 23 socket standard.
- Single-phase configuration.
- 16 A rated current.
- 250 V AC rated voltage.
- 50/60 Hz rated frequency.
- IP20 protection rating.
- Grey housing for professional electrical installations.
- Three-module width for modular switchboards.
- DIN-rail and Smissline-rail mounting capability.
Convenient Power Access Inside Electrical Panels
Modular socket outlets provide a convenient local power connection for electrical devices, tools, electronic equipment and measuring instruments used around distribution and automation boards. The ABB M1011-T23 integrates this functionality into a compact three-module format suitable for professional panel installations.
The ABB M1011 range is designed for Swiss standard plugs and includes both single- and three-phase variants. The M1011-T23 provides the single-phase 16 A Type 23 configuration and can be installed on DIN or Smissline rails without relying on a supply connection through the rail system.
Typical Applications
- Industrial electrical control panels.
- Distribution boards and switchboards.
- Automation control cabinets.
- Power connections for electrical test and measuring instruments.
- Maintenance and service equipment connections.
- Civil and industrial installations using Swiss standard plugs.
