Why Choose the MARL1412.UK DIN Rail Mountable UK Socket?

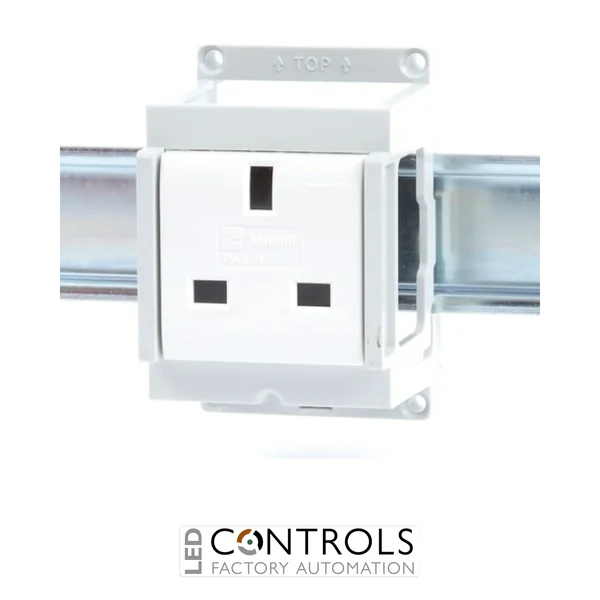

The MARL1412.UK is a DIN rail mountable UK three-pin socket outlet for control panels and electrical enclosures. It gives a standard UK mains outlet inside the panel itself, so test equipment, laptops, panel lighting, heaters or small service loads can be plugged in without running a separate wall socket to the cabinet.
Rated for 250 V AC and suitable for standard UK 13 A three-pin plugs, the socket clips directly onto a standard DIN rail alongside MCBs, terminals and other modular devices. The socket body is polycarbonate on an ABS DIN rail frame, and its screw connections accept conductors from 0.5 mm² to 2.5 mm².
At 53 mm wide × 82 mm high × 60 mm deep and around 100 g, the MARL1412.UK is a compact Class I, IP20 service outlet for use inside a closed enclosure.
Key Advantages
- UK mains outlet inside the panel for commissioning, maintenance and service equipment.
- DIN rail mounting - fits on the same rail as protective devices and terminals.
- 250 V AC rating for single-phase UK supplies.
- Compact 53 mm width keeps rail space to a minimum.
- Accepts 0.5-2.5 mm² conductors for straightforward wiring from a protective device.
Key Features
- UK three-pin (2P+E) socket outlet for standard 13 A plugs.
- Polycarbonate socket on an ABS DIN rail frame.
- Class I construction - the earth terminal must be connected.
- IP20 protection for installation inside an enclosure.
Typical Applications
- Service and maintenance sockets in control panels and machine enclosures.
- Powering laptops and test equipment during commissioning.
- Supplying panel lighting, small heaters or fans from inside the enclosure.
- Switchrooms and distribution cabinets that need a local UK outlet.
Installation Notes
Feed the socket from a suitably rated protective device, and connect the protective earth conductor - the MARL1412.UK is a Class I device. With IP20 protection it must be installed inside an enclosure. Installation should be carried out by a competent person in line with BS 7671.
