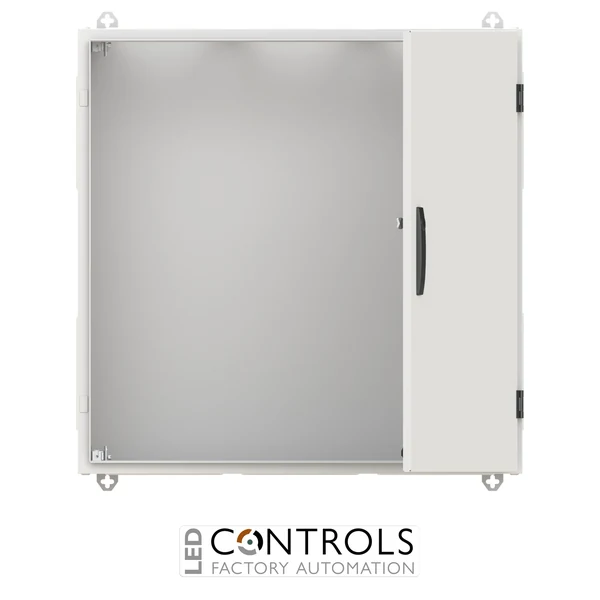

Why Choose the ABB TG305G TwinLine IP55 Sub Distribution Enclosure?
The ABB TG305G is an IP55 wall-mounted sub distribution enclosure from the ABB TwinLine range, designed for professional low-voltage electrical distribution installations. Identified by ABB order code 2CPX010007R9999, it forms part of ABB's DESUJ Sub Distribution product group and provides a robust empty cabinet for configuring compatible distribution equipment.
With external dimensions of 800 mm wide × 800 mm high × 225 mm deep, the TG305G provides 180 space units across five rows. The enclosure is manufactured from sheet steel with a powder-coated RAL 7035 grey finish and incorporates a single-leaf sheet-steel door with a standard double-bit locking mechanism.
Designed for indoor wall mounting, the TG305G combines IP55 ingress protection with IK08 impact resistance and Class I earthed construction. It is prepared for installation of compatible metering equipment, distribution modules, Combi-Sets, CombiLine modules and mounting plates using ABB EDF/WR mounting frames.
Key Advantages
- Genuine ABB TwinLine sub distribution enclosure.
- IP55 ingress protection for demanding indoor electrical environments.
- IK08 impact resistance provides additional mechanical protection.
- Generous 800 × 800 × 225 mm enclosure dimensions.
- 180 space units provide substantial capacity for compatible distribution equipment.
- Powder-coated sheet-steel construction with a durable RAL 7035 grey finish.
Key Features
- ABB TwinLine wall-mounted cabinet.
- IP55 degree of protection.
- IK08 impact resistance.
- Class I earthed construction.
- Five-row configuration.
- 180 space units.

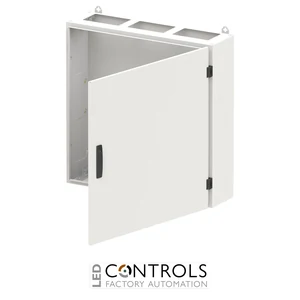

- Single-leaf sheet-steel door.

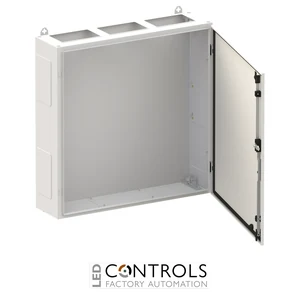

- 180° door opening angle.
- Door can be hinged on the right or left.
- Standard double-bit locking mechanism.
- Powder-coated RAL 7035 finish.
- Expansion capability to the side and bottom.
Flexible TwinLine Sub Distribution
The ABB TwinLine system provides configurable enclosures for low-voltage sub distribution applications. The TG305G offers 180 space units across five rows and is prepared for compatible metering equipment, distribution fields, Combi-Sets, CombiLine modules and mounting plates, giving installers flexibility when configuring a distribution assembly.
Its IP55 and IK08 ratings provide environmental and mechanical protection for installed equipment, while the sheet-steel construction and Class I earthing arrangement support professional indoor installations. Cable entry provisions are incorporated at the top, bottom and sides to assist with practical routing of incoming and outgoing conductors.
Typical Applications
- Commercial low-voltage sub distribution.
- Industrial electrical distribution installations.
- Building-services electrical systems.
- Plant rooms and technical service areas.
- Metering and distribution assemblies.
- Indoor applications requiring an IP55, IK08 wall-mounted electrical enclosure.
