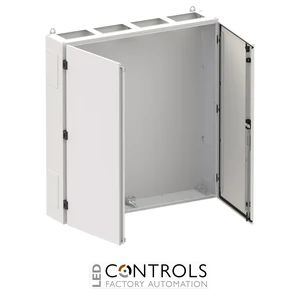

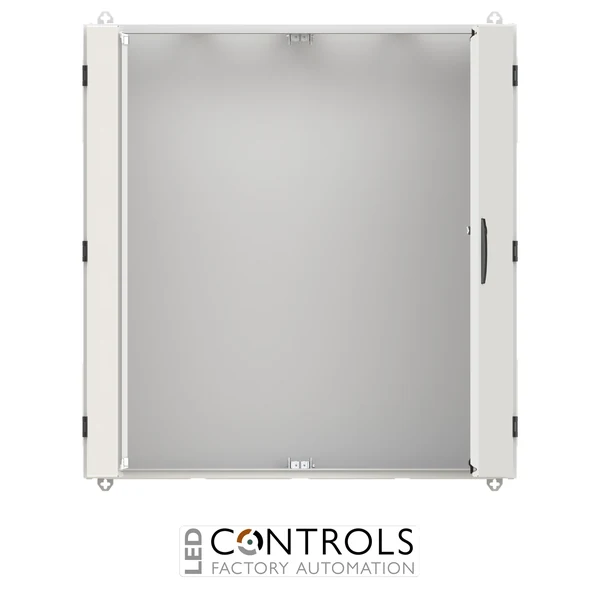

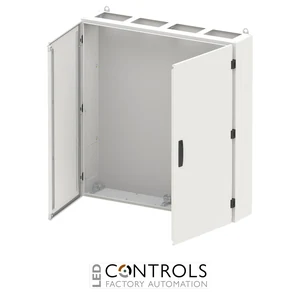

Why Choose the ABB TG407G IP55 Sub-Distribution Enclosure?
The ABB TG407G is a TwinLine wall-mounting enclosure from ABB's DESUJ Sub Distribution product group, designed for professional low-voltage electrical distribution installations. Supplied under ABB order code 2CPX010018R9999, it combines a large enclosure format with an IP55 degree of protection for demanding indoor applications.
Measuring 1050 mm wide, 1100 mm high and 225 mm deep, the TG407G provides substantial space for compatible distribution equipment. The enclosure is supplied with doors and uses a double-door arrangement, while its Class I construction provides an earthed enclosure solution for professional electrical installations.
The TG407G offers capacity for up to 336 modular units across 7 rows, making it suitable for larger sub-distribution assemblies. Its combination of generous dimensions, IP55 protection and modular installation capacity makes it a practical choice for commercial, industrial and building-services distribution projects.
Key Advantages
- IP55 degree of protection for demanding indoor electrical enclosure applications.
- Large 1050 × 1100 × 225 mm enclosure dimensions.
- Provides capacity for up to 336 modular units.
- 7-row configuration supports substantial sub-distribution assemblies.
- Double-door design provides practical access to installed equipment.
- Genuine ABB enclosure from the TwinLine / DESUJ Sub Distribution range.
Key Features
- ABB TwinLine wall-mounting enclosure.
- TG407G model with ABB order code 2CPX010018R9999.
- IP55 degree of protection.
- Class I earthed protection construction.
- 1050 mm width, 1100 mm height and 225 mm depth.
- 336 modular-unit capacity across 7 rows.
- Double-door configuration with 180° opening capability.
- Designed for indoor low-voltage sub-distribution applications.
Large-Capacity IP55 Sub-Distribution Enclosure
The ABB TG407G combines substantial installation capacity with an IP55 enclosure rating. Its 1050 mm width and 1100 mm height provide space for up to 336 modular units across seven rows, allowing the cabinet to form the basis of sizeable electrical sub-distribution assemblies.
The wall-mounting enclosure features a double-door configuration and Class I earthed construction, supporting professional installation and access to compatible internal equipment. With a depth of 225 mm, the TG407G provides a coordinated ABB enclosure solution for indoor commercial, industrial and building-services distribution projects.
Typical Applications
- Commercial electrical sub-distribution systems.
- Industrial low-voltage distribution installations.
- Building-services electrical infrastructure.
- Indoor installations requiring an IP55 enclosure.
- Large modular electrical distribution assemblies.
- ABB TwinLine sub-distribution and electrical enclosure projects.
