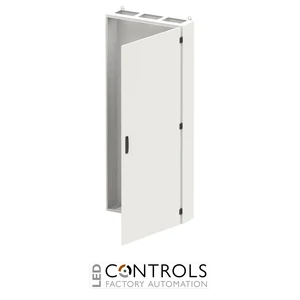

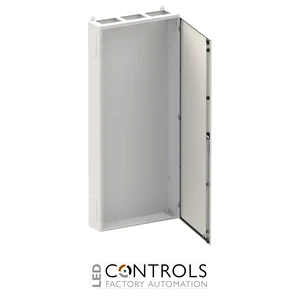

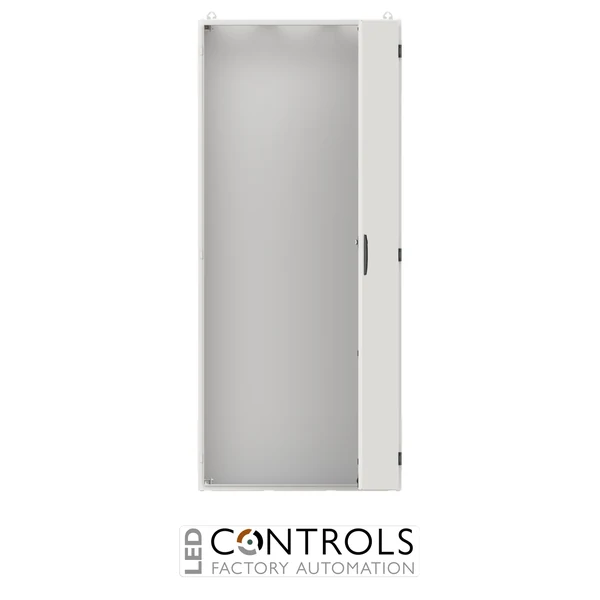

Why Choose the ABB TG312G TwinLine Floor-Standing Enclosure?
The ABB TG312G is a robust IP55 floor-standing electrical enclosure designed for indoor low-voltage distribution and switchgear applications. Part of the ABB TwinLine-G enclosure series, this empty cabinet provides a flexible platform for building professional sub-distribution assemblies using compatible ABB installation systems and components.
Manufactured from sheet steel and finished in RAL 7035, the TG312G combines durable construction with a high level of protection for installed electrical equipment. The enclosure has a single-leaf sheet-steel door, Class I earthed construction and an IK08 impact resistance rating, making it suitable for demanding commercial and industrial electrical installations.
With external dimensions of 1850 mm high × 800 mm wide × 225 mm deep, the TG312G provides three panel widths, 12 grid units and 432 space units. Its IP55 construction, configurable cable-entry provisions and preparation for ABB mounting systems make it a versatile enclosure for indoor power distribution applications.
Key Advantages
- Robust IP55 floor-standing enclosure for indoor electrical distribution systems.
- Generous 1850 × 800 × 225 mm enclosure dimensions.
- Durable sheet-steel construction with RAL 7035 powder-coated finish.
- Class I earthed construction for protective conductor connection.
- IK08 impact resistance for dependable mechanical protection.
- Flexible preparation for metering fields, distribution fields, Combi-Sets, CombiLine modules and mounting plates.
Key Features
- ABB TwinLine-G floor-standing cabinet series.
- IP55 degree of protection.
- 1850 mm height, 800 mm width and 225 mm depth.
- 12 grid units and three panel widths.
- 432 space units for distribution equipment configuration.
- Single-leaf sheet-steel door with 180° opening angle.
- Door hinge can be configured on the right or left.
- Standard double-bit locking mechanism.
- Top, bottom and side cable-entry provisions.
- Powder-coated RAL 7035 finish.
Flexible Enclosure Platform for Electrical Distribution
Floor-standing enclosures provide the protected mechanical structure required for assembling low-voltage distribution and control equipment. The ABB TG312G combines a substantial internal installation area with IP55 environmental protection and durable steel construction, helping protect installed components from dust and water ingress in suitable indoor applications.
The TwinLine system is designed for configurable electrical distribution assemblies. The TG312G is prepared for installation of metering and distribution fields, Combi-Sets, CombiLine modules and mounting plates on compatible EDF or WR mounting frames, giving panel builders and electrical contractors flexibility when configuring the enclosure for a specific project.
Typical Applications
- Commercial low-voltage distribution systems.
- Industrial sub-distribution assemblies.
- Building services electrical installations.
- Metering and distribution equipment assemblies.
- Electrical switchgear and control installations.
- Panel building using ABB CombiLine and compatible mounting systems.
