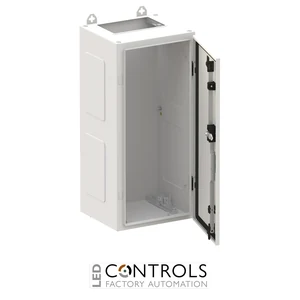

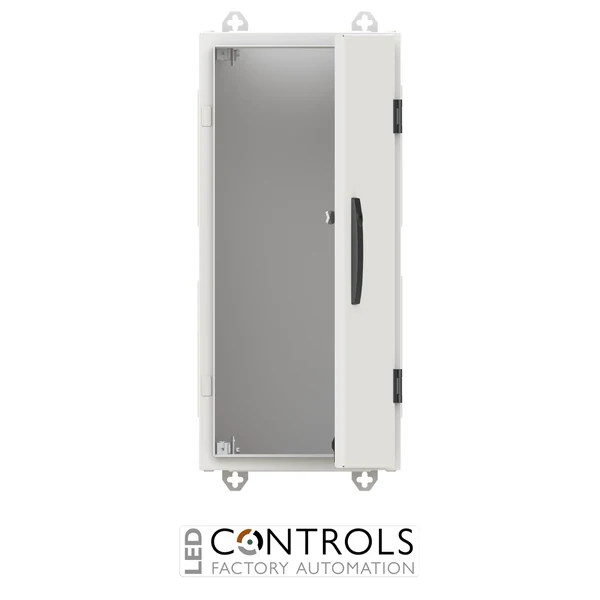

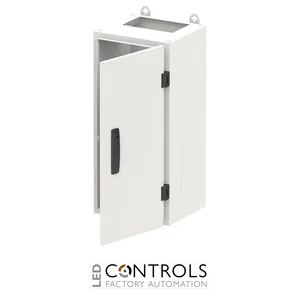

Why Choose the ABB TL104G TwinLine IP55 Wall-Mounting Enclosure?
The ABB TL104G is a robust IP55 wall-mounting electrical enclosure designed for indoor low-voltage distribution and switchgear applications. As part of the ABB TwinLine-L enclosure range, it provides a compact and flexible platform for constructing professional sub-distribution assemblies using compatible ABB installation systems and components.
Designed as an earthed enclosure with a door, the TL104G provides dependable protection for installed electrical equipment while supporting flexible internal configurations. The TwinLine system accommodates distribution board panels, combination sets and CombiLine modules using compatible mounting frames, making the enclosure suitable for panel builders, electrical contractors and building-services installations.
With external dimensions of 650 mm high × 300 mm wide × 275 mm deep, the TL104G combines a compact footprint with 48 space units. Its IP55 construction and wall-mounted format make it particularly suitable for indoor sub-distribution applications where space efficiency and protection are important.
Key Advantages
- Compact IP55 wall-mounting enclosure for electrical distribution applications.
- 650 × 300 × 275 mm external dimensions for space-efficient installations.
- Earthed construction suitable for professional low-voltage distribution assemblies.
- 48 space units for configuring compatible electrical equipment.
- Designed for integration with ABB distribution panels, combination sets and CombiLine modules.
- Genuine ABB TwinLine enclosure for coordinated sub-distribution installations.
Key Features
- ABB TwinLine-L wall-mounting enclosure series.
- IP55 degree of protection with door fitted.
- 650 mm height, 300 mm width and 275 mm depth.
- 4 grid units.
- 1 panel width.
- 48 space units.
- Earthed enclosure construction.
- External mounting brackets included in the TwinLine-L cabinet configuration.
- Prepared for compatible EDF and WR mounting-frame arrangements.
- Compatible with ABB distribution panels, combination sets, CombiLine modules and suitable mounting plates.
Compact Protection for Low-Voltage Distribution Equipment
Wall-mounted electrical enclosures provide a protected structure for assembling low-voltage distribution equipment while allowing efficient use of available installation space. The ABB TL104G combines IP55 protection with a compact 300 mm cabinet width and 275 mm depth, making it well suited to smaller distribution assemblies and building-services applications.
The TwinLine-L system is designed to support flexible internal configurations. The TL104G can form the enclosure platform for compatible distribution board panels, combination sets and CombiLine modules on an EDF mounting frame, while compatible CombiLine modules and mounting plates can also be accommodated using the appropriate WR mounting-frame arrangement.
Typical Applications
- Commercial low-voltage sub-distribution systems.
- Industrial electrical distribution installations.
- Building-services distribution boards.
- Wall-mounted switchgear assemblies.
- ABB CombiLine-based distribution configurations.
- Panel building and electrical installation projects.
