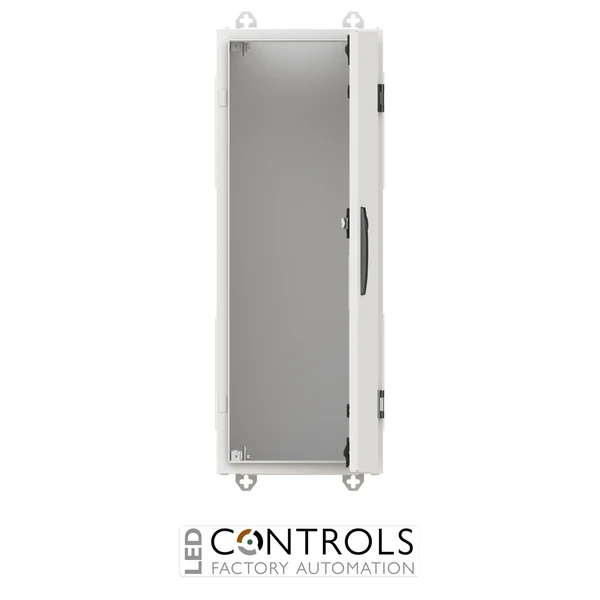

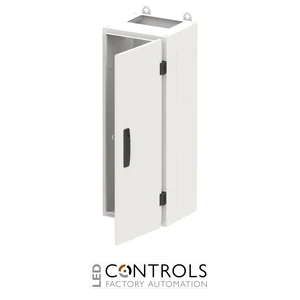

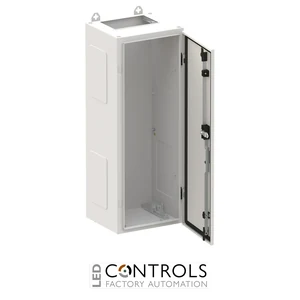

Why Choose the ABB TL105G TwinLine IP55 Wall-Mounting Enclosure?
The ABB TL105G is a TwinLine IP55 wall-mounting enclosure from ABB's DESUJ Sub Distribution product group, designed for professional low-voltage electrical distribution installations. Supplied under ABB order code 2CPX010075R9999, it provides a compact yet versatile enclosure platform for compatible distribution and metering equipment.
Measuring 300 mm wide, 800 mm high and 275 mm deep, the TL105G is a steel-sheet enclosure with a single-leaf door and Class I earthed construction. Its IP55 degree of protection and IK08 impact resistance support use in demanding indoor environments, while the powder-coated RAL 7035 grey finish provides a durable professional enclosure surface.
The TL105G provides 60 modular space units and is prepared for compatible metering fields, distribution fields, combination sets, CombiLine modules or mounting plates. Its surface-mounted format, reversible door hinging and 180° door opening make it a practical ABB enclosure for commercial, industrial and building-services sub-distribution projects.
Key Advantages
- IP55 degree of protection for demanding indoor electrical enclosure applications.
- Compact 300 × 800 × 275 mm enclosure dimensions.
- Provides 60 modular space units for compatible equipment configurations.
- IK08 impact resistance supports robust professional installations.
- Single-leaf door with 180° opening and right- or left-hand hinging.
- Genuine ABB TwinLine enclosure for professional sub-distribution applications.
Key Features
- ABB TwinLine wall-mounting enclosure.
- TL105G model with ABB order code 2CPX010075R9999.
- IP55 degree of protection and IK08 impact resistance.
- Class I earthed construction.
- 300 mm width, 800 mm height and 275 mm depth.
- 60 modular space units with 5 grid units.
- Powder-coated sheet-steel enclosure in RAL 7035 grey.
- Single-leaf steel door with 180° opening and reversible hinging.
Compact IP55 TwinLine Enclosure for Sub-Distribution
The ABB TL105G combines a relatively narrow 300 mm width with an 800 mm enclosure height and 275 mm depth, providing useful installation capacity where wall space is limited. Its 60 modular space units support compatible electrical distribution and metering configurations within ABB's TwinLine system.
For installation flexibility, the TL105G features a single-leaf door that can be hinged on either the right or left and opened through 180°. Its IP55 and IK08 ratings, Class I earthed construction and powder-coated sheet-steel housing provide a robust enclosure solution for professional indoor sub-distribution installations.
Typical Applications
- Commercial electrical sub-distribution systems.
- Industrial low-voltage distribution installations.
- Building-services electrical infrastructure.
- Indoor installations requiring an IP55 wall enclosure.
- Compatible metering and distribution field installations.
- ABB TwinLine and CombiLine electrical distribution projects.
