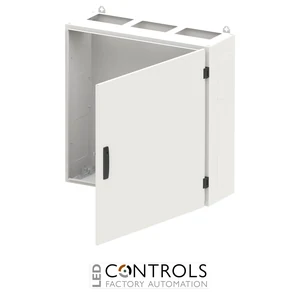

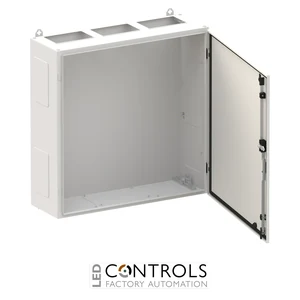

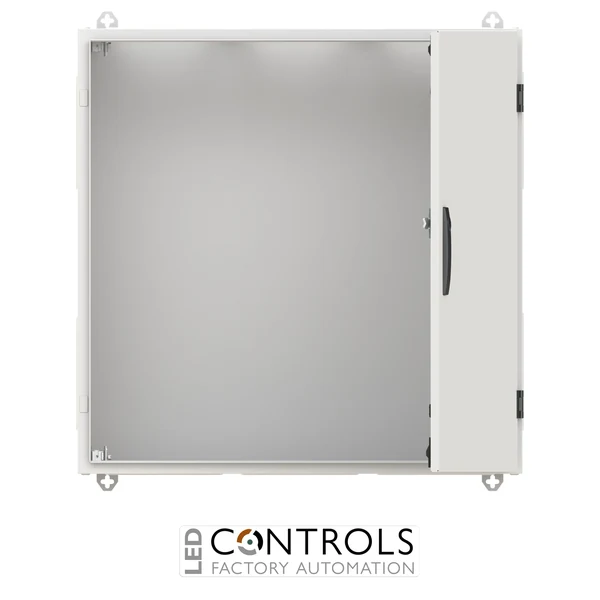

Why Choose the ABB TL305G TwinLine IP55 Sub Distribution Enclosure?
The ABB TL305G is a TwinLine N55 wall-mounted sub distribution enclosure designed for professional low-voltage electrical distribution installations. Identified by ABB order code 2CPX010077R9999, it forms part of ABB's DESUJ Sub Distribution product group and provides a robust empty cabinet for configuring compatible distribution equipment.
With external dimensions of 800 mm wide × 800 mm high × 275 mm deep, the TL305G provides 180 space units across five rows. Its increased 275 mm cabinet depth provides generous installation space for compatible metering, distribution and control equipment while maintaining a practical wall-mounted format.
The enclosure features IP55 ingress protection, IK08 impact resistance and Class I earthed construction. Finished in RAL 7035 grey, the TL305G uses a single-leaf door and is designed for indoor applications requiring a durable and flexible sub distribution enclosure.
Key Advantages
- Genuine ABB TwinLine N55 sub distribution enclosure.
- IP55 ingress protection for demanding indoor electrical environments.
- IK08 impact resistance for additional mechanical protection.
- Generous 800 × 800 × 275 mm enclosure dimensions.
- 180 space units across five rows for compatible distribution equipment.
- Deeper 275 mm cabinet format provides additional installation space.
- Designed for flexible expansion using compatible ABB distribution components.
Key Features
- ABB TwinLine N55 wall-mounted cabinet.
- IP55 degree of protection.
- IK08 impact resistance.
- Class I earthed construction.
- Five-row configuration.
- 180 space units.
- Single-leaf door with standard locking arrangement.
- Door hinge can be arranged on the right or left.
- 180° door opening angle.
- RAL 7035 grey finish.
- Suitable for indoor wall-mounted installations.
- Supports compatible ABB CombiLine equipment and mounting solutions.
Flexible TwinLine Sub Distribution
The ABB TwinLine system provides a configurable enclosure platform for low-voltage sub distribution. The TL305G offers 180 space units across five rows and a substantial 275 mm cabinet depth, providing space for compatible metering and distribution fields, CombiLine modules and mounting equipment.
Its IP55 protection and IK08 impact resistance make the TL305G suitable for demanding indoor environments, while the Class I earthed construction supports professional low-voltage installations. The TwinLine system also provides expansion and cable-entry options that allow the enclosure to be adapted to the requirements of the completed distribution assembly.
Typical Applications
- Commercial low-voltage sub distribution.
- Industrial electrical distribution systems.
- Building-services electrical installations.
- Plant rooms and technical service areas.
- Metering and distribution assemblies.
- Installations requiring additional enclosure depth for distribution equipment.
- Indoor applications requiring an IP55, IK08 wall-mounted electrical enclosure.
