Why Choose the ABB TL506G TwinLine IP55 Wall-Mounting Enclosure?
The ABB TL506G is a robust IP55 wall-mounting electrical enclosure designed for indoor low-voltage distribution and switchgear applications. As part of the ABB TwinLine enclosure series, it provides a large and flexible platform for constructing professional sub-distribution assemblies using compatible ABB installation systems and components.
Manufactured from sheet steel and finished in RAL 7035, the TL506G combines durable construction with Class I earthed protection and an IK08 impact resistance rating. Its double-door arrangement, 180° door opening and right- or left-hand door hinging provide convenient access during panel assembly, commissioning and maintenance.

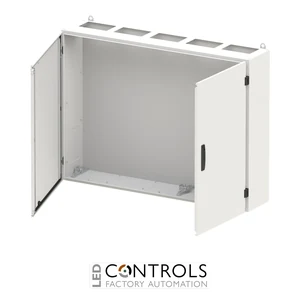

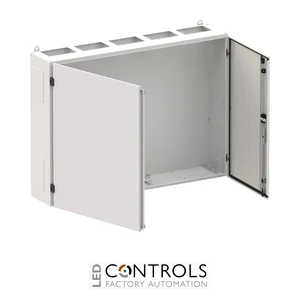

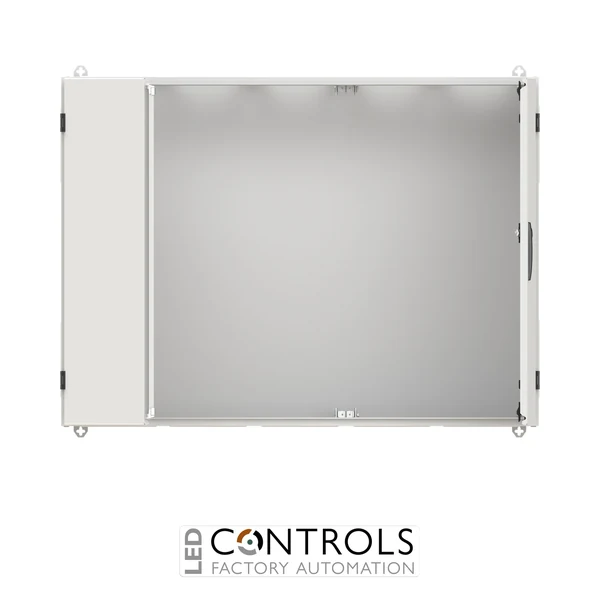

With external dimensions of 950 mm high × 1300 mm wide × 275 mm deep, the TL506G provides 6 grid units, five panel widths and 360 space units. The enclosure is prepared for compatible metering and distribution fields, Combi-Sets, CombiLine modules and mounting plates using ABB EDF or WR mounting-frame systems.
Key Advantages
- Large IP55 wall-mounting enclosure for indoor electrical distribution applications.
- Generous 950 × 1300 × 275 mm external dimensions.
- Durable sheet-steel construction with RAL 7035 powder-coated finish.
- Class I earthed construction for professional low-voltage assemblies.
- IK08 impact resistance for dependable mechanical protection.
- Provides 360 space units for extensive distribution configurations.
Key Features
- ABB TwinLine wall-mounting enclosure series.
- IP55 degree of protection.
- 950 mm height, 1300 mm width and 275 mm depth.
- 6 grid units and five panel widths.
- 360 space units for compatible distribution equipment.
- Double-door sheet-steel construction.
- Doors provide a 180° opening angle.
- Door hinging can be configured on the right or left.
- Standard 3 mm double-bit locking mechanism.
- Top, bottom and side cable-entry provisions.
Flexible Enclosure Platform for Low-Voltage Distribution
Wall-mounted electrical enclosures provide the protected mechanical structure required for assembling low-voltage distribution equipment. The ABB TL506G combines IP55 environmental protection, IK08 mechanical resistance and substantial internal installation capacity, making it suitable for commercial and industrial sub-distribution systems requiring a wide wall-mounted cabinet.
The TwinLine system supports flexible configuration of electrical distribution assemblies. The TL506G is prepared for compatible metering and distribution fields, Combi-Sets, CombiLine modules and mounting plates using ABB EDF or WR mounting-frame arrangements, giving panel builders and electrical contractors flexibility when configuring equipment for specific projects.
Typical Applications
- Commercial low-voltage sub-distribution systems.
- Industrial electrical distribution installations.
- Building-services distribution boards.
- Metering and distribution assemblies.
- ABB CombiLine-based switchgear configurations.
- Panel building and electrical control installations.
