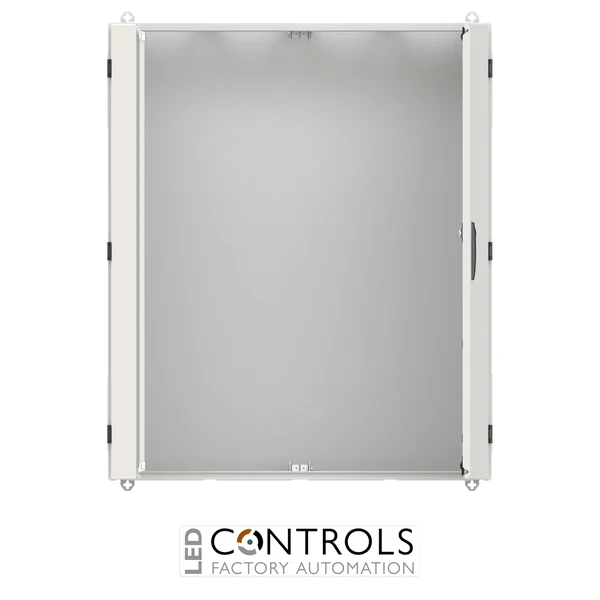

Why Choose the ABB TL408G TwinLine IP55 Wall-Mounted Enclosure?
The ABB TL408G is a robust TwinLine wall-mounted distribution enclosure designed for low-voltage electrical distribution and control applications. Manufactured as part of ABB’s TwinLine enclosure system, it provides a durable steel housing for distribution equipment, CombiLine modules, meter panels and other compatible installation components.
Designed for indoor wall-mounted installation, the TL408G combines a spacious enclosure format with IP55 protection and an IK08 impact-resistance rating. Its powder-coated sheet-steel construction and RAL 7035 finish provide a professional, durable enclosure solution for commercial, infrastructure and industrial electrical installations.
The enclosure measures 1250 mm high × 1050 mm wide × 275 mm deep and provides 384 space units. It is supplied with a double steel door and is prepared for installation with meter panels, distribution panels, combination sets, CombiLine modules or mounting plates using compatible EDF or WR mounting frameworks.
Key Advantages
- Robust ABB TwinLine wall-mounted enclosure for electrical distribution equipment.
- IP55 protection helps protect installed equipment against dust and water ingress.
- IK08 mechanical impact resistance for dependable installation in demanding environments.
- Large 1250 × 1050 × 275 mm enclosure dimensions.
- Provides 384 space units for flexible internal equipment configuration.

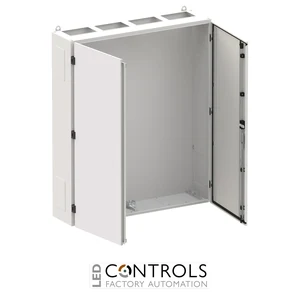

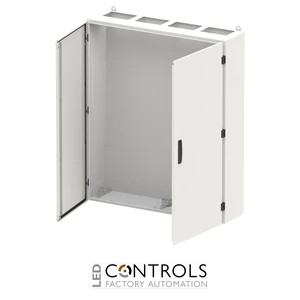

- Double-door design with a wide 180° opening angle for convenient installation and maintenance access.
Key Features
- ABB TwinLine series wall-mounted empty enclosure.
- IP55 degree of protection.
- IK08 impact-resistance rating.
- Protection Class I earthed construction.
- Powder-coated sheet-steel enclosure.
- RAL 7035 finish.
- Sheet-steel double doors.
- 180° door opening angle.
- Standard 3 mm double-bit locking system.
- Prepared for ABB meter panels, distribution panels, CombiLine modules and mounting plates.
Reliable Protection for Electrical Distribution Systems
Wall-mounted electrical enclosures provide a protected installation environment for distribution, metering and control equipment. The ABB TL408G uses a rigid sheet-steel construction together with IP55 ingress protection and IK08 impact resistance to help safeguard internal components during normal service.
The TwinLine system is designed around modular electrical distribution. The TL408G can accommodate compatible ABB distribution fields, meter fields, CombiLine modules, combination sets and mounting plates, allowing installers to configure the enclosure around the requirements of a specific low-voltage installation.
Typical Applications
- Low-voltage electrical distribution systems.
- Commercial and industrial distribution boards.
- Metering and sub-distribution installations.
- Building services electrical systems.
- Control and automation panels.
- ABB CombiLine modular distribution assemblies.
