Why Choose the ABB TL312G TwinLine-L Floor-Standing Cabinet?

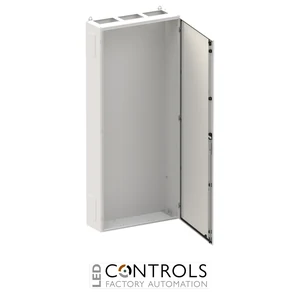

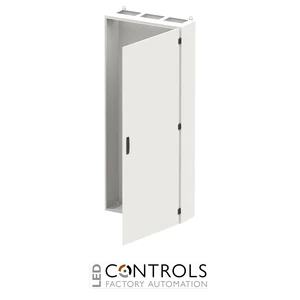

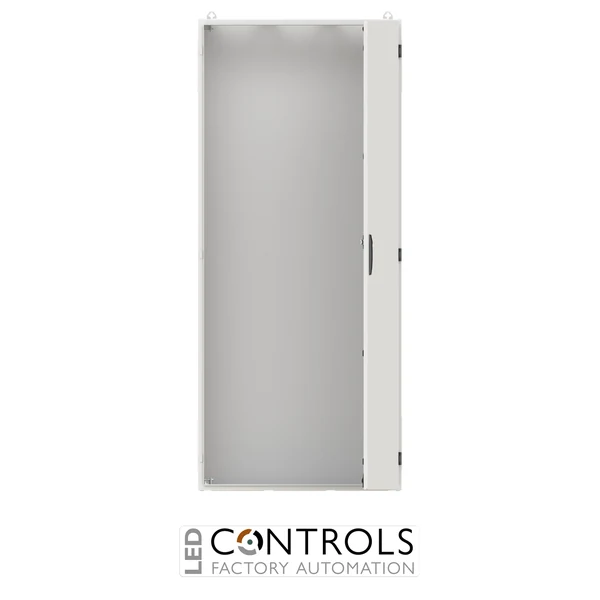

The ABB TL312G, order code 2CPX010102R9999, is a robust TwinLine-L floor-standing sub-distribution cabinet designed for indoor electrical distribution and control applications. Part of ABB’s TwinLine enclosure range, this empty sheet-steel cabinet provides a flexible platform for building low-voltage distribution assemblies in commercial and industrial installations.
The TL312G combines a spacious internal layout with IP55 environmental protection and IK08 mechanical impact resistance. Its powder-coated sheet-steel construction, single-leaf door and Class I earthed design provide dependable protection for electrical equipment while allowing flexible configuration with ABB distribution components, meter fields, CombiLine modules and mounting systems.
With external dimensions of 1850 mm high × 800 mm wide × 275 mm deep, the TL312G provides three field widths, 12 raster units and 432 space units. The cabinet is supplied with a door and is designed for floor-standing indoor installations where generous wiring and equipment space are required.
Key Advantages
- Heavy-duty TwinLine-L floor-standing distribution cabinet for commercial and industrial installations.
- IP55 protection against dust and water ingress.
- IK08 impact resistance for dependable mechanical protection.
- Large 1850 mm × 800 mm × 275 mm enclosure with three field widths.
- Flexible internal configuration for meter fields, distribution fields, CombiLine modules and mounting plates.
- Reversible single-leaf door with a wide 180° opening angle for convenient access.
Key Features
- ABB TwinLine-L series floor-standing empty cabinet.
- IP55 protection rating for indoor electrical installations.
- IK08 mechanical impact protection.
- Class I earthed construction.
- Sheet-steel enclosure and door with RAL 7035 powder-coated finish.
- Single-leaf sheet-steel door with standard 3 mm double-bit lock.
- 180° door opening angle with left- or right-hand hinging.
- Top, bottom and side flange provisions for flexible cable entry.
- Prepared for ABB meter fields, distribution fields, combination sets, CombiLine modules and mounting plates.
Flexible Enclosure for Electrical Distribution Systems
ABB TwinLine cabinets provide a modular enclosure platform for configuring electrical distribution systems in commercial and industrial buildings. The TL312G offers substantial internal space for protective devices, metering equipment, distribution components and associated wiring while its steel construction protects installed equipment from environmental and mechanical influences.
The cabinet is prepared for installation with ABB meter and distribution fields, combination sets, CombiLine modules or mounting plates on compatible EDF and WR mounting structures. Cable entry provisions at the top, bottom and sides support flexible routing when integrating the enclosure into larger electrical installations.
Typical Applications
- Commercial building electrical distribution systems.
- Industrial low-voltage distribution installations.
- Floor-standing sub-distribution boards.
- Metering and electrical distribution assemblies.
- Control and automation equipment enclosures.
- ABB CombiLine modular distribution systems.
