Why Choose the ABB TL412G IP55 Floor-Standing Sub-Distribution Enclosure?
The ABB TL412G is a robust IP55 TwinLine floor-standing sub-distribution enclosure designed to house electrical distribution, metering, protection and control equipment in professional low-voltage installations. As part of the ABB TwinLine enclosure system, it provides substantial installation capacity for larger commercial and industrial distribution assemblies.

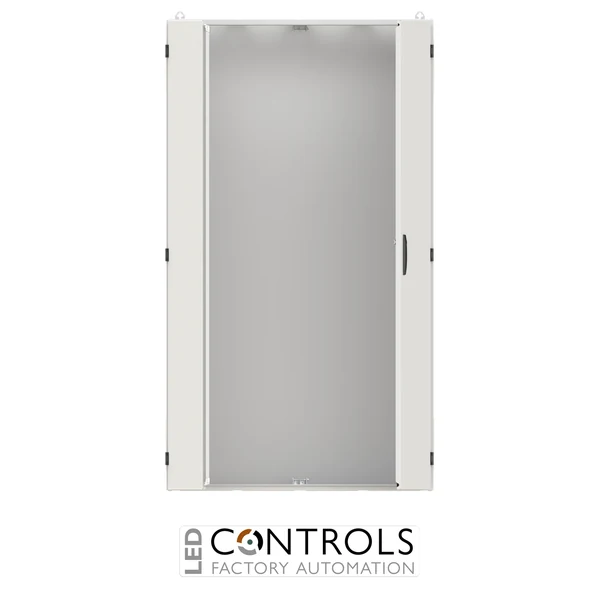

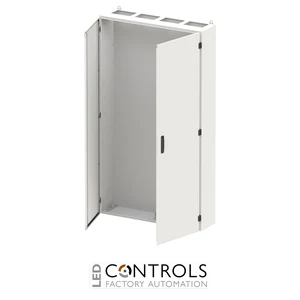

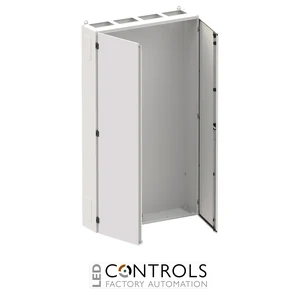

This empty cabinet is manufactured from sheet steel, powder-coated in RAL 7035 and equipped with double doors. It provides Class I earthed protection, an IP55 degree of protection and IK08 impact resistance, making it a durable enclosure for indoor electrical installations where dependable mechanical and environmental protection is required.
With dimensions of 1050 mm wide × 1850 mm high × 275 mm deep, the TL412G has four field widths, 12 grid units and 576 space units. ABB order code 2CPX010103R9999 identifies this specific TwinLine floor-standing enclosure within the DESUJ Sub Distribution product group.
Key Advantages
- Robust IP55 floor-standing enclosure for sub-distribution applications.
- Large 1050 mm wide × 1850 mm high cabinet format for substantial electrical assemblies.
- 275 mm cabinet depth provides generous installation space.
- 576 space units provide extensive capacity for modular equipment.
- Durable sheet-steel construction with RAL 7035 powder-coated finish.
- Double-door design with 180° opening angle supports convenient access during installation and maintenance.
Key Features
- ABB TwinLine TL412G floor-standing cabinet.
- IP55 degree of protection.
- Class I earthed protection.
- IK08 impact resistance.
- 1850 mm enclosure height.
- 1050 mm enclosure width.
- 275 mm enclosure depth.
- 576 space units with four field widths and 12 grid units.
- Sheet-steel enclosure and double doors with RAL 7035 powder-coated finish.
- Standard double-bit locking mechanism and 180° door opening angle.
- Prepared for installation of metering fields, distribution fields, Combi-Sets, CombiLine modules and mounting plates.
Reliable Housing for Electrical Distribution Systems
Floor-standing sub-distribution enclosures such as the ABB TL412G provide a structured and protected installation space for larger low-voltage electrical assemblies. Its IP55 enclosure protection, IK08 impact resistance and earthed Class I construction help protect installed equipment while supporting dependable operation in professional indoor electrical installations.
The TwinLine system provides a flexible platform for electrical distribution projects. The TL412G is prepared for configurations incorporating metering fields, distribution fields, Combi-Sets, CombiLine modules and mounting plates on EDF/WR mounting frames, while top, bottom and side flange openings support practical cable routing into the cabinet.
Typical Applications
- Commercial and industrial sub-distribution boards.
- Low-voltage electrical distribution assemblies.
- Metering and distribution installations.
- Building services electrical systems.
- Industrial control and protection installations.
- CombiLine modular distribution systems.
