Why Choose the ABB TL512G IP55 Floor-Standing Sub-Distribution Enclosure?
The ABB TL512G is a large-capacity IP55 TwinLine floor-standing sub-distribution enclosure designed to house electrical distribution, metering, protection and control equipment in professional low-voltage installations. As part of the ABB TwinLine enclosure system, it provides extensive installation space for substantial commercial, infrastructure and industrial distribution assemblies.

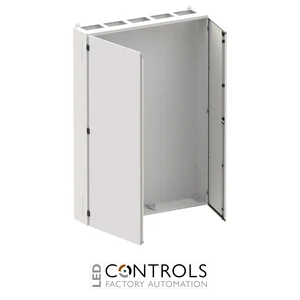

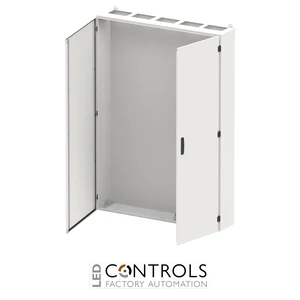

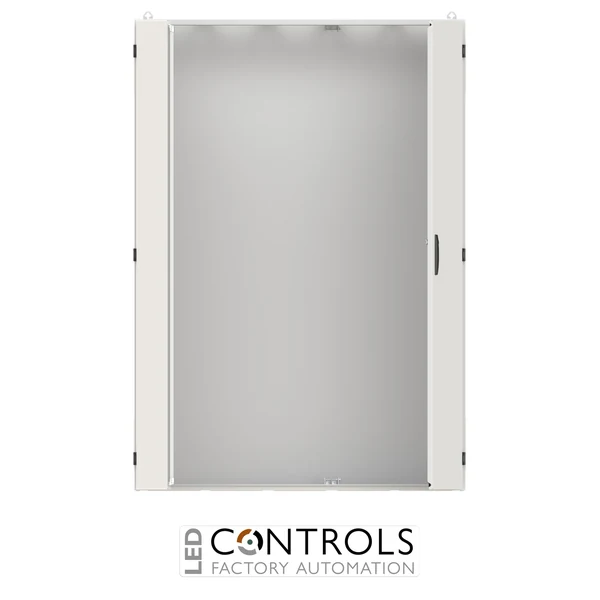

This empty cabinet is manufactured from sheet steel with a powder-coated RAL 7035 finish and features a double-door configuration. Its Class I earthed construction, IP55 degree of protection and IK08 impact resistance provide a robust platform for indoor electrical installations requiring dependable environmental and mechanical protection.
With dimensions of 1300 mm wide × 1850 mm high × 275 mm deep, the TL512G provides 720 space units across five field widths and 12 grid units. ABB order code 2CPX010104R9999 identifies this specific TwinLine floor-standing enclosure within the DESUJ Sub Distribution product group.
Key Advantages
- Large-capacity IP55 floor-standing enclosure for sub-distribution applications.
- Generous 1300 mm wide × 1850 mm high cabinet format for substantial electrical assemblies.
- 275 mm enclosure depth provides extensive installation space.
- 720 space units support high-capacity modular distribution layouts.
- Durable sheet-steel construction with RAL 7035 powder-coated finish.
- Double-door design with 180° opening angle provides convenient access for installation and maintenance.
Key Features
- ABB TwinLine TL512G floor-standing cabinet.
- IP55 degree of protection.
- Class I earthed protection.
- IK08 impact resistance.
- 1850 mm enclosure height.
- 1300 mm enclosure width.
- 275 mm enclosure depth.
- 720 space units with five field widths and 12 grid units.
- Sheet-steel enclosure with RAL 7035 powder-coated finish.
- Double doors with right and left hinges and a 180° opening angle.
- Standard double-bit locking mechanism.
- Prepared for metering fields, distribution modules, Combi-Sets, CombiLine modules and mounting plates.
Reliable Housing for Electrical Distribution Systems
Floor-standing sub-distribution enclosures such as the ABB TL512G provide a structured and protected installation space for extensive low-voltage electrical assemblies. Its IP55 enclosure protection, IK08 impact resistance and Class I earthed construction help safeguard installed equipment while supporting reliable operation in professional indoor electrical installations.
The TwinLine system provides a flexible platform for larger electrical distribution projects. The TL512G is prepared for configurations incorporating metering and distribution fields, Combi-Sets, CombiLine modules and mounting plates on EDF/WR mounting frames, while flange openings at the top, bottom and sides support practical cable entry and system integration.
Typical Applications
- Large commercial and industrial sub-distribution boards.
- Low-voltage electrical distribution assemblies.
- Metering and distribution installations.
- Building services and infrastructure electrical systems.
- Industrial control and protection installations.
- CombiLine modular distribution systems.
